Cylinder Head Removal Note
WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.
- Temporarily install the No. 3 engine mount bracket and No. 3 engine mount rubber to support the engine.

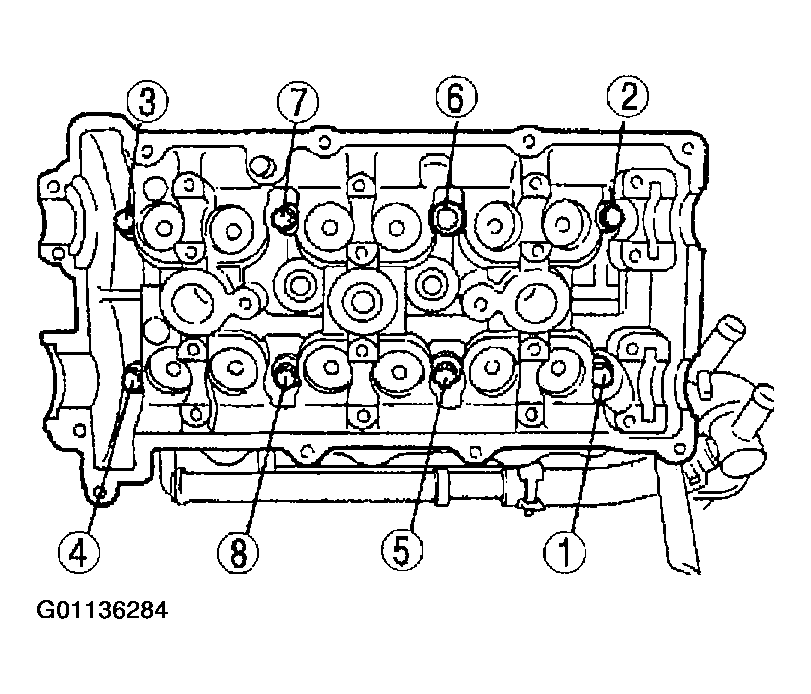

- Loosen the cylinder head bolts in two or three steps in the order shown.
Courtesy of MAZDA MOTORS CORP.
