Cylinder Head Gasket Installation Note

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

Install new cylinder head gaskets on the cylinder block. (R mark for RH, L mark for LH)

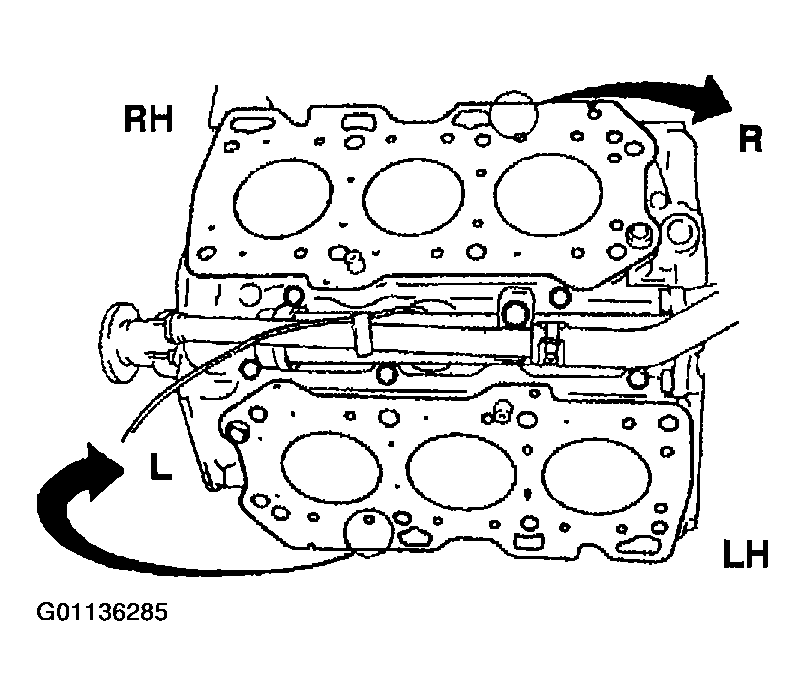

Fig 1: Installing Cylinder Head Gasket
Courtesy of MAZDA MOTORS CORP.
