Cylinder Head Cover Installation Note

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

Verify that the grooves on the cylinder head cover are free of oil, water and other foreign material.
Install a new cylinder head cover gasket into the cylinder head cover.
Apply silicone sealant as shown.
Thickness

1.5-2.5 mm {0.060-0.098 in}

RH

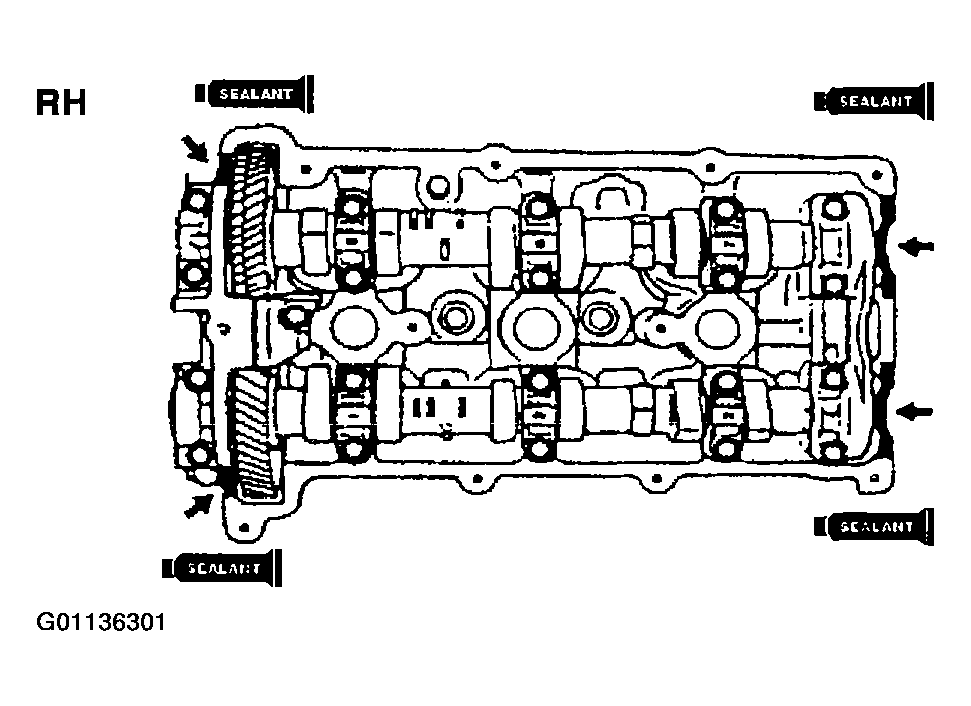

Fig 1: Identifying Silicone Sealant Application Areas - Right Side
Courtesy of MAZDA MOTORS CORP.

LH

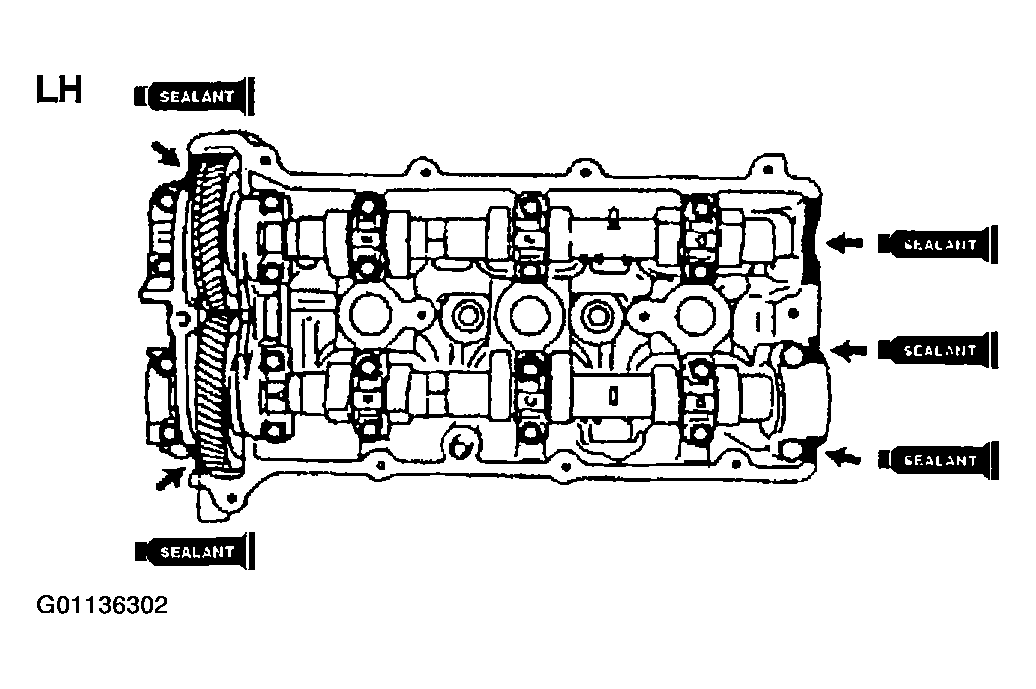

Fig 2: Identifying Silicone Sealant Application Areas - Left Side
Courtesy of MAZDA MOTORS CORP.
Install the cylinder head cover and tighten the bolts gradually in two or three steps in the order shown.
Retighten cylinder head cover bolts RH No. 5 and 6, LH No. 6 and 7.
RH

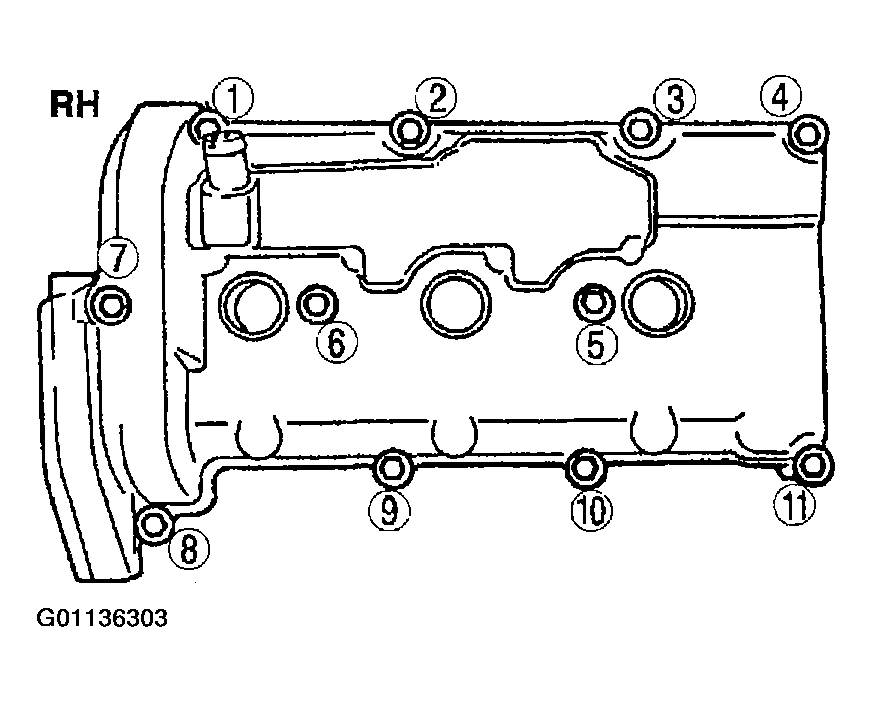

Fig 3: Cylinder Head Cover Bolts Tightening Sequence - Right Side
Courtesy of MAZDA MOTORS CORP.

LH

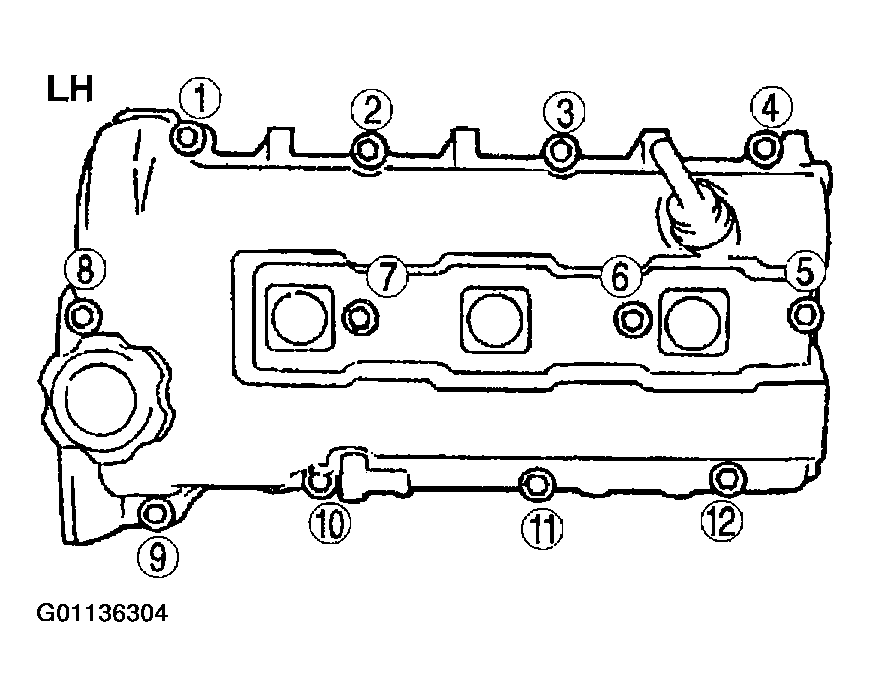

Fig 4: Cylinder Head Cover Bolts Tightening Sequence - Left Side
Courtesy of MAZDA MOTORS CORP.
