Water Pump Drive Belt Pulley Removal Note

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Replace part A of the SST (303-009) with the SST (303-457) .

Fig 1: Assembling SST
Courtesy of MAZDA MOTORS CORP.
Remove the water pump pulley using the SSTs .

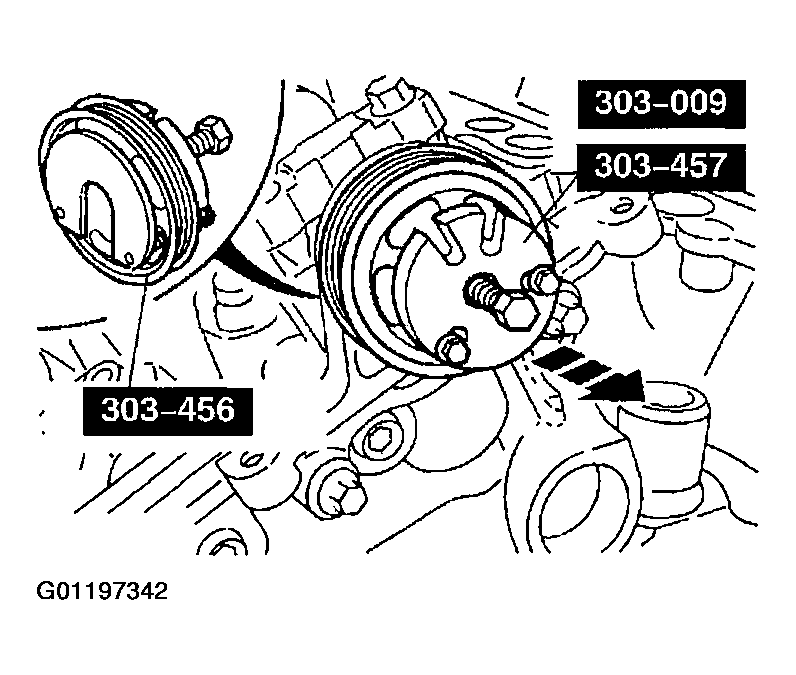

Fig 2: Removing Water Pump Pulley
Courtesy of MAZDA MOTORS CORP.
