Cylinder Head Cover (LH) Removal Note

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cylinder head cover bolts in the order shown.

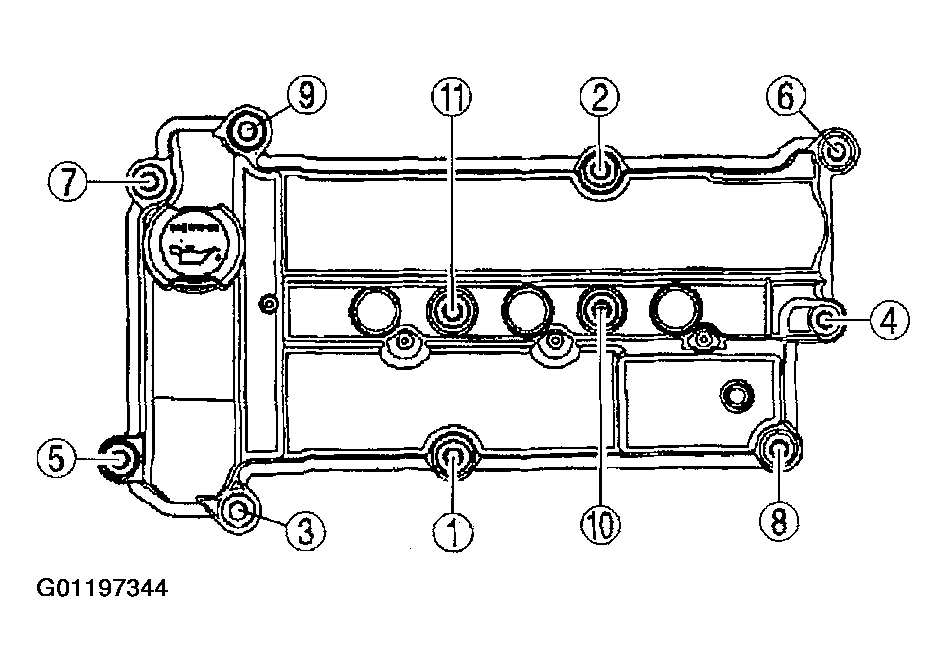

    Fig 1: Cylinder Head Cover Bolt Removal Sequence (LH)
    G01197344Courtesy of MAZDA MOTORS CORP.
