Camshaft Oil Seal Installation Note

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply clean engine oil to the camshaft oil seal.
  2. Install the camshaft oil seal using the SSTs  .

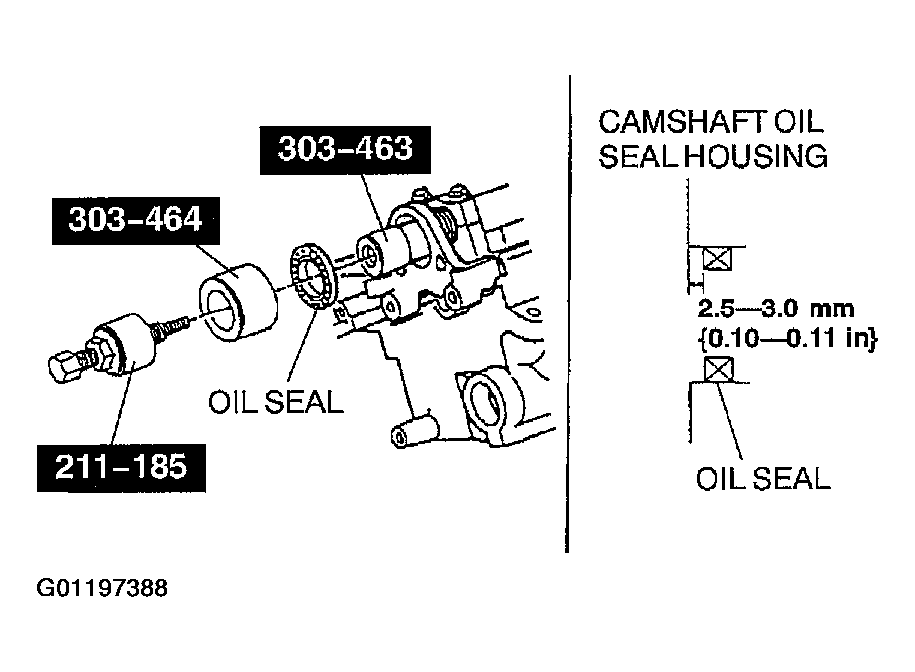

    Fig 1: Installing Camshaft Oil Seal
    G01197388Courtesy of MAZDA MOTORS CORP.
