Rear Oil Seal Replacement

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the automatic transaxle. (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION .)
  2. Remove the drive plate. (See DRIVE PLATE REMOVAL/INSTALLATION .)
  3. Cut the oil seal lip using a razor knife.
  4. Remove the rear oil seal using a screwdriver as shown.

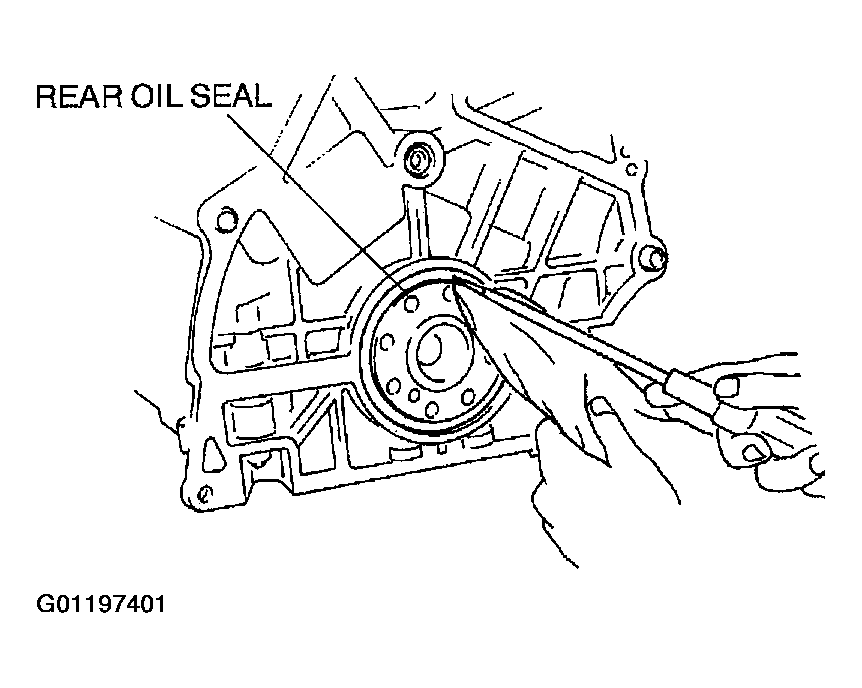

    Fig 1: Removing Rear Oil Seal
    G01197401Courtesy of MAZDA MOTORS CORP.
  5. Install the rear oil seal with part A of the SST (49 UN01 070)  and the SST (303-384)  .
    Fig 2: Assembling SST Components
    G01197402Courtesy of MAZDA MOTORS CORP.
  6. Install the studs of the SST (303-384)  as indicated in the figure.
    Fig 3: Installing SST Studs
    G01197403Courtesy of MAZDA MOTORS CORP.
  7. Apply clean engine oil to the oil seal.
  8. Push the oil seal slightly in by hand.

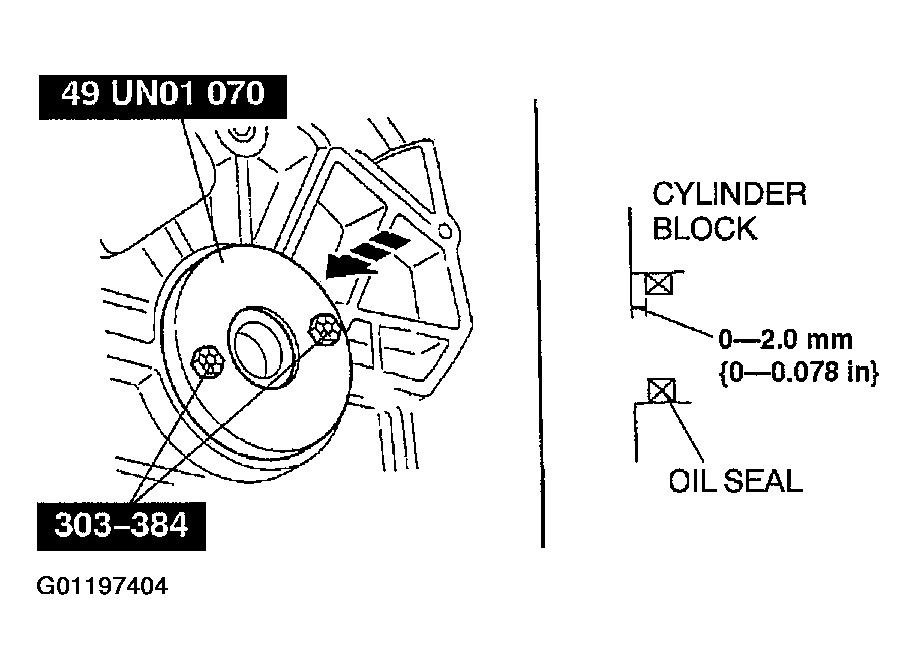

    Fig 4: Installing Rear Oil Seal
    G01197404Courtesy of MAZDA MOTORS CORP.
  9. Install part A of the SST (49 UN01 070)  and compress the oil seal with the nuts of the SST (303-384)  .
  10. Install the drive plate. (See DRIVE PLATE REMOVAL/INSTALLATION .)
  11. Install the automatic transaxle. (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION .)
