No.3 Engine Mount Nut Installation Note
WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

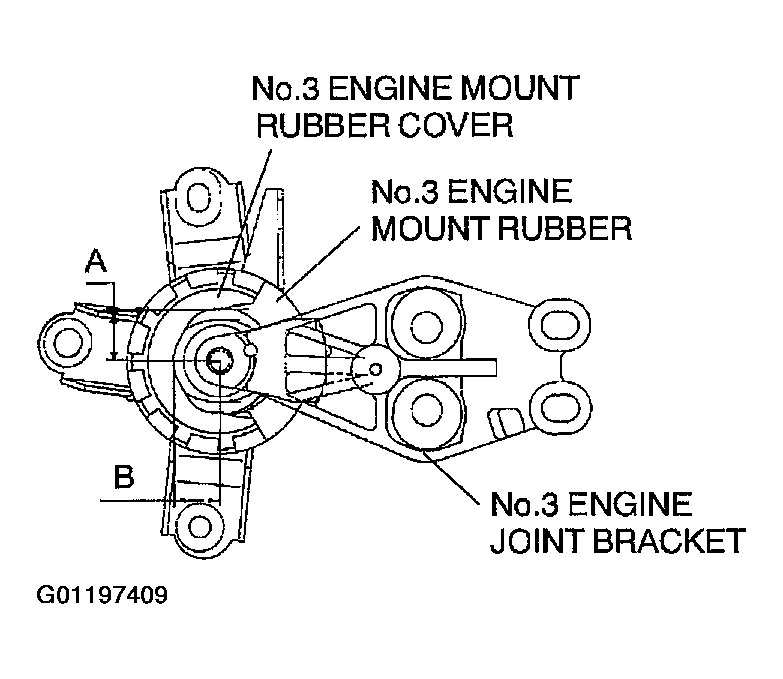

- Install all engine mounts and verify that clearances A and B of the No.3 engine joint bracket are within the specifications.
- If not as specified, reassemble the engine mounts, according to the following procedure.
CAUTION:- If the clearances A and B of the No.3 engine joint bracket are out of specifications, engine vibration and noise can increase. Make sure that the clearances are within the specifications.
Specifications
- A: 23.5-26.5 mm {0.926-1.04 in}
- B: 19.5-22.5 mm {0.768-0.885 in}
- Remove the No.3 joint bracket. (See ENGINE MOUNT MEMBER REMOVAL NOTE .)
- Loosen the No.1 and No.4 engine mount through bolts.
- Before tightening the No.1 and No.4 engine mount through bolts to fix the engine, position the engine so that the clearances A and B of the No.3 joint bracket are approximately within the specifications.NOTE:

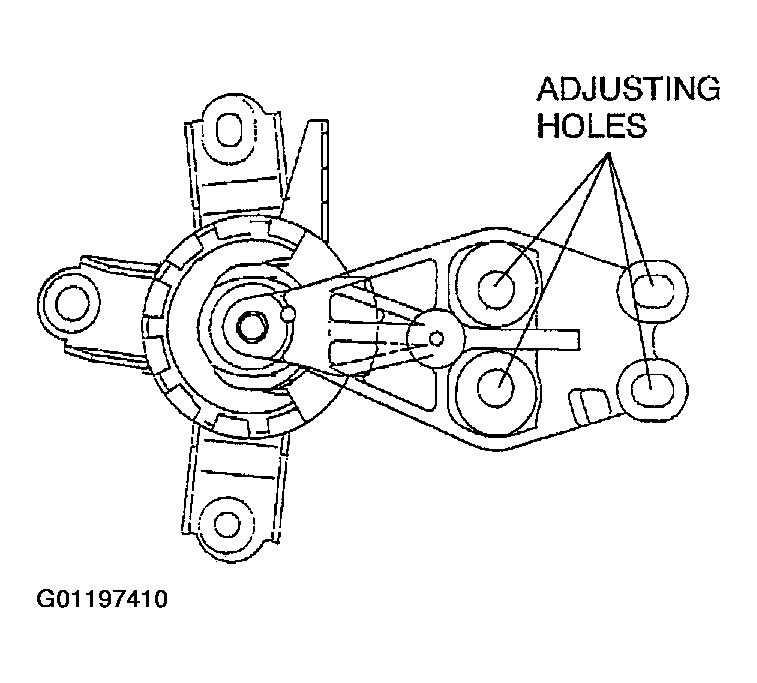

- Slight displacement can be adjusted with the adjusting holes of the No.3 engine joint bracket.
- Tighten the No.1 and No.4 engine mount through bolts.
- Install the No.3 engine joint bracket so that clearances A and B are within the specifications.
