Front Drive Belt Auto TENSIONER

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front drive belt. (See FRONT DRIVE BELT .)
  2. Verify that the drive belt auto tensioner moves smoothly in the operational direction.
    • Replace the drive belt auto tensioner if necessary.

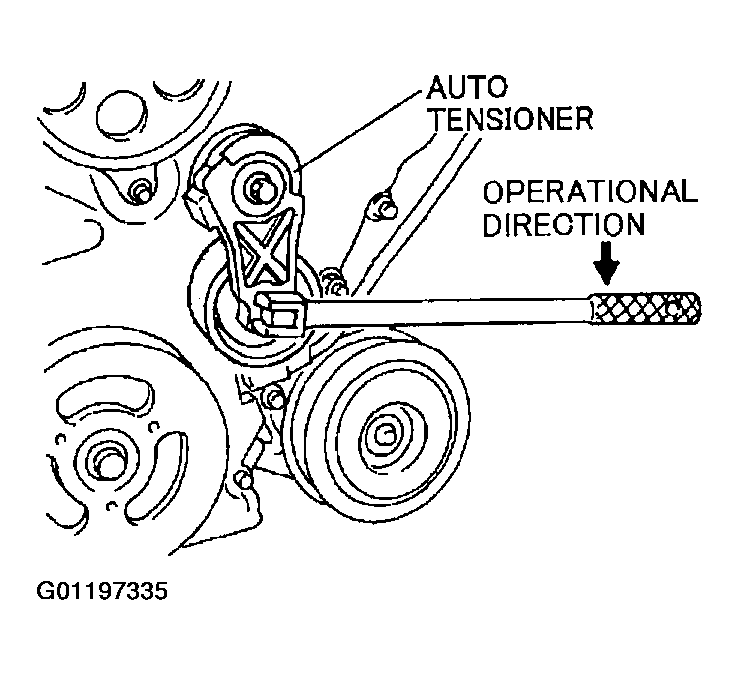

      • Fig 1: Checking Drive Belt Tensioner For Smooth Operation
      G01197335Courtesy of MAZDA MOTORS CORP.
  3. Turn the drive belt auto tensioner pulley by hand and verify that it rotates smoothly.
    • Replace the drive belt auto tensioner if necessary.

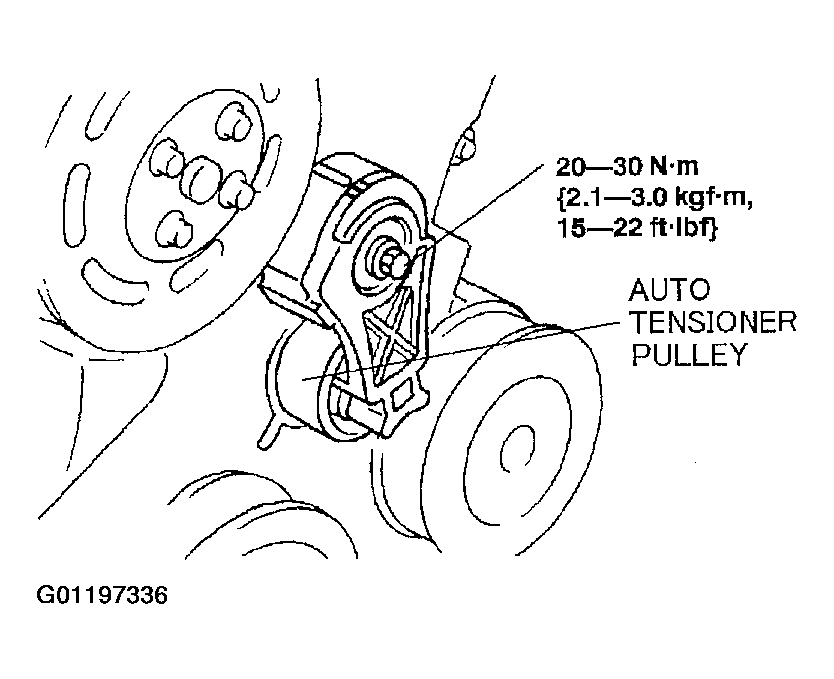

    Fig 2: Replacing Drive Belt Tensioner
    G01197336Courtesy of MAZDA MOTORS CORP.
  4. Install the drive belt.
