Removal & Installation: Installation

WARNING: This page does not describe the selected car, but rather 20 other vehicles, including the 2003 Mazda Protege5, 2003 Mazda Protege, 2002 Mazda Protege5, 2002 Mazda Protege, and 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ensure all timing marks are aligned. See Fig 2.
  2. Install timing belt around crankshaft sprocket, water pump sprocket, idler pulley, and camshaft sprockets. Ensure slack does not exist on idler pulley side of timing belt.

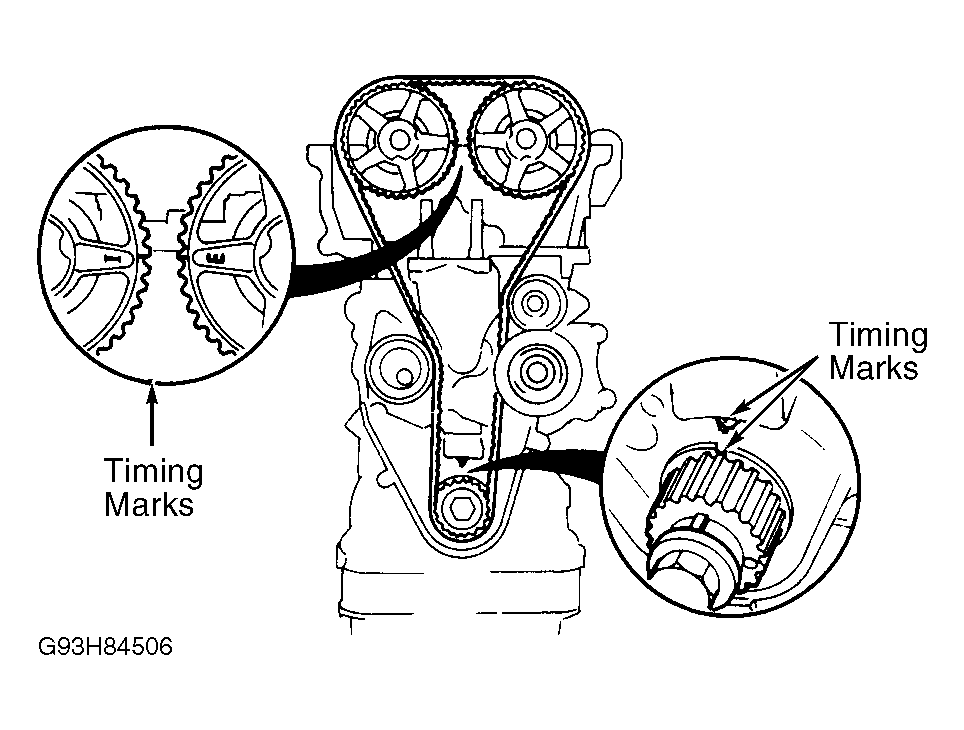

  3. Complete timing belt installation on slack (tensioner) side. With tensioner spring removed, allow tensioner to ride against timing belt. Turn crankshaft 2 revolutions in normal direction of rotation (clockwise). Ensure camshaft and crankshaft timing marks are still correctly aligned. See Figure. If not correctly aligned, timing belt will have to be removed and repositioned.
  4. If all timing marks are okay, turn tensioner clockwise using an Allen wrench. Connect tensioner spring to pin on engine block. See Fig 3. Turn crankshaft 2 revolutions. Ensure camshaft and crankshaft timing marks are still aligned. See Figure.
  5. To install remaining components, reverse removal procedure. When installing valve cover gasket, apply small amount of silicone sealer to 4 corners of gasket where the front of both camshafts go through cylinder head. See Fig 4. Tighten valve cover bolts to specification in correct sequence. See Fig 5. Adjust drive belts to proper tension.
  6. Inspect crankshaft position sensor air gap. Air gap between outer edge of crankshaft pulley rotor tooth and center of CKP sensor should be 0.029-0.059" (0.5-1.5 mm). See Fig 6. Air gap is not adjustable. If gap is incorrect, check for damaged parts.
Fig 1: Measuring Tensioner Spring Free Length
G00274610Courtesy of MAZDA MOTORS CORP.

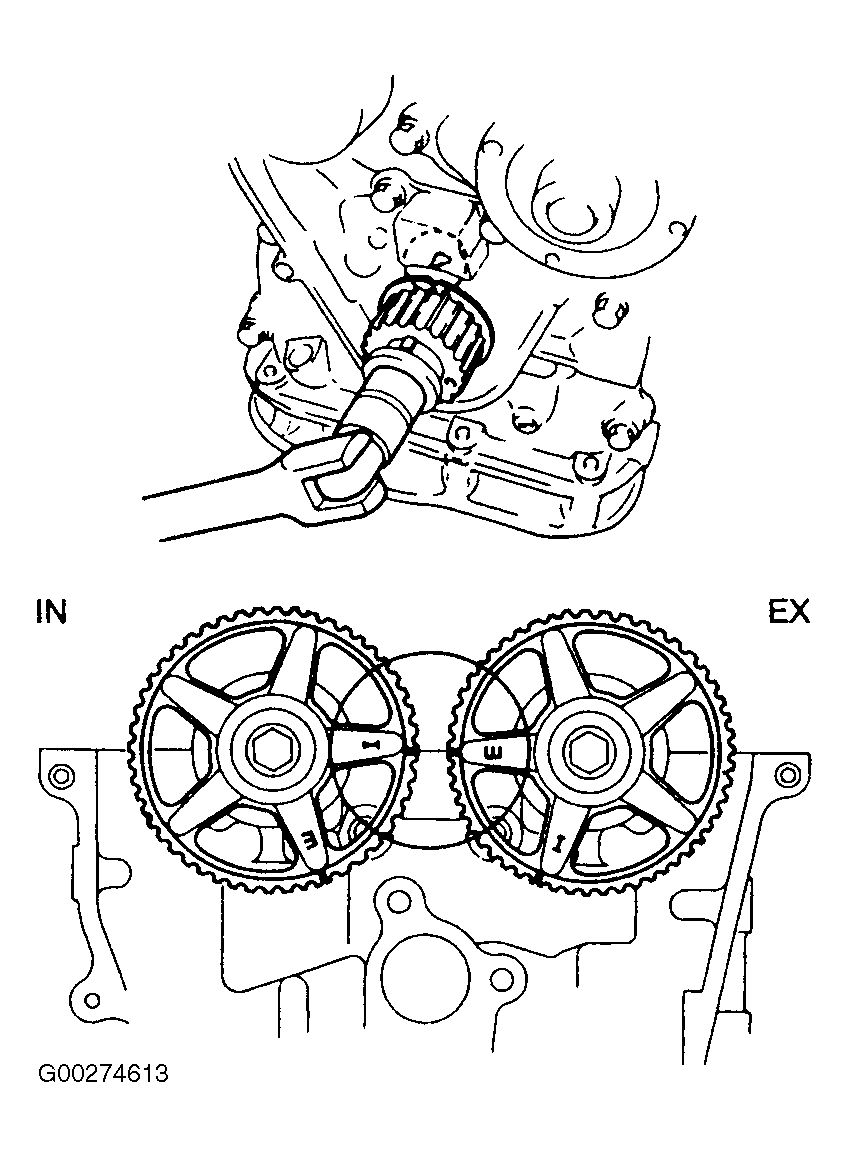

Fig 2: Aligning Crankshaft & Camshaft Timing Marks
G00274613Courtesy of MAZDA MOTORS CORP.

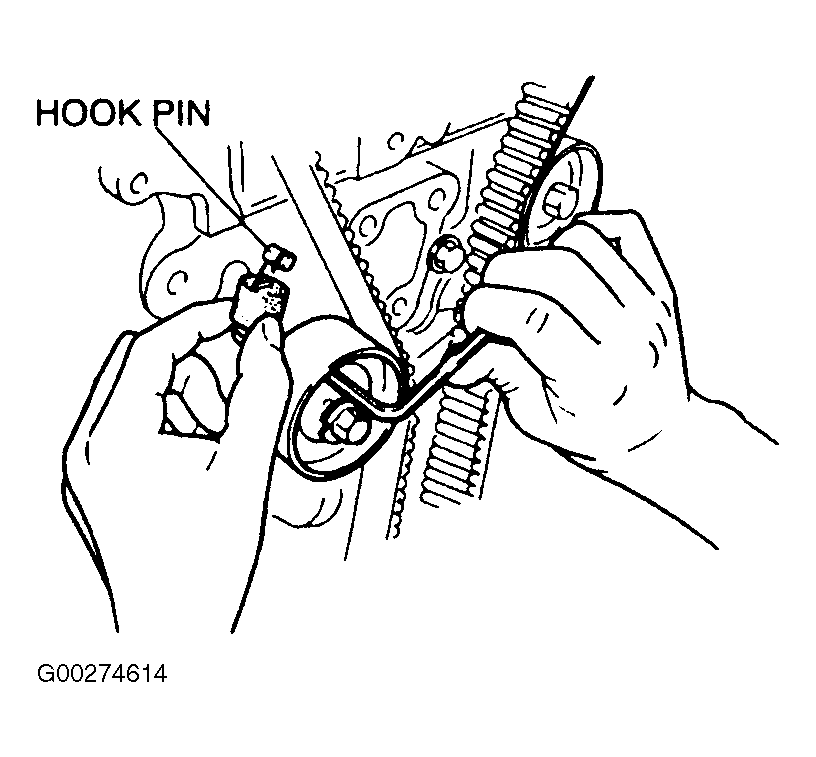

Fig 3: Installing Tensioner Spring To Hook Pin
G00274614Courtesy of MAZDA MOTORS CORP.

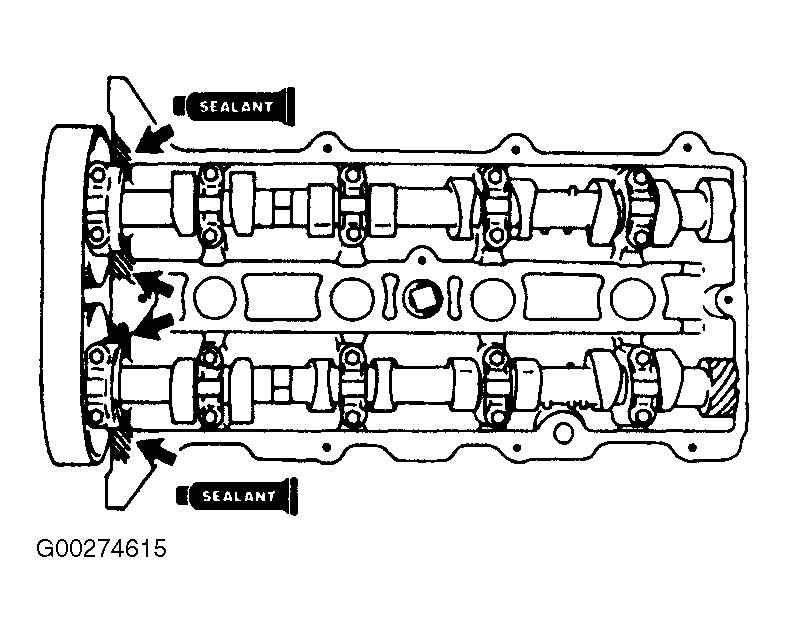

Fig 4: Identifying Sealant Locations
G00274615Courtesy of MAZDA MOTORS CORP.

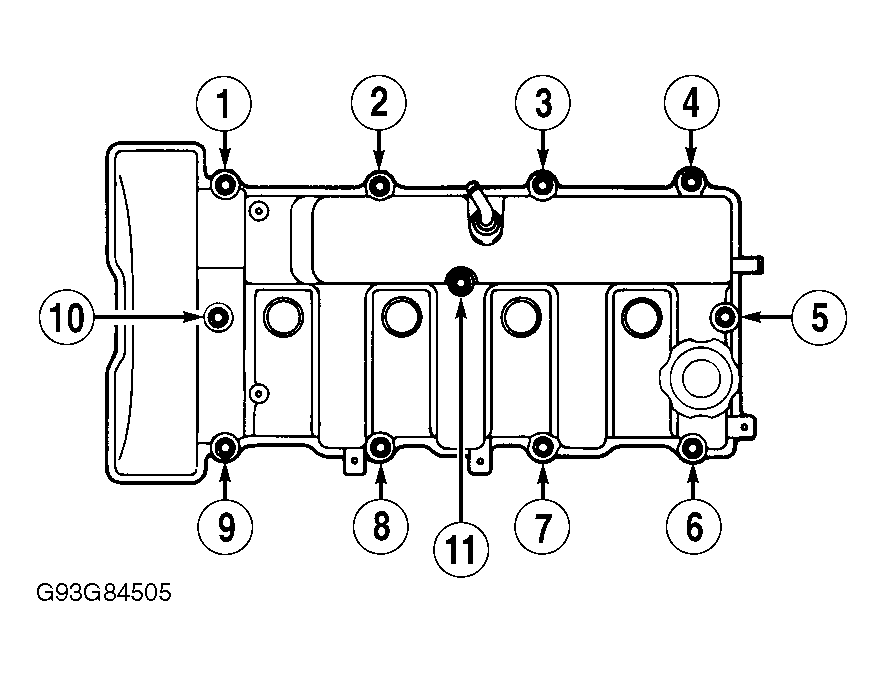

Fig 5: Identifying Valve Cover Bolt Tightening Sequence
G93G84505Courtesy of MAZDA MOTORS CORP.

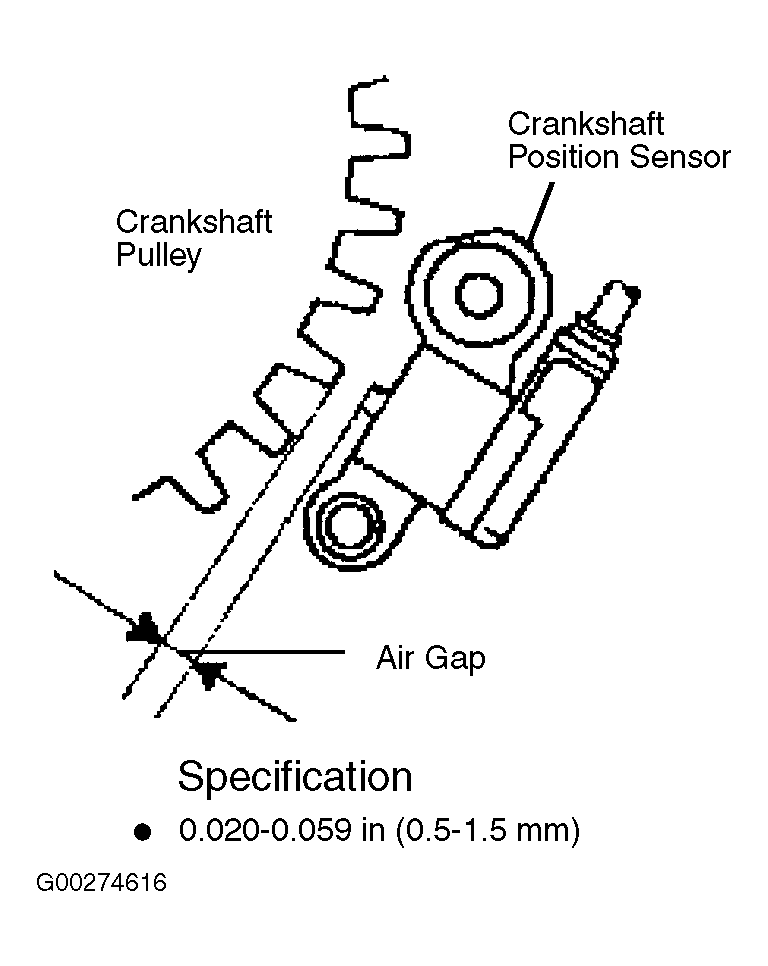

Fig 6: Measuring Crankshaft Position Sensor-To-Crankshaft Pulley Air Gap
G00274616Courtesy of MAZDA MOTORS CORP.
