Removal & Installation
WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

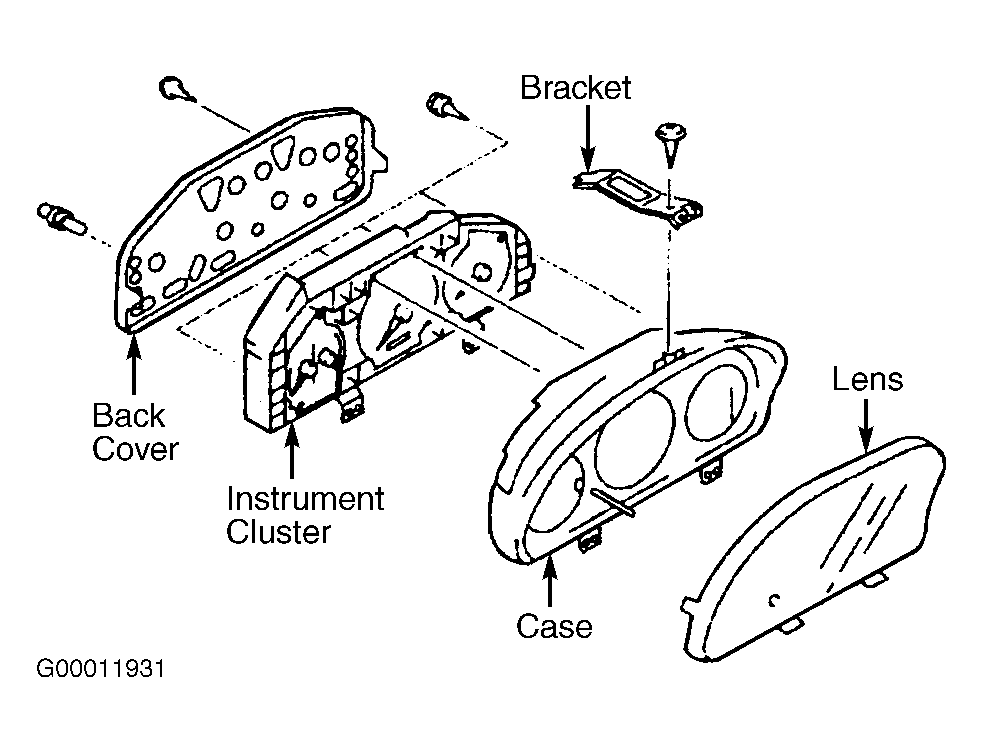

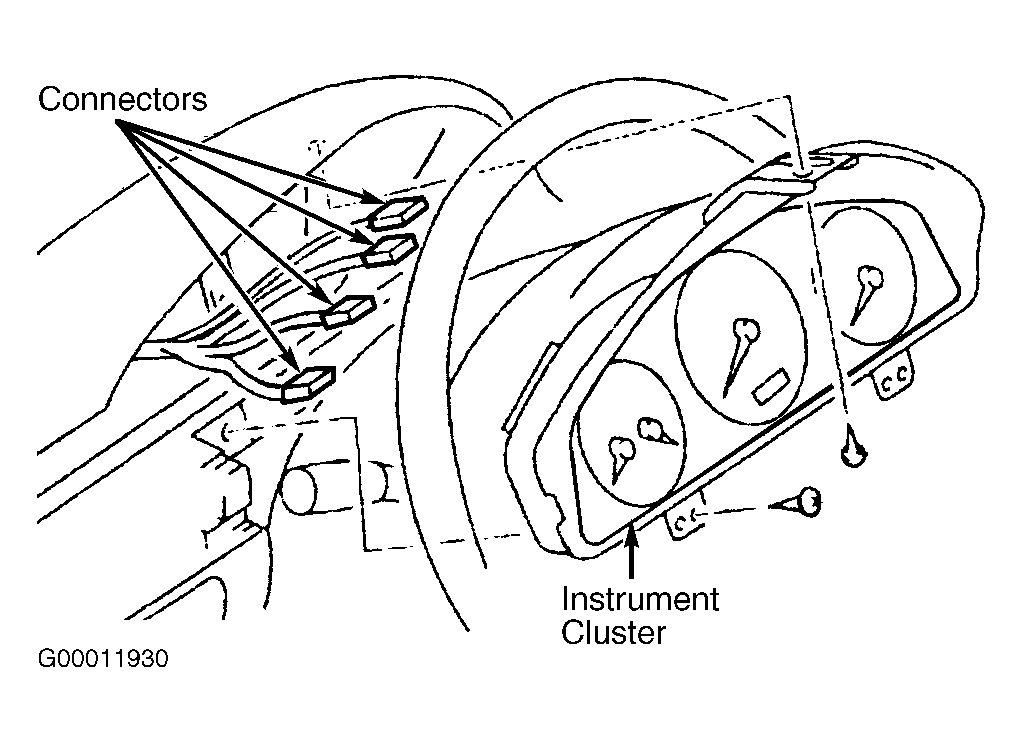

Disconnect negative battery cable. Pull down tilt steering wheel adjustment lever and push steering wheel down to its lowest point of travel. Remove instrument cluster hood. Place gear selector lever in "D" position. Remove instrument cluster retaining screws. Disconnect instrument cluster electrical connectors. See Fig 1 and Fig 2 . Remove instrument cluster.
