Ignition Switch Inspection

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ignition switch connectors.
Inspect for continuity between the ignition switch terminals using an ohmmeter.
- If not as specified, replace the ignition switch.

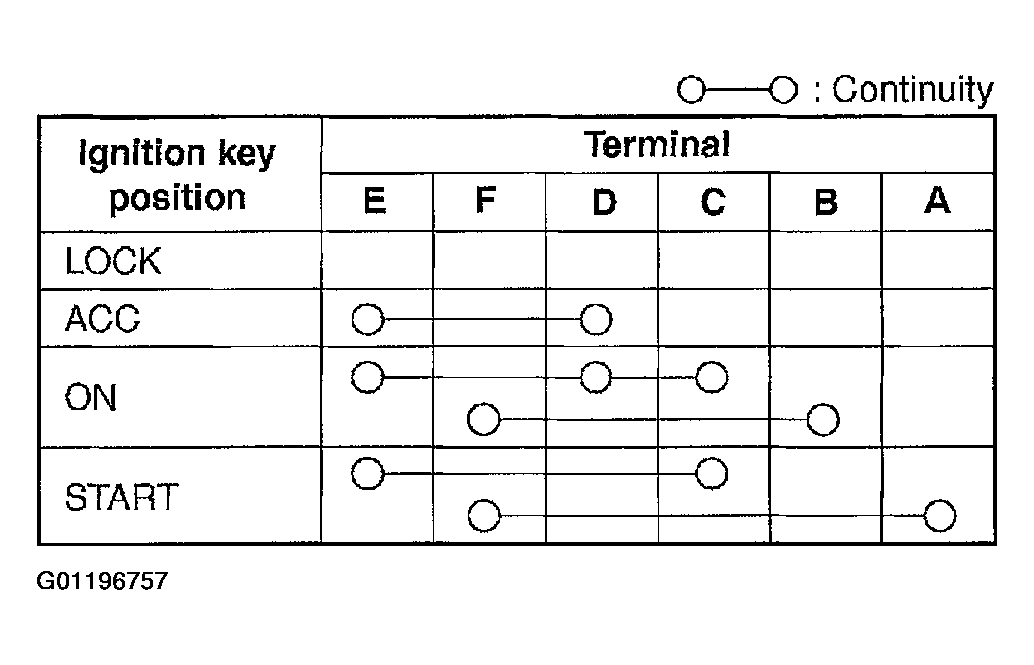

Fig 1: Inspecting Ignition Switch Continuity

Courtesy of MAZDA MOTORS CORP.

Fig 2: Identifying Ignition Switch Terminals

Courtesy of MAZDA MOTORS CORP.
