Front Door Lock And Opener

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Close the front door glass completely.
  2. Disconnect the negative battery cable.
  3. Remove the front door trim. See FRONT DOOR TRIM  .
  4. Remove in the order indicated in the illustration.
  5. Install in the reverse order of removal.

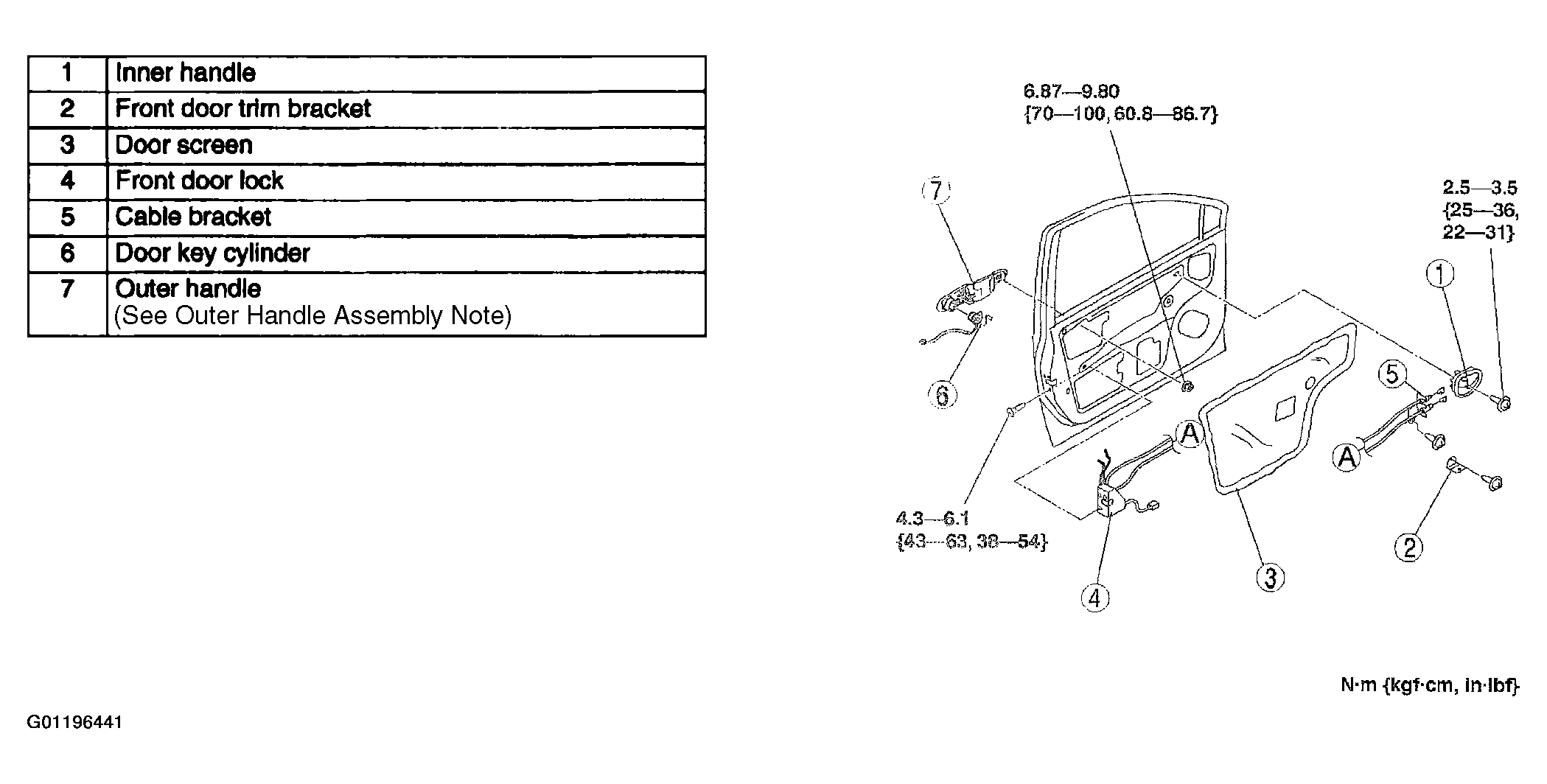

Fig 1: Removing Front Door Lock And Opener
G01196441Courtesy of MAZDA MOTORS CORP.
