Removal & Installation: Coil: Notes

WARNING: This page is about a different car, the 2002 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Do not remove the coil unless you are replacing it.
  • When only the coil is replaced, the immobilizer system reprogram procedure is not necessary.
  1. Disconnect the negative battery cable.
  2. Remove the column cover.
  3. Remove in the order indicated in the illustration.
  4. Install in the reverse order of removal.

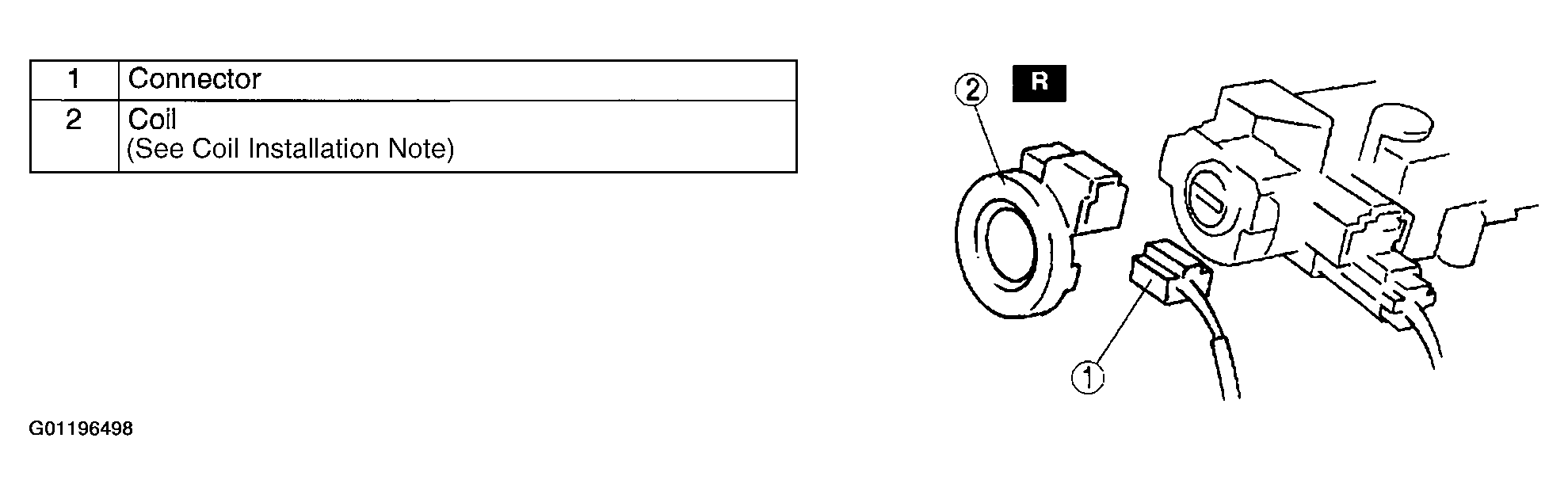

Fig 1: Removing Coil
G01196498Courtesy of MAZDA MOTORS CORP.
