Horn Switch Removal / Installation

WARNING: This page is about a different car, the 2002 Mazda B4000, 2002 Mazda B3000, and 2002 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.

Remove the driver-side air bag module. See DRIVER-SIDE AIR BAG MODULE .
Disconnect the horn wire from the switches (1).
Remove the horn switch screws and remove the switches (2).

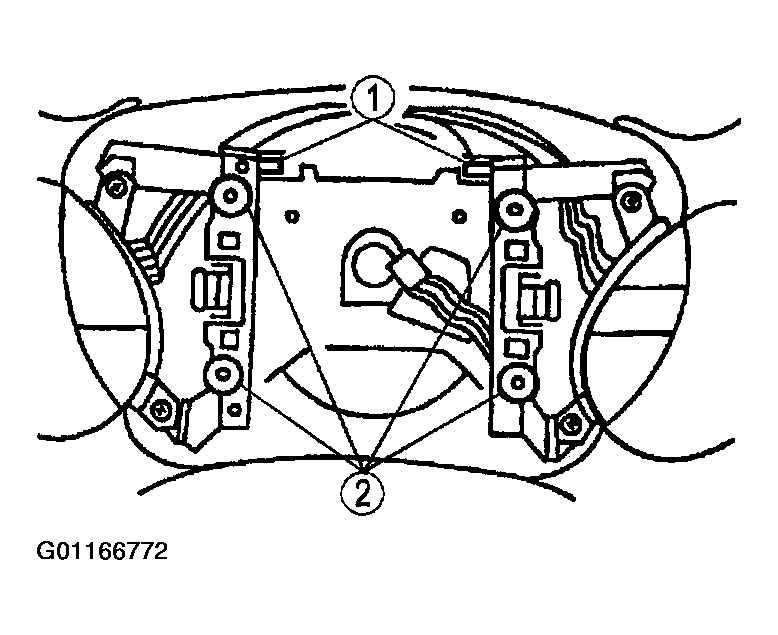

Fig 1: Idnetifying Horn Wire & Switches

Courtesy of MAZDA MOTORS CORP.

Install in the reverse order of removal.
1. Tightening Torque
2. 6.5-7.5 N.m {66-76 kgf.cm, 58-66 in.lbf}
Prove out the air bag system. See SYSTEM OPERATION CHECK .
