Test No. 18: Brake System Warning Light Does Not Illuminate With Brake Fluid Below Minimum
WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

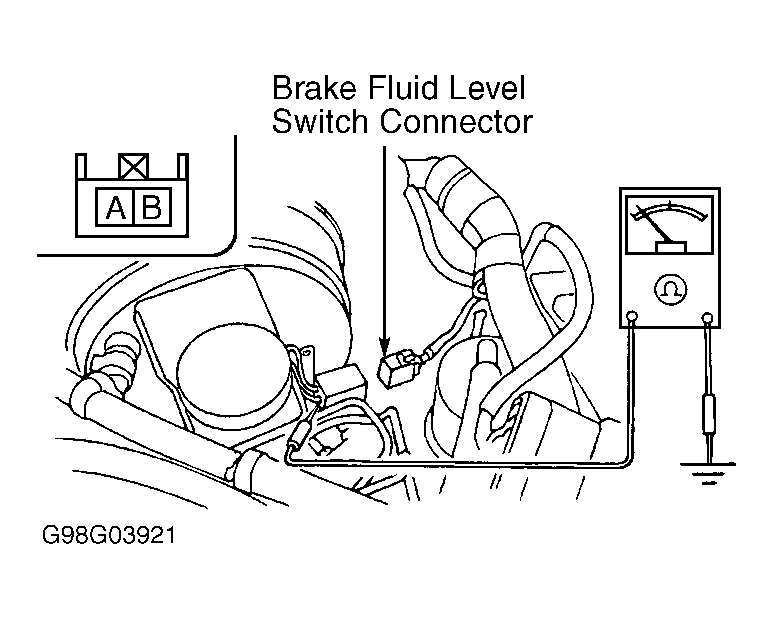

- Disconnect brake fluid level sensor connector. Check for continuity between ground and brake fluid level sensor connector terminal "B". See Fig 1 . Turn ignition switch to ON position. If brake system warning light illuminates, go to next step. If brake system warning light does not illuminate, repair wiring between instrument cluster and brake fluid level sensor.
- Check for continuity between ground and brake fluid level sensor connector terminal "A". If continuity exists, replace brake fluid level sensor. If continuity does not exist, repair wiring between ground and brake fluid level sensor.
