Removal & Installation
WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

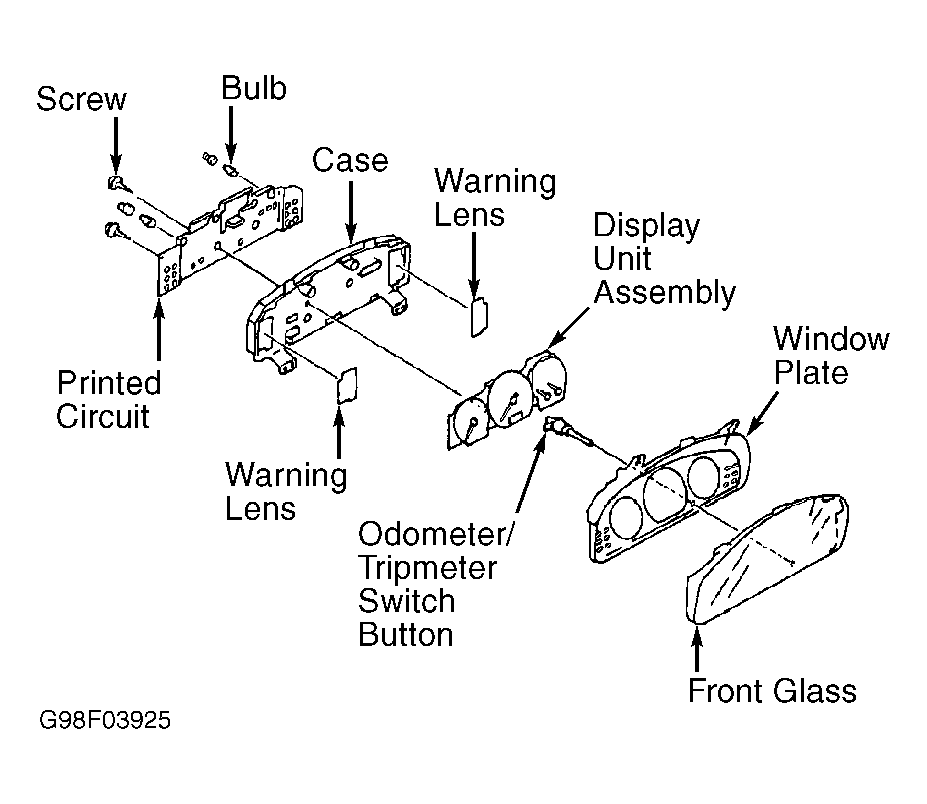

Remove instrument cluster. See INSTRUMENT CLUSTER . Remove screws from back of instrument cluster. Disassemble instrument cluster. See Fig 1 . Remove printed circuit. To reassemble instrument cluster, reverse disassembly procedure.
