Fuel Gauge Sending Unit Test

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Relieve fuel pressure before servicing fuel system. See BASIC DIAGNOSTIC PROCEDURES in ENGINE PERFORMANCE.

Remove fuel gauge sending unit. See Figure . Connect ohmmeter between fuel gauge sending unit connector terminals "A" and "D".
Measure resistance with fuel gauge sending unit float in specified position. See FUEL GAUGE SENDING UNIT RESISTANCE table. If resistance is not as specified, replace fuel gauge sending unit.

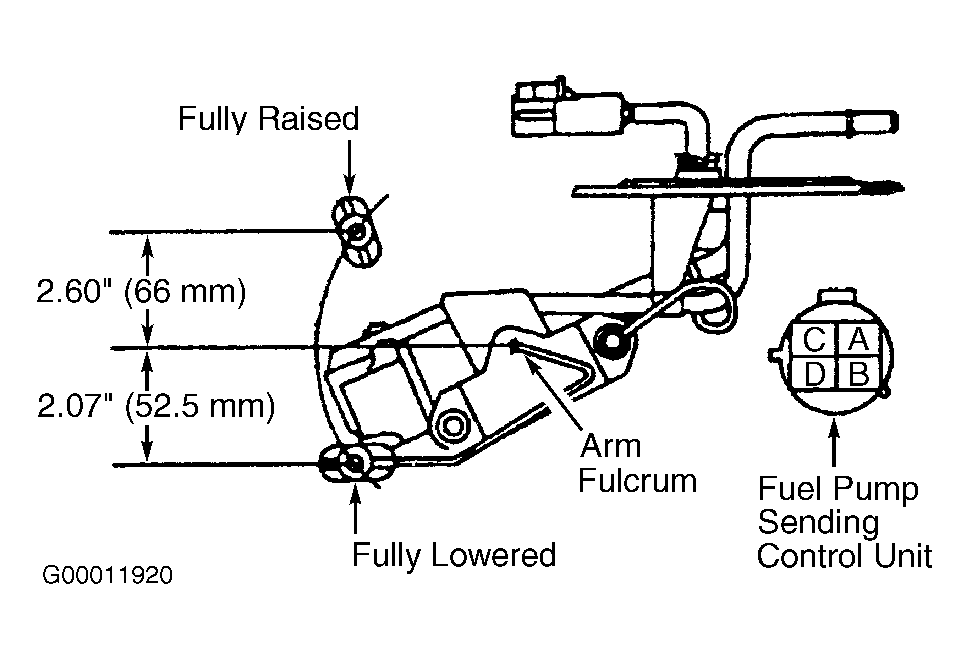

Fig 1: Identifying Fuel Pump Sending Unit Connector Terminals & Positions

Courtesy of MAZDA MOTORS CORP.

FUEL GAUGE SENDING UNIT RESISTANCE

Float Position

⁽¹⁾ Ohms

Fully Raised (Full)

6-14

Fully Lowered (Empty)

144-162

⁽¹⁾	Resistance values are approximate.
