Removal & Installation (MPV)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2003 Mazda Tribute, 2003 Mazda Protege5, 2003 Mazda Protege, 2003 Mazda MX-5 Miata, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
On left side, remove the plug hole plate. See TIMING CHAIN in appropriate ENGINE - MECHANICAL article. On right side, remove the dynamic chamber. See INTAKE AIR SYSTEM under AIR INDUCTION SYSTEMS.
Remove in the order indicated in the illustration. See Fig 1.
To install, reverse removal procedure. See TORQUE SPECIFICATIONS .

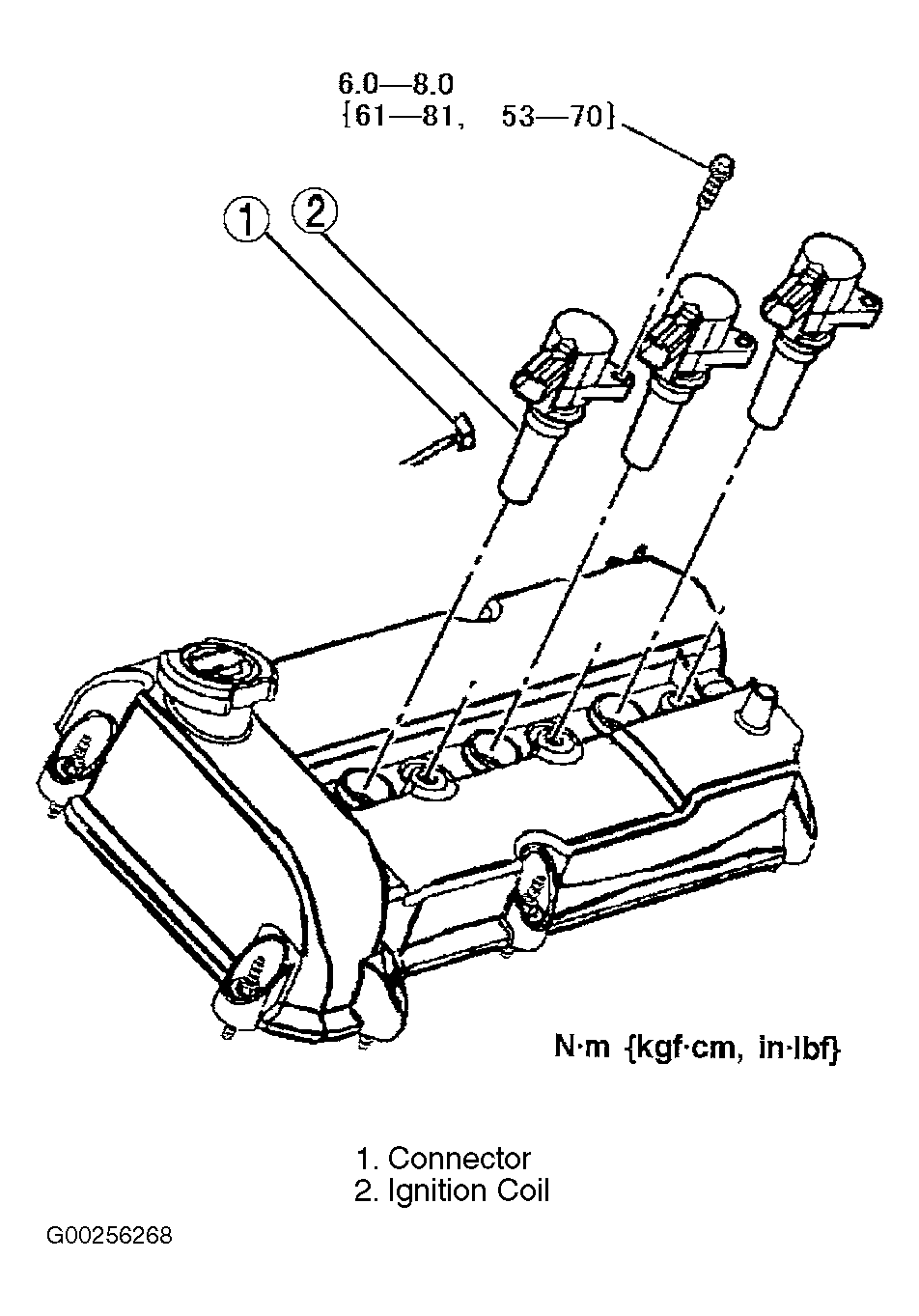

Fig 1: Removing & Installing Ignition Coils - MPV

Courtesy of MAZDA MOTORS CORP.
