Removal (Protege & Protege5)
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2003 Mazda Tribute, 2003 Mazda Protege5, 2003 Mazda Protege, 2003 Mazda MX-5 Miata, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect negative battery cable.
- Release fuel system pressure. See FUEL SYSTEM PRESSURE RELEASE .
- Remove rear seat cushion. Remove fuel pump access cover.
- Disconnect 4-pin harness connector.
- Disconnect both fuel lines. See DISCONNECT under FUEL LINE CONNECTORS (MAZDA6, MPV, PROTEGE & PROTEGE5).

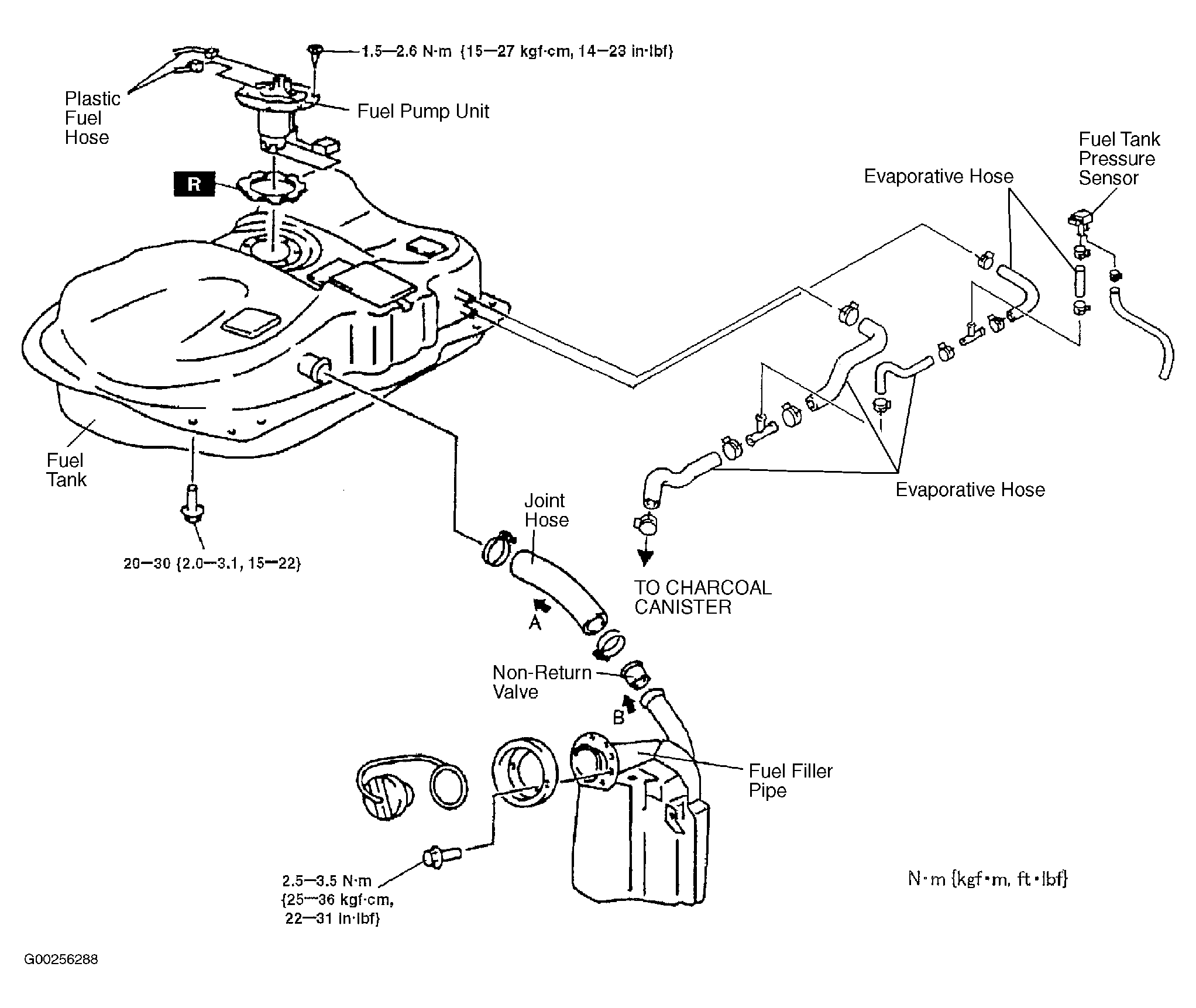

- Remove fuel pump and sending unit assembly. See Fig 1.
- Remove fuel pump from assembly.
- To install, reverse removal procedure. See TORQUE SPECIFICATIONS .
