Removal (B2300, B3000 & B4000)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2003 Mazda Tribute, 2003 Mazda Protege5, 2003 Mazda Protege, 2003 Mazda MX-5 Miata, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Remove fuel tank.
Clean the area around the fuel pump mounting flange.
Using Fuel Sender Wrench (310-075), remove fuel tank sending unit assembly locking retainer ring. See Fig 1.
Remove the fuel pump assembly. See Fig 1.
CAUTION: The fuel pump must be handled carefully to avoid damage to the float arm and filter.
Remove and discard the fuel pump mounting gasket.

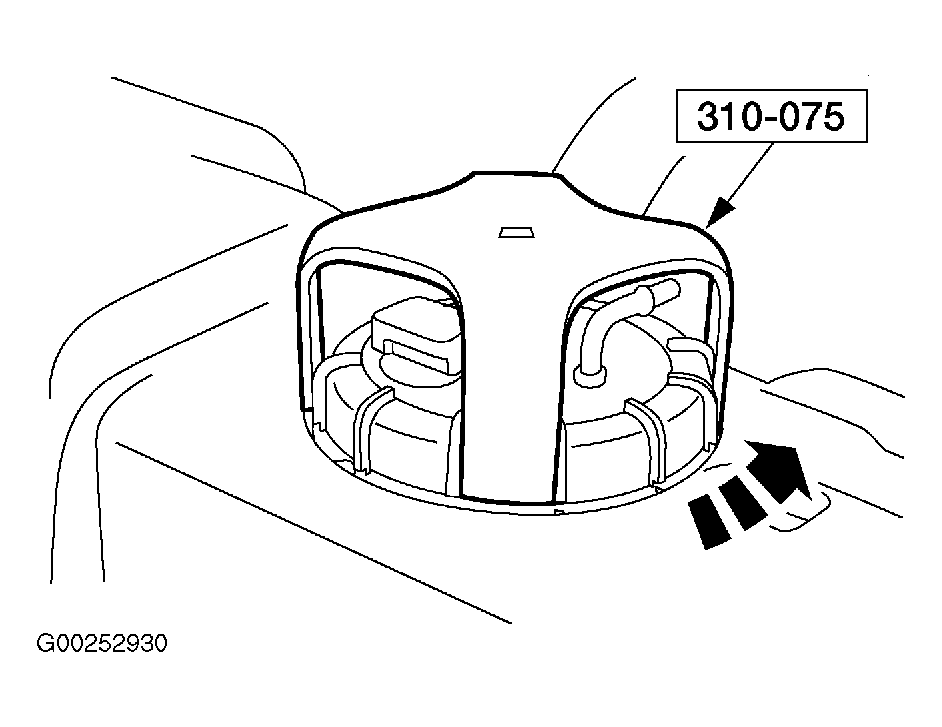

Fig 1: Removing Fuel Pump - B2300, B3000 & B4000

Courtesy of MAZDA MOTORS CORP.
