Removal & Installation (Tribute 2.0L)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2003 Mazda Tribute, 2003 Mazda Protege5, 2003 Mazda Protege, 2003 Mazda MX-5 Miata, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the Throttle Position (TP) sensor harness connector. See Fig 1.
Remove the 2 screws and the TP sensor. See Fig 2.

CAUTION: Be sure to hand start the TP sensor screws. These are self-threading screws. Failure to hand start them can cause damage to the throttle body.

To install, reverse removal procedure. See TORQUE SPECIFICATIONS .

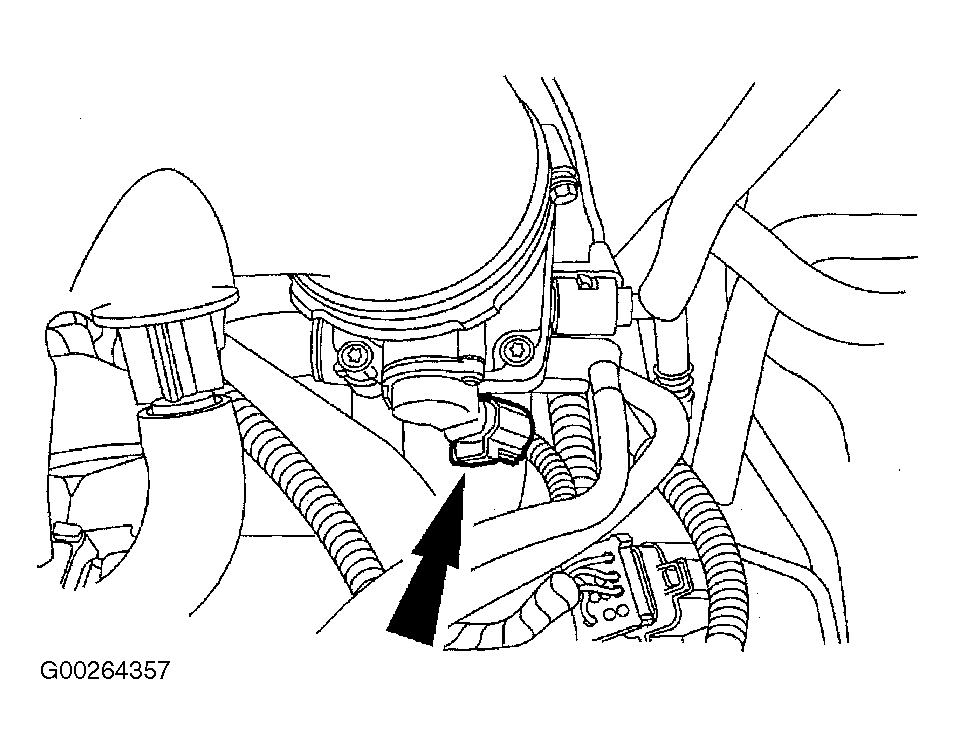

Fig 1: Locating TP Sensor Harness Connector - Tribute (2.0L)

Courtesy of MAZDA MOTORS CORP.

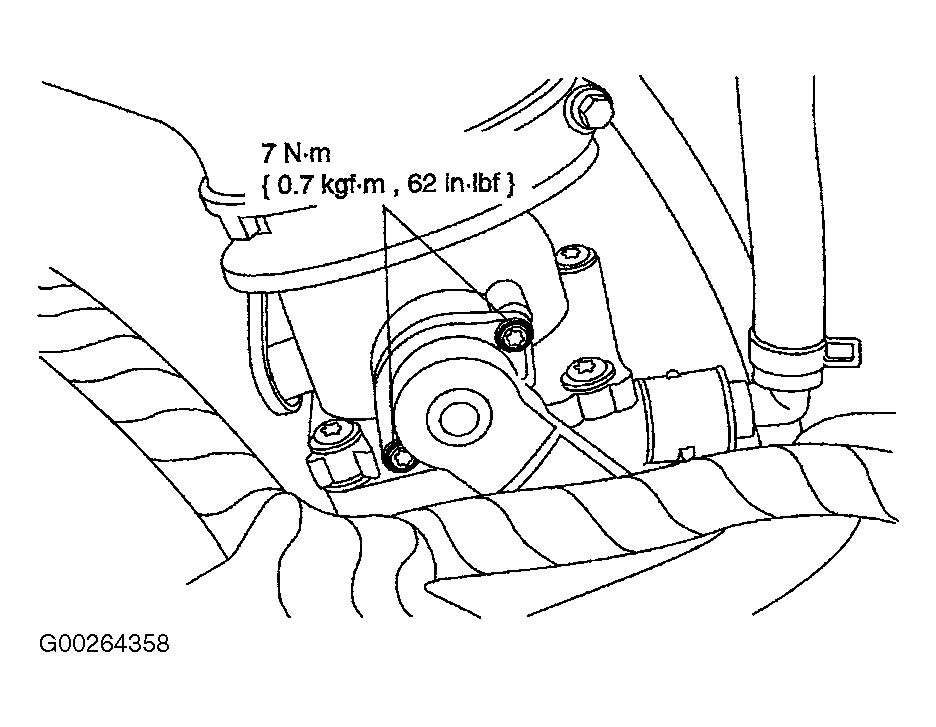

Fig 2: Removing & Installing TP Sensor - Tribute (2.0L)

Courtesy of MAZDA MOTORS CORP.
