Removal & Installation (B4000)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2003 Mazda Tribute, 2003 Mazda Protege5, 2003 Mazda Protege, 2003 Mazda MX-5 Miata, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Numbers in parenthesis refer to numbers in illustration.

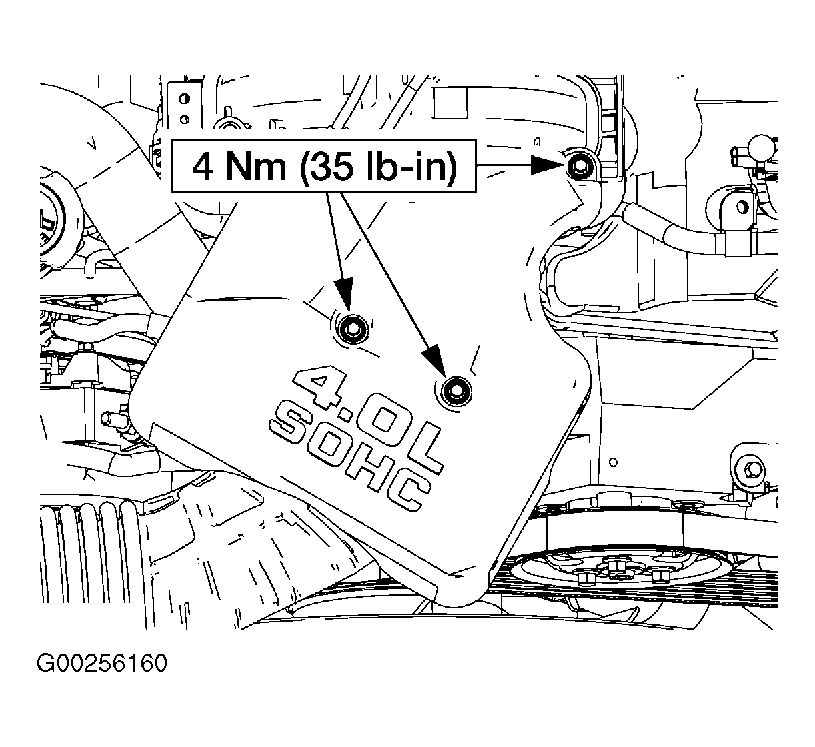

Remove the accelerator control splash shield. See Figure.
Disconnect the Throttle Position (TP) sensor harness connector (1). See Fig 1.
Remove the bolts and the TP sensor (2). See Fig 1.
To install, reverse removal procedure. See TORQUE SPECIFICATIONS .

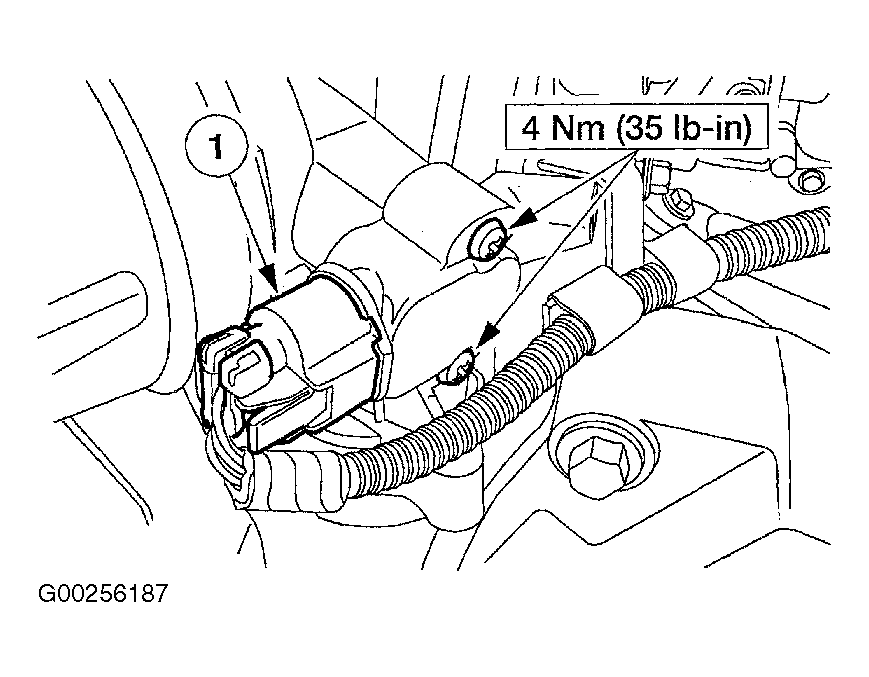

Fig 1: Removing & Installing TP Sensor - B4000

Courtesy of MAZDA MOTORS CORP.
