Removal & Installation (B2300)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2003 Mazda Tribute, 2003 Mazda Protege5, 2003 Mazda Protege, 2003 Mazda MX-5 Miata, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Disconnect the Throttle Position (TP) sensor harness connector. See Figure.
Remove the bolts and the TP sensor. See Fig 1.
To install, reverse removal procedure. See TORQUE SPECIFICATIONS .

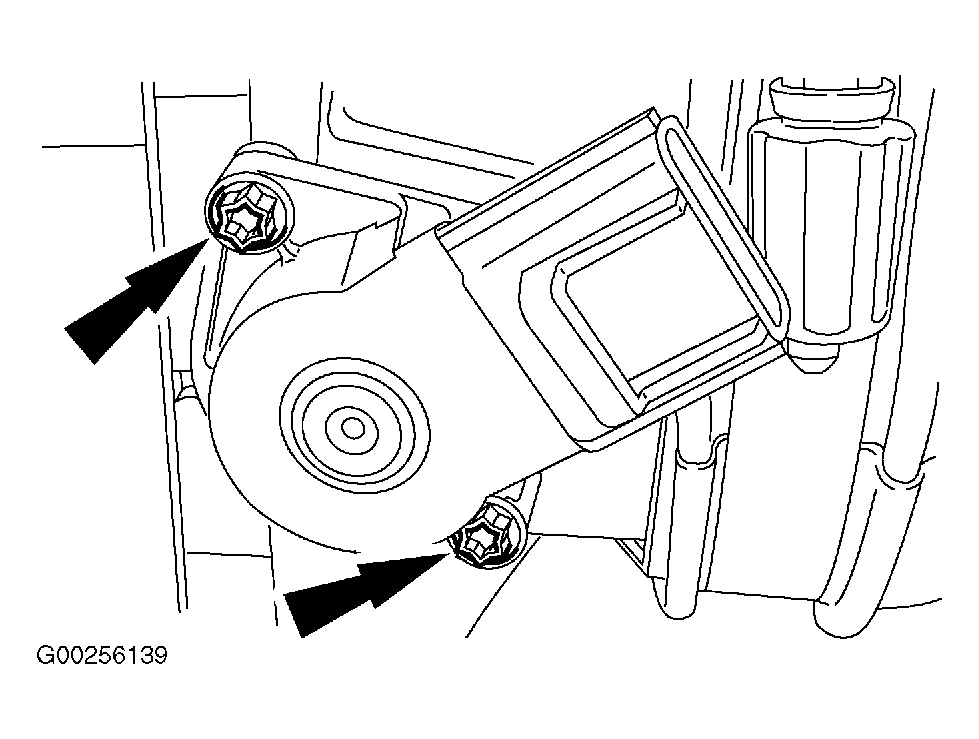

Fig 1: Removing & Installing TP Sensor - B2300

Courtesy of MAZDA MOTORS CORP.
