Removal & Installation (Mazda6 2.3L)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2003 Mazda Tribute, 2003 Mazda Protege5, 2003 Mazda Protege, 2003 Mazda MX-5 Miata, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: When the engine is hot, it can cause severe burns. Turn off the engine and wait until it is cool before removing the Engine Coolant Temperature (ECT) sensor.

Drain the engine coolant.
Disconnect the ECT sensor harness connector. See Figure.
Remove ECT sensor. See Fig 1.
To install, reverse removal procedure. See TORQUE SPECIFICATIONS .

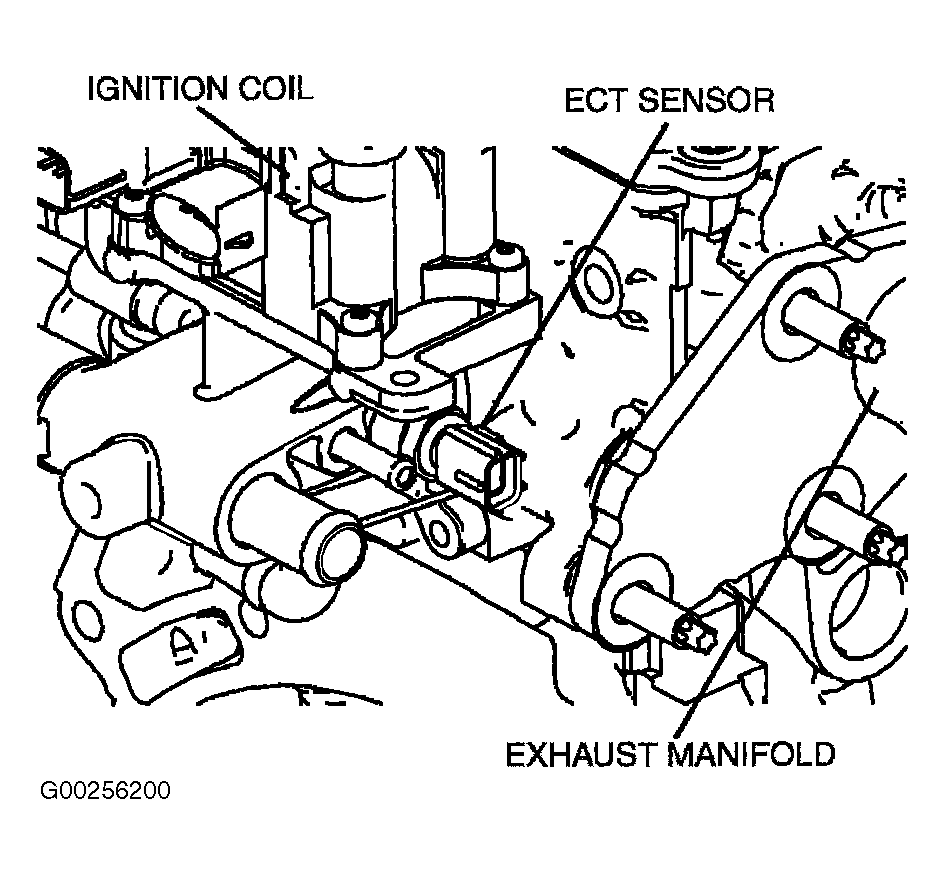

Fig 1: Removing & Installing ECT Sensor - Mazda6 (2.3L)

Courtesy of MAZDA MOTORS CORP.
