Removal (B2300)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2003 Mazda Tribute, 2003 Mazda Protege5, 2003 Mazda Protege, 2003 Mazda MX-5 Miata, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Raise and support the vehicle.
  3. Disconnect the Crankshaft Position (CKP) sensor harness connector. See Fig 1.
  4. Remove the plug for the crankshaft timing peg. See Fig 2.
  5. Install the Special Tool (303-507) and turn the crankshaft pulley bolt to position the number one cylinder at top dead center. See Fig 3.
  6. Install the M6 bolt (1F2012-428). See Fig 4.
  7. Remove the CKP sensor. See Fig 5.

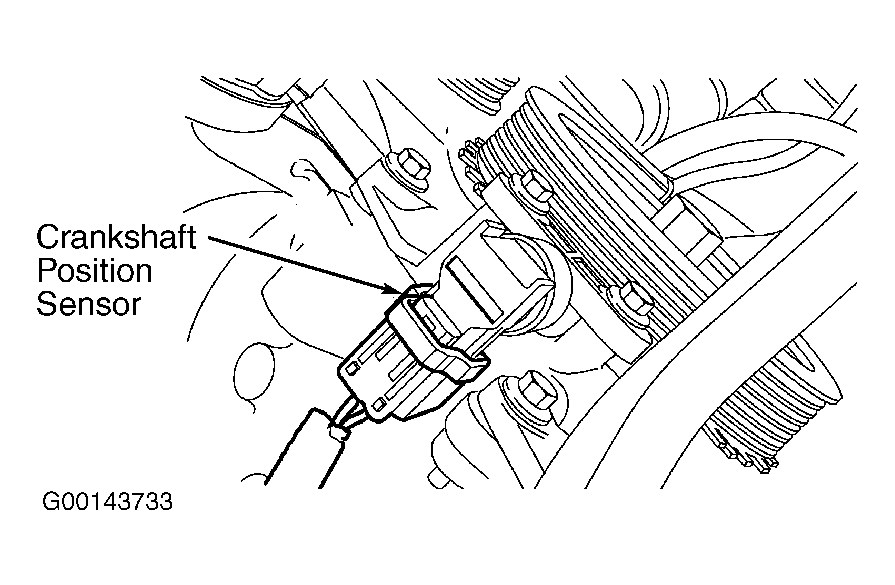

Fig 1: Locating Crankshaft Position (CKP) Sensor Harness Connector - B2300
G00143733Courtesy of MAZDA MOTORS CORP.

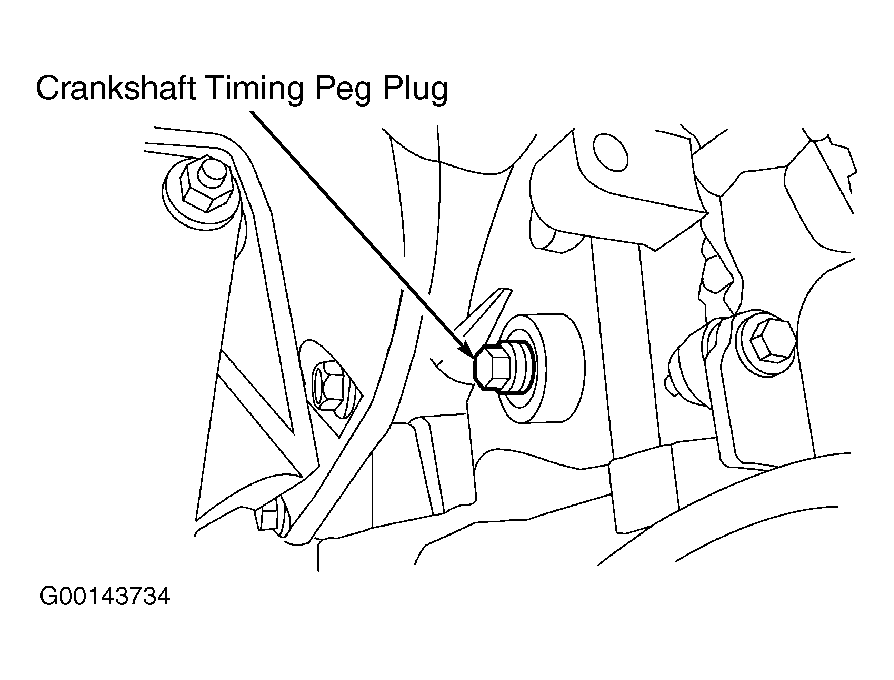

Fig 2: Locating Crankshaft Timing Peg Plug - B2300
G00143734Courtesy of MAZDA MOTORS CORP.
Fig 3: Removing CKP Sensor - B2300 (1 Of 3)
G00252899Courtesy of MAZDA MOTORS CORP.

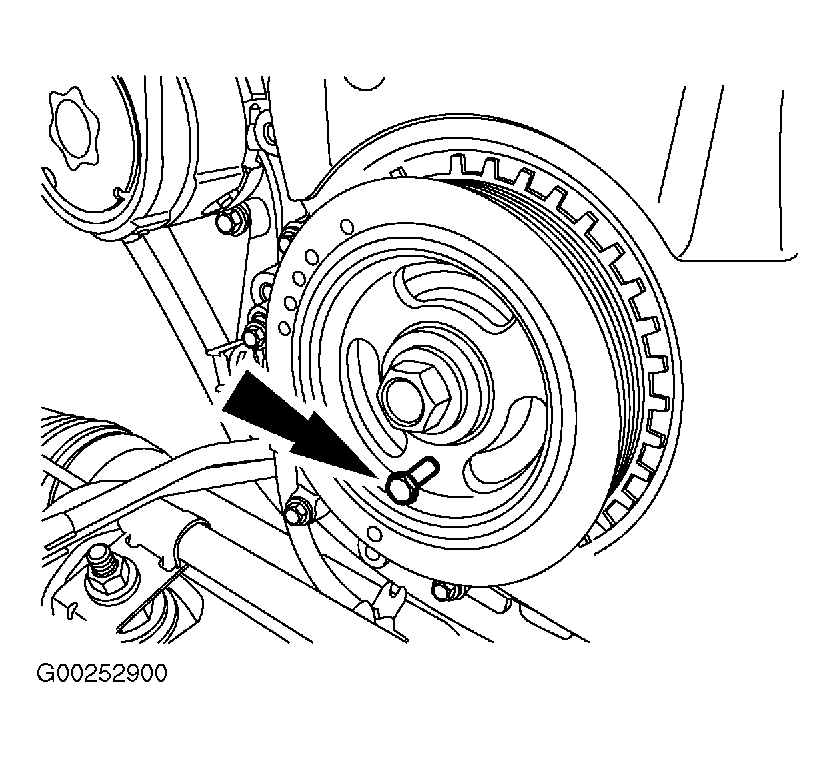

Fig 4: Removing CKP Sensor - B2300 (2 Of 3)
G00252900Courtesy of MAZDA MOTORS CORP.
Fig 5: Removing CKP Sensor - B2300 (3 Of 3)
G00252901Courtesy of MAZDA MOTORS CORP.
