Removal & Installation (Tribute 2.0L)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2003 Mazda Tribute, 2003 Mazda Protege5, 2003 Mazda Protege, 2003 Mazda MX-5 Miata, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Do not work on the aluminum engine components until the engine is cold or damage may occur.

NOTE: Numbers in parenthesis refer to numbers in the illustration.

Remove the catalytic converter.
Lower the vehicle.
Remove the dipstick and the dipstick tube bracket bolt. See Fig 1.
Remove the 6 bolts and 3 nuts and remove the exhaust manifold. See Fig 2.
Disconnect the Crankshaft Position (CKP) sensor harness connector (1). See Fig 3.
Remove the bolt (2). See Fig 3.
Remove the CKP sensor (3). See Fig 3.
To install, reverse removal procedure. See Fig 4. See TORQUE SPECIFICATIONS .

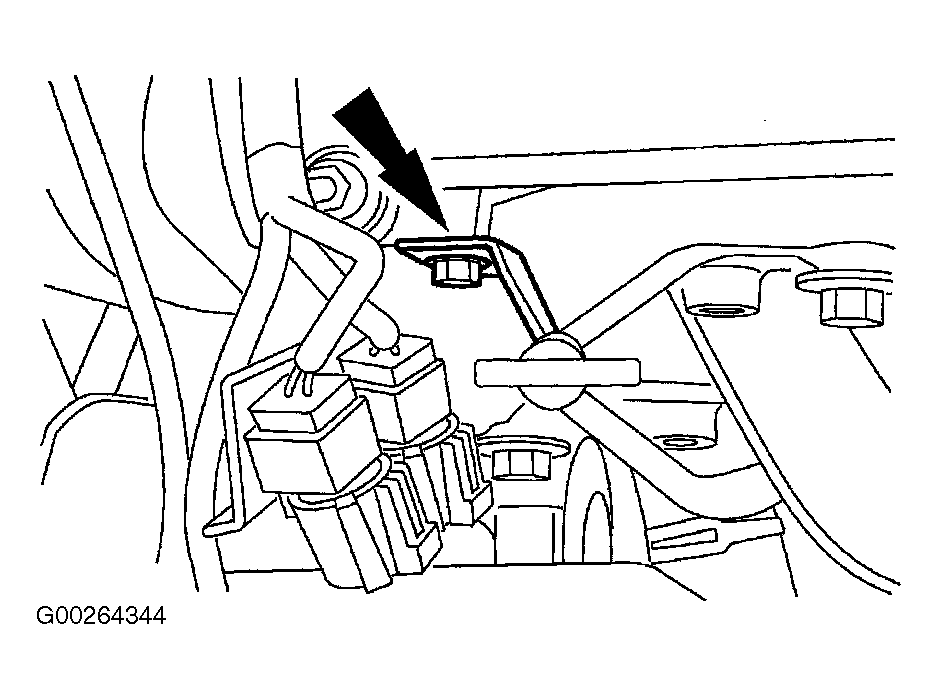

Fig 1: Removing & Installing Engine Oil Dipstick Tube - Tribute (2.0L)

Courtesy of MAZDA MOTORS CORP.

Fig 2: Exhaust Manifold Bolt Removal Sequence - Tribute (2.0L)

Courtesy of MAZDA MOTORS CORP.

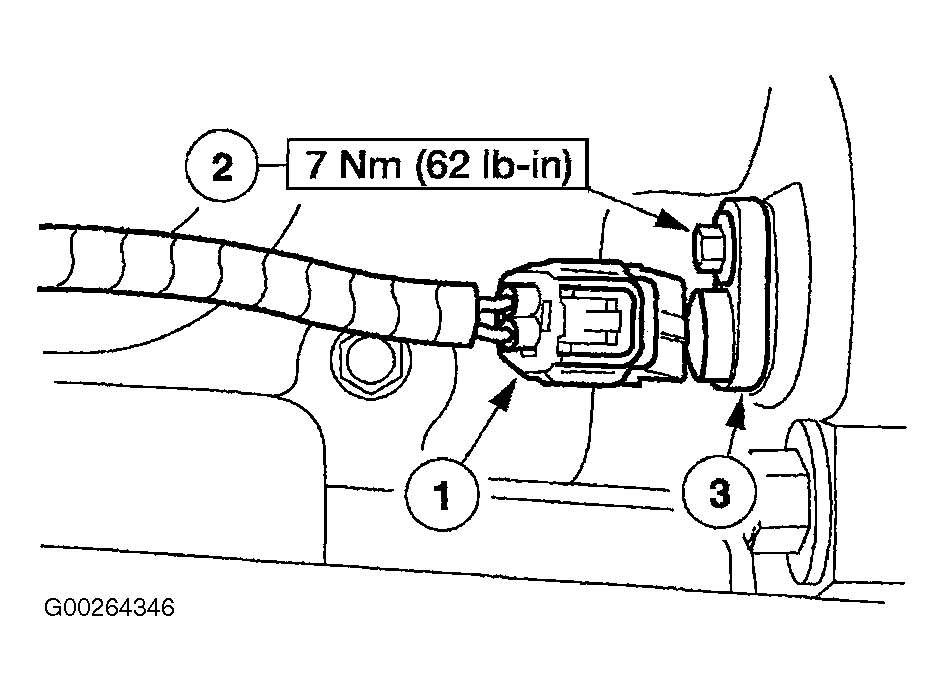

Fig 3: Removing & Installing CKP Sensor - Tribute (2.0L)

Courtesy of MAZDA MOTORS CORP.

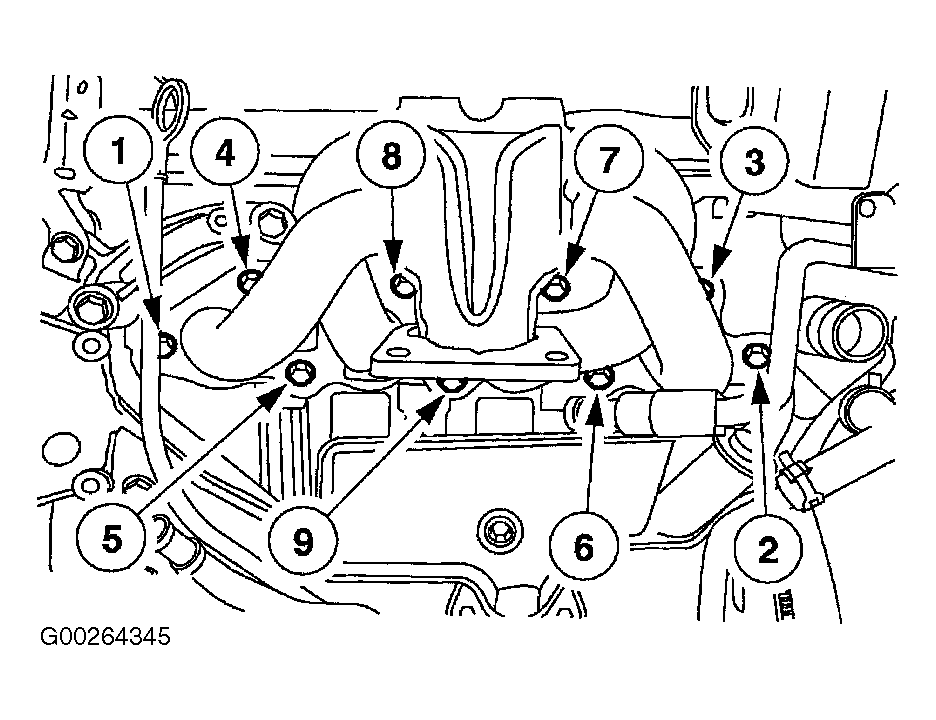

Fig 4: Exhaust Manifold Bolt Tightening Sequence - Tribute (2.0L)

Courtesy of MAZDA MOTORS CORP.
