Removal & Installation (B3000)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2003 Mazda Tribute, 2003 Mazda Protege5, 2003 Mazda Protege, 2003 Mazda MX-5 Miata, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Raise and support the vehicle.
Disconnect the Crankshaft Position (CKP) sensor harness connector. See Fig 1.
Remove the bolts and the CKP sensor. See Fig 2.
To install, reverse removal procedure. See TORQUE SPECIFICATIONS .

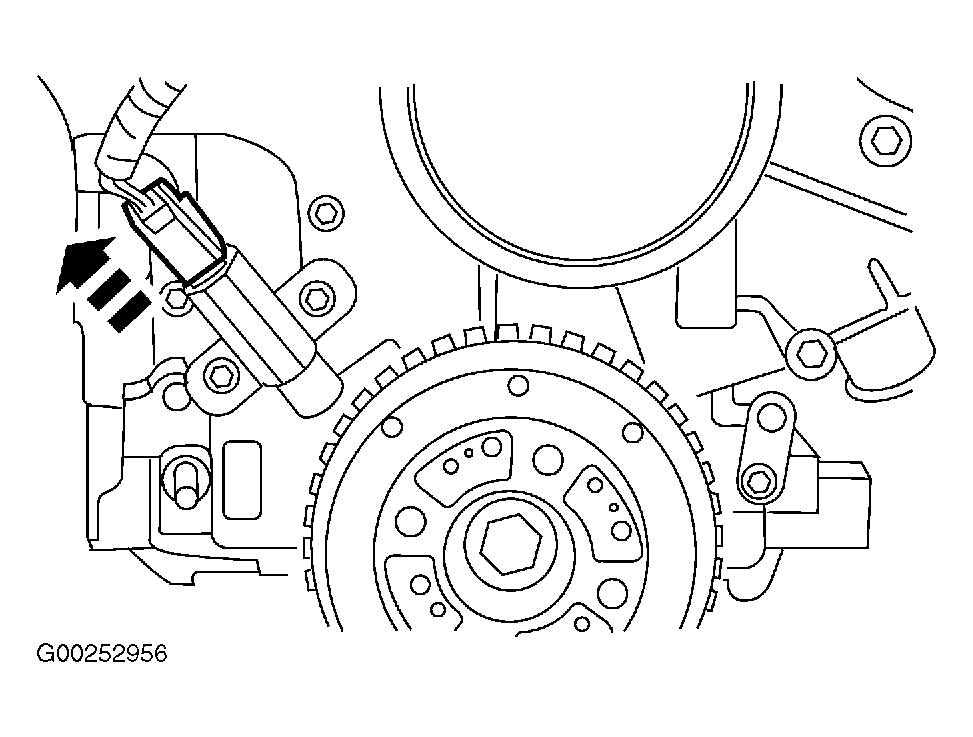

Fig 1: Locating CKP Sensor Harness Connector - B3000

Courtesy of MAZDA MOTORS CORP.

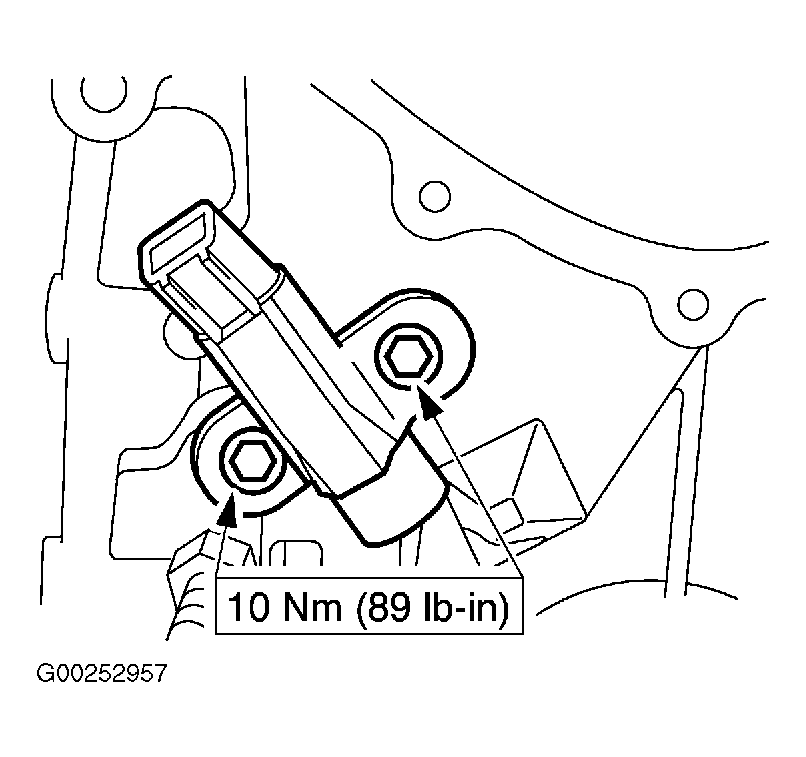

Fig 2: Removing & Installing CKP Sensor - B3000

Courtesy of MAZDA MOTORS CORP.
