Installation (B2300)
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2003 Mazda Tribute, 2003 Mazda Protege5, 2003 Mazda Protege, 2003 Mazda MX-5 Miata, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
- Install a NEW CKP sensor, but do not tighten the bolts at this time.

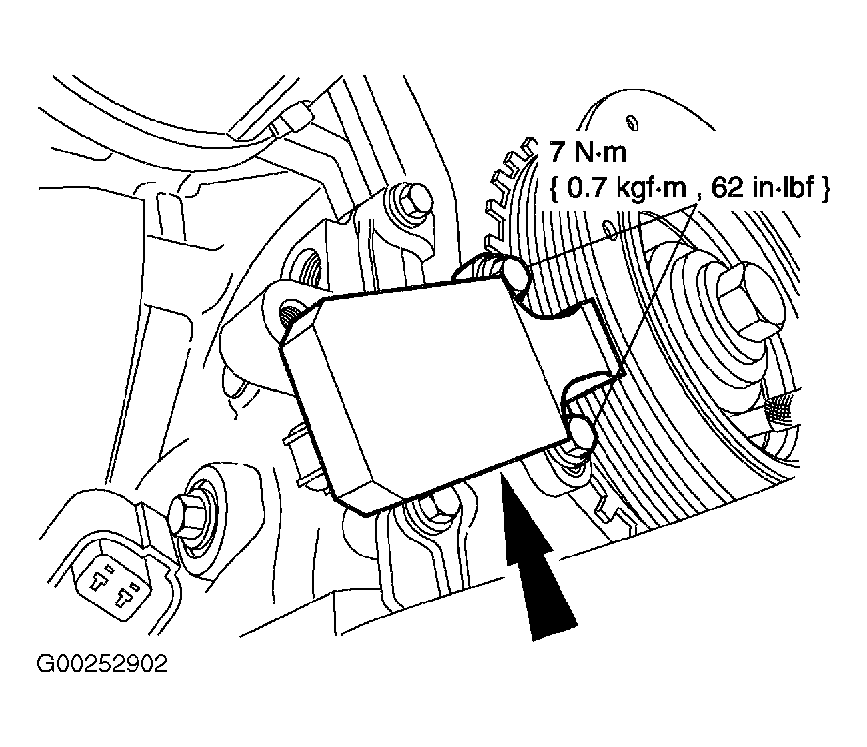

- Adjust the CKP sensor with the Crankshaft Position Sensor Alignment Jig and tighten the bolts. See Fig 1. See TORQUE SPECIFICATIONS .
- Connect the CKP sensor harness connector.
- Remove the M6 bolt.
- Remove the special tool.
- Install the plug for the crankshaft timing peg. See Figure. See TORQUE SPECIFICATIONS .
