Removal & Installation (B3000)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2003 Mazda Tribute, 2003 Mazda Protege5, 2003 Mazda Protege, 2003 Mazda MX-5 Miata, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect negative battery cable.
Remove the upper intake manifold. See UPPER INTAKE MANIFOLD under AIR INDUCTION SYSTEMS.
Disconnect Camshaft Position (CMP) sensor harness connector. See Fig 1.
Remove the screws and the CMP sensor. See Fig 2.
To install, reverse removal procedure. See TORQUE SPECIFICATIONS .

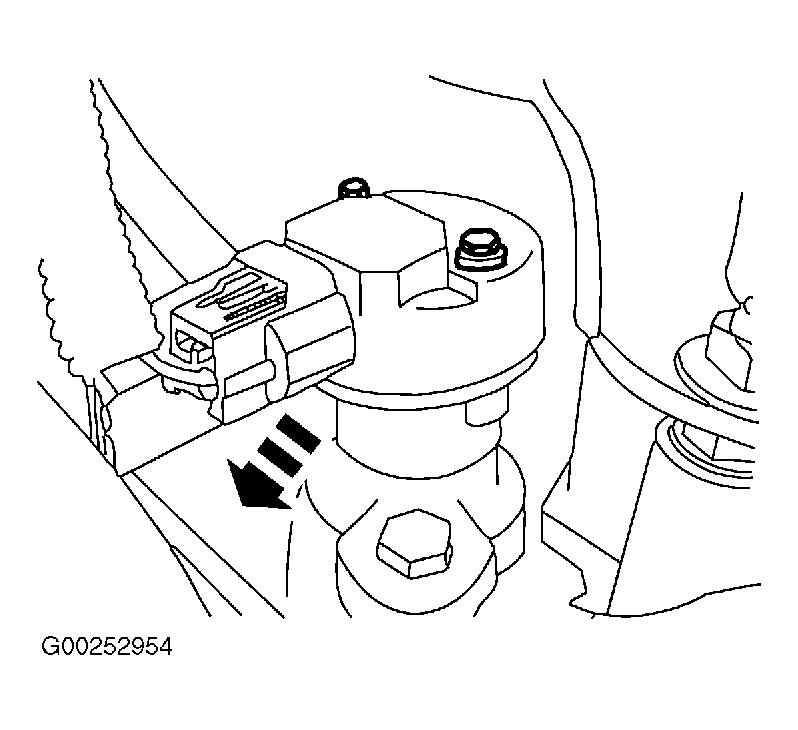

Fig 1: Locating CMP Sensor Harness Connector - B3000

Courtesy of MAZDA MOTORS CORP.

Fig 2: Removing & Installing CMP Sensor - B3000

Courtesy of MAZDA MOTORS CORP.
