Charcoal Canister: Notes
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2003 Mazda Tribute, 2003 Mazda Protege5, 2003 Mazda Protege, 2003 Mazda MX-5 Miata, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

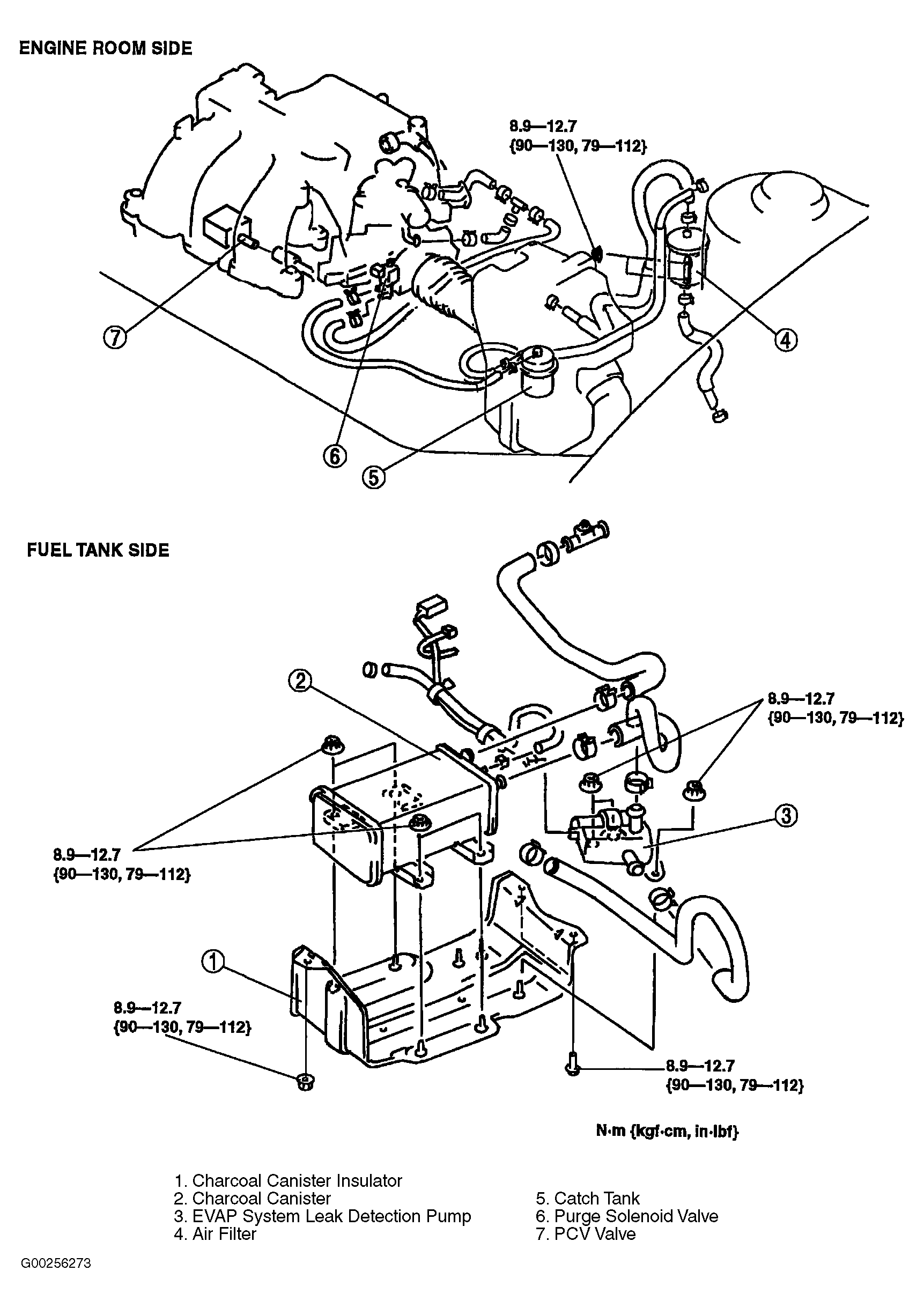

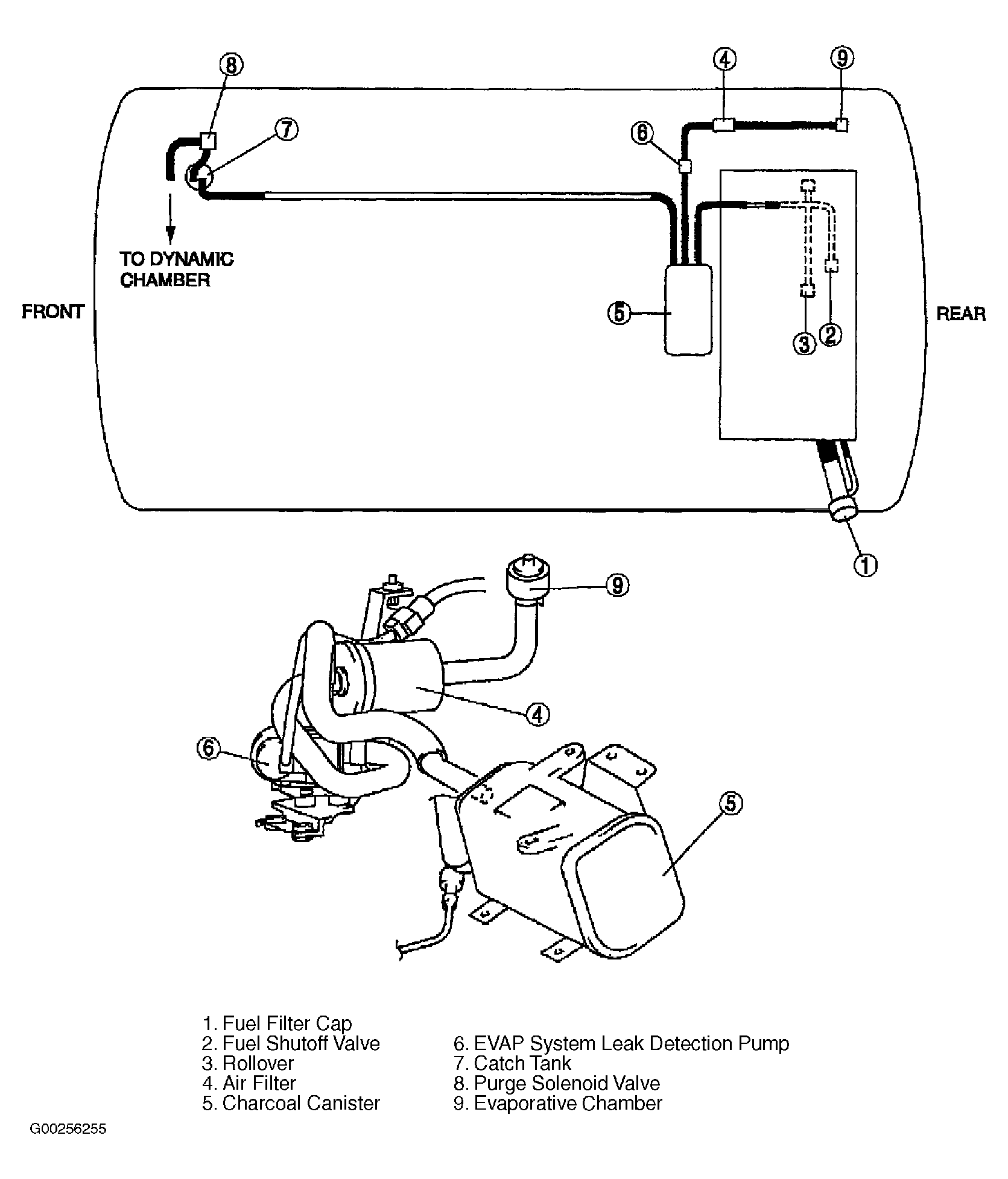

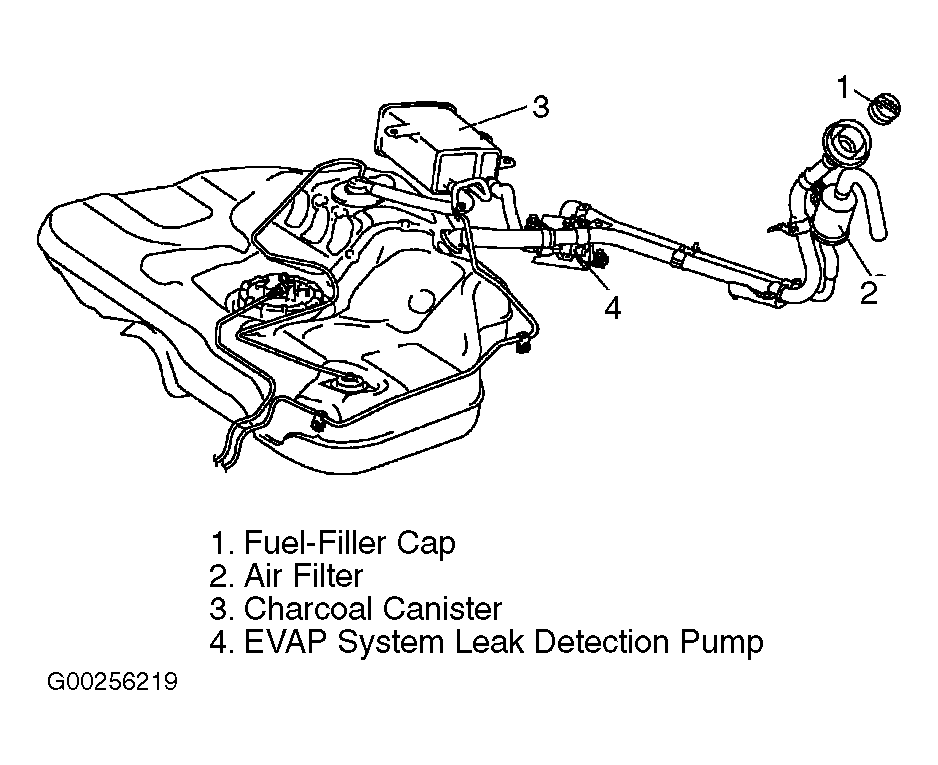

CHARCOAL CANISTER LOCATION
| Application |
Location |
| B2300, B3000 & B4000 |
Left Frame Rail, Near Spare Tire |
| Mazda6 |
Under Rear Of Vehicle, Near Fuel Tank |
| Miata |
Under Rear Of Vehicle, Forward Of Fuel Tank |
| MPV |
Under Left Side Vehicle, Forward Of Fuel Tank |
| Protege & Protege5 |
Under Rear Of Vehicle, Below Spare Tire Well |
| Tribute |
Left Frame Rail, Forward Of Fuel Filter |
