Removal & Installation (Miata)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2003 Mazda Tribute, 2003 Mazda Protege5, 2003 Mazda Protege, 2003 Mazda MX-5 Miata, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Disconnect the Variable Tumble Control System (VTCS) solenoid valve harness connector.
Disconnect the vacuum hose from the VTCS solenoid valve. See Fig 1.
Remove VTCS solenoid valve. See Fig 2.
To install, reverse removal procedure. See TORQUE SPECIFICATIONS .

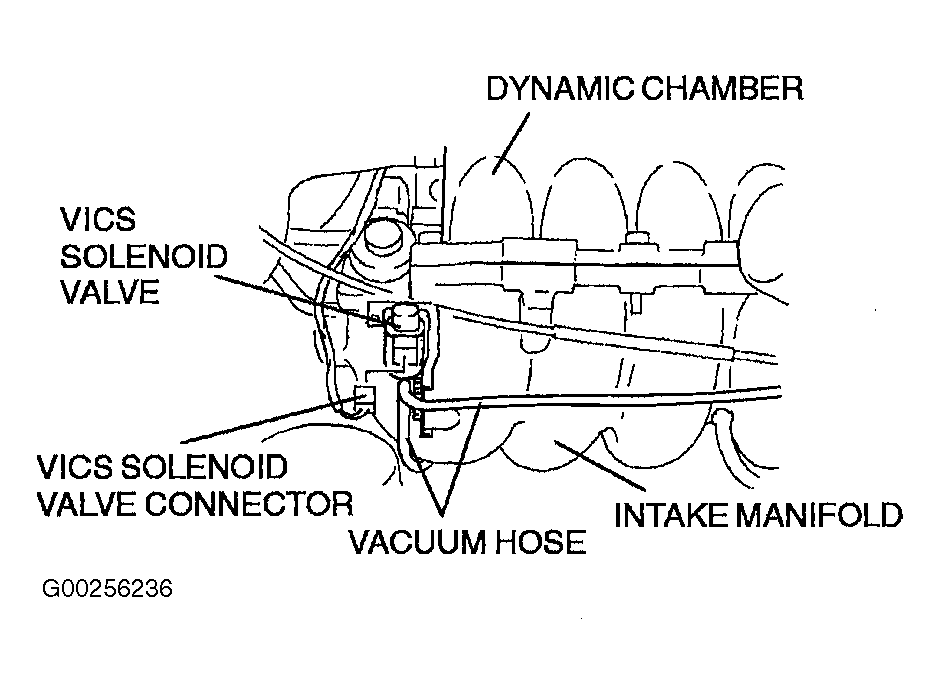

Fig 1: Identifying VTCS Solenoid Valve Components - Miata

Courtesy of MAZDA MOTORS CORP.

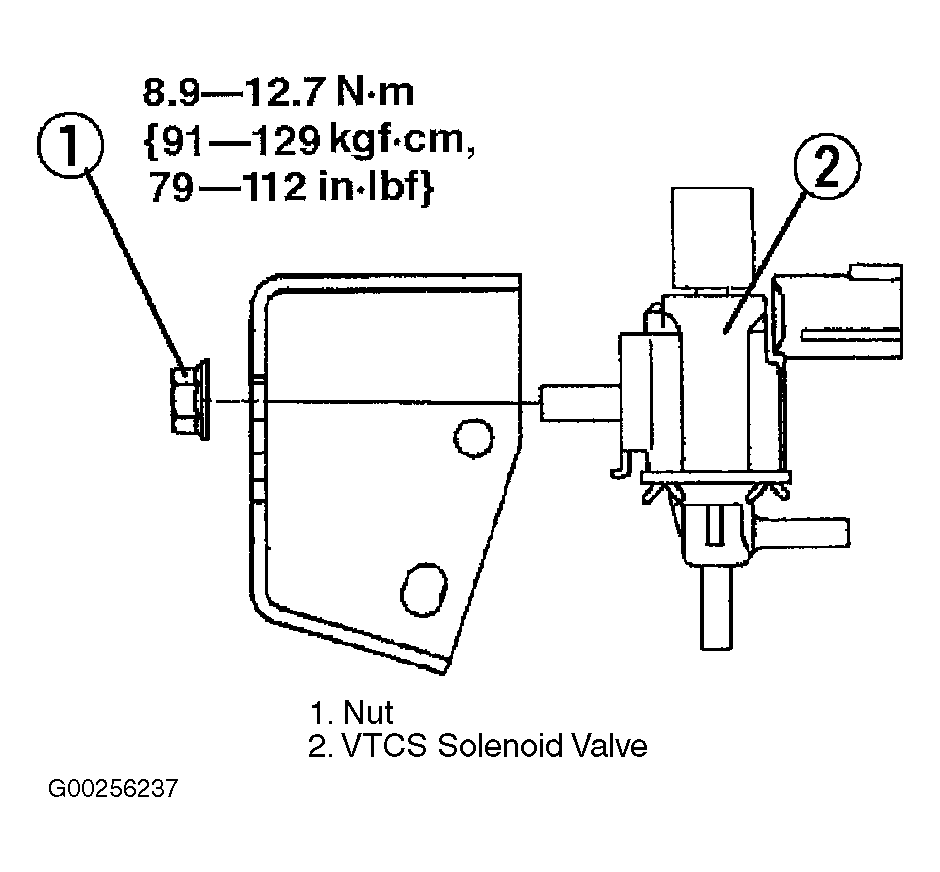

Fig 2: Removing & Installing VTCS Solenoid Valve - Miata

Courtesy of MAZDA MOTORS CORP.
