Removal & Installation (Protege & Protege5)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2003 Mazda Tribute, 2003 Mazda Protege5, 2003 Mazda Protege, 2003 Mazda MX-5 Miata, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery negative cable.
Remove the air hose, throttle body and intake manifold. See INTAKE AIR SYSTEM .
Remove in the order indicated in the illustration. See Fig 1.
To install, reverse removal procedure. See TORQUE SPECIFICATIONS .

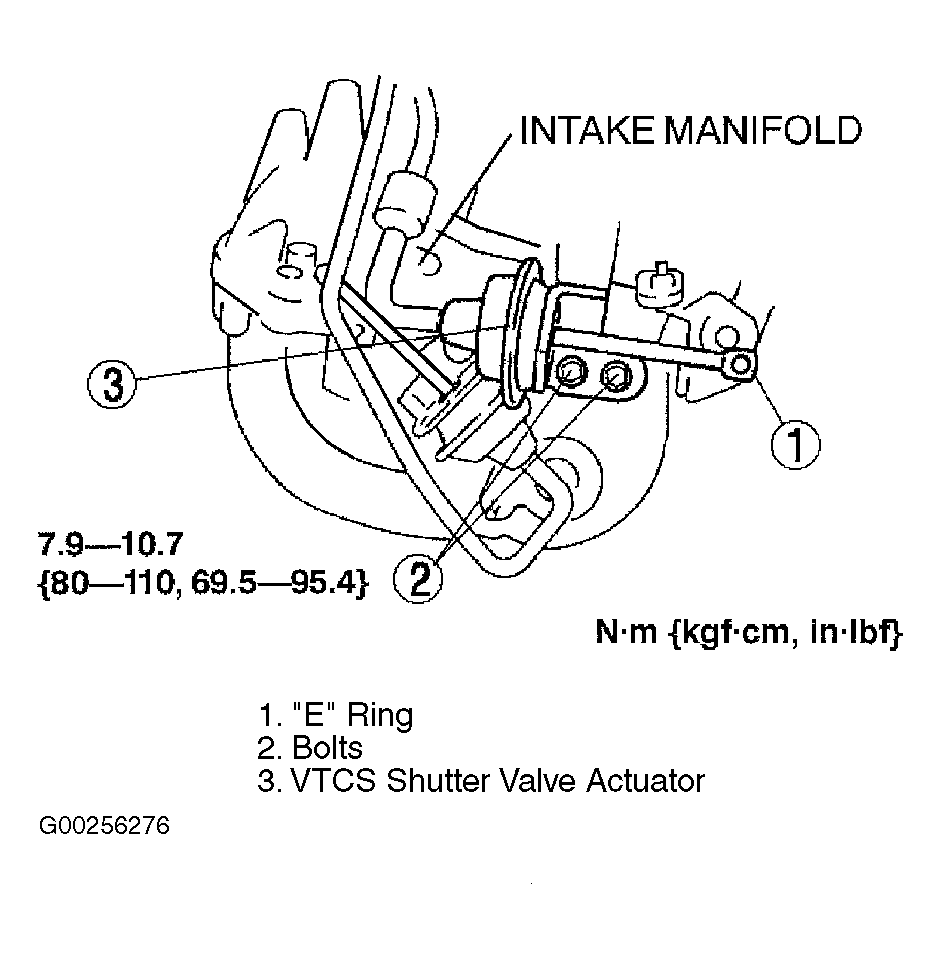

Fig 1: Removing & Installing VTCS Shutter Valve Actuator - Protege & Protege5

Courtesy of MAZDA MOTORS CORP.
