Removal & Installation (Miata)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2003 Mazda Tribute, 2003 Mazda Protege5, 2003 Mazda Protege, 2003 Mazda MX-5 Miata, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Remove air hose. See INTAKE AIR SYSTEM .
Remove in order indicated in illustration. See Fig 1.
To install, reverse removal procedure. See TORQUE SPECIFICATIONS .

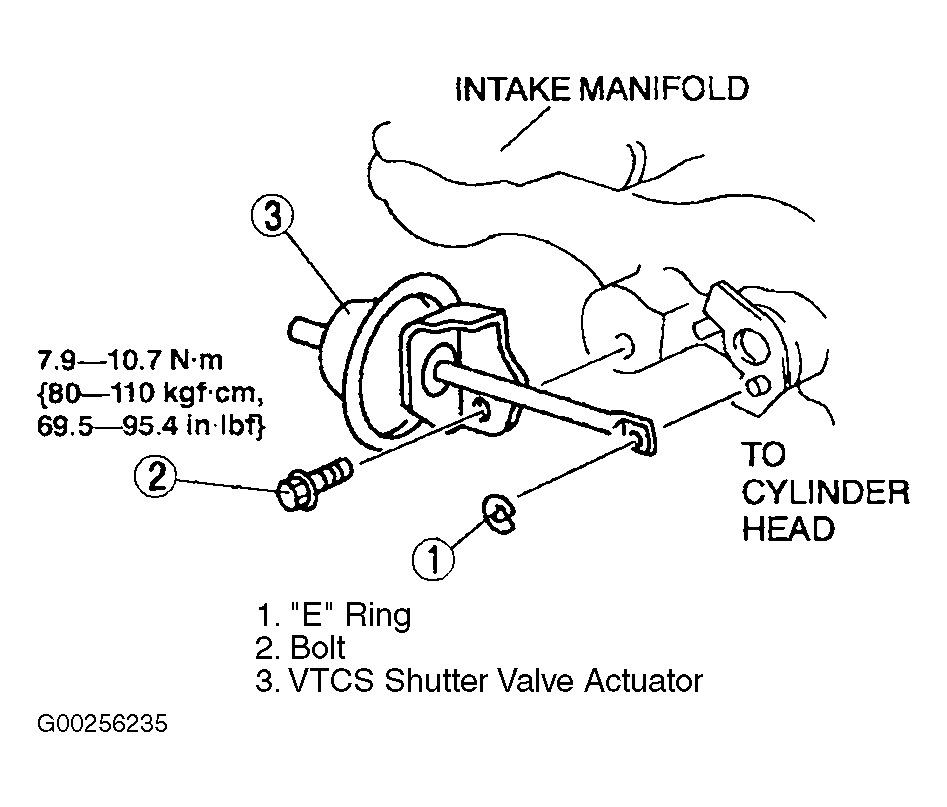

Fig 1: Removing & Installing VTCS Shutter Valve Actuator - Miata

Courtesy of MAZDA MOTORS CORP.
