Removal & Installation (Protege & Protege5)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2003 Mazda Tribute, 2003 Mazda Protege5, 2003 Mazda Protege, 2003 Mazda MX-5 Miata, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery negative cable.
Remove vacuum hose. See Fig 1.
Remove Variable Tumble Control System (VTCS) delay valve. See Fig 1.
To install, reverse removal procedure.

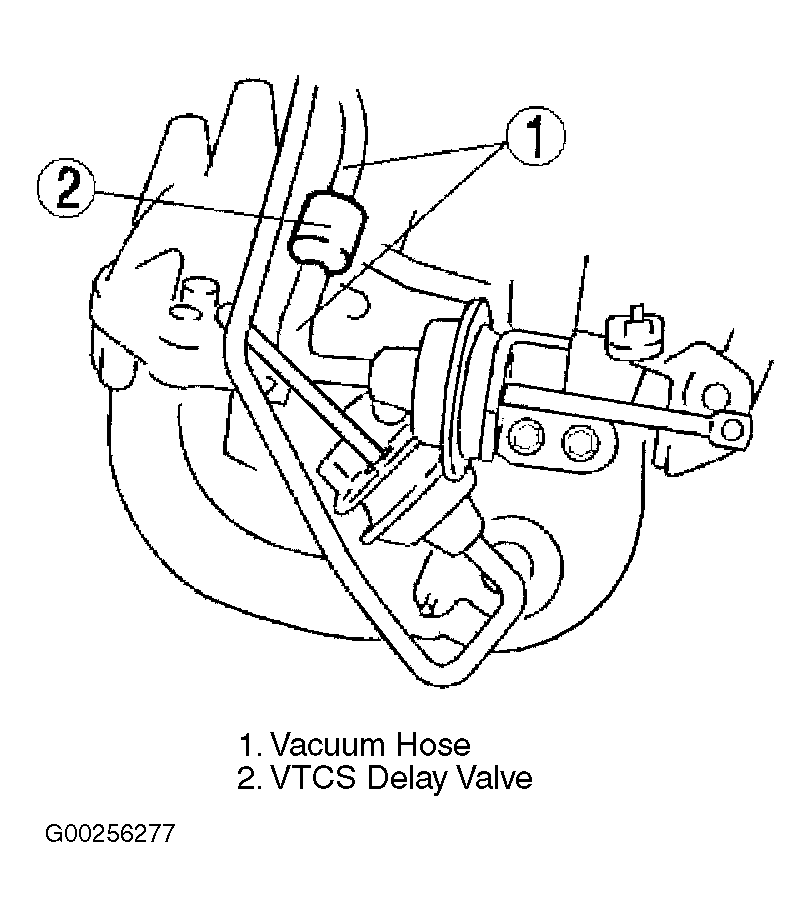

Fig 1: Removing & Installing VTCS Delay Valve - Protege & Protege5

Courtesy of MAZDA MOTORS CORP.
