Removal (Tribute 3.0L)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2003 Mazda Tribute, 2003 Mazda Protege5, 2003 Mazda Protege, 2003 Mazda MX-5 Miata, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Numbers in parenthesis refer to numbers in illustrations.
  1. Remove air cleaner outlet tube. See AIR CLEANER OUTLET PIPE .

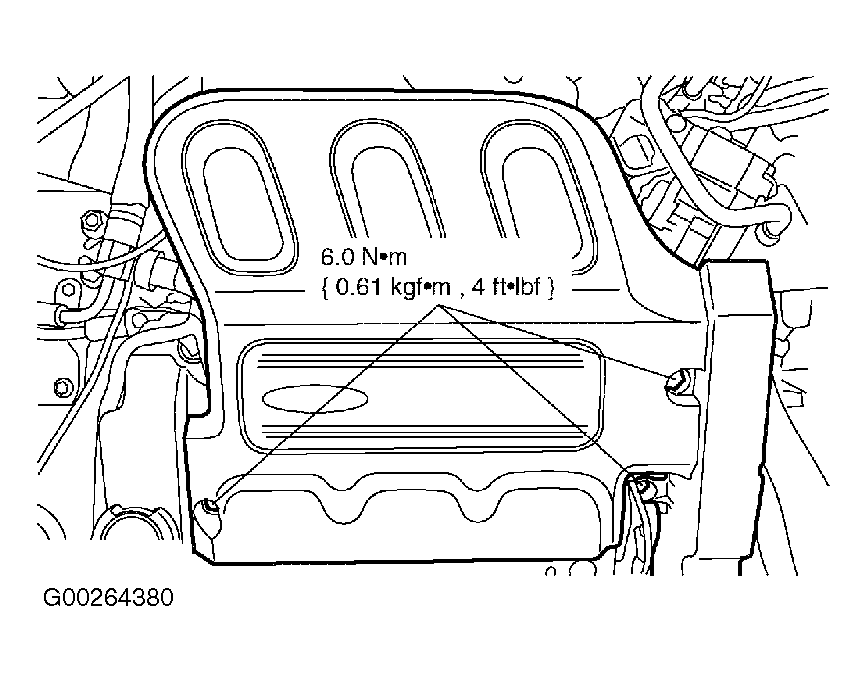

  2. Remove the 3 nuts and the engine appearance cover. See Figure.
  3. Disconnect the throttle cable (1). See Fig 1.
  4. Disconnect the cruise control cable, if equipped (2). See Fig 1.
  5. Remove the throttle cable bracket bolts (3). See Fig 1.
  6. Disconnect the Throttle Position (TP) sensor and Idle Air Control (IAC) harness connectors. See Fig 2.
  7. Disconnect the Exhaust Gas Recirculation (EGR) valve vacuum hose and EGR tube nut. See Fig 3.
  8. Disconnect the EGR vacuum regulator valve harness connector and vacuum hose. See Fig 4.
  9. Disconnect the chassis vacuum hose (1). See Fig 5.
  10. Disconnect the engine vacuum hose (2). See Fig 5.
  11. Disconnect the Positive Crankcase Ventilation (PCV) hose (3). See Fig 5.
  12. Disconnect the Vapor Management Valve (VMV) vacuum hose. See Fig 6.
  13. Disconnect the 2 harness connectors attached to the left side of the upper intake manifold. See Fig 7.
  14. Disconnect the Power Steering Pressure (PSP) sensor harness connector. See Fig 8.
  15. Position the transaxle vent hose aside.
  16. Remove the nut from the wire harness. See Fig 9.
  17. Remove the 8 bolts and the upper intake manifold. See Fig 10.
Fig 1: Removing & Installing Throttle Cable & Cruise Control Cable - Tribute (3.0L)
G00264384Courtesy of MAZDA MOTORS CORP.
Fig 2: Locating TP Sensor Connector & IAC Connector - Tribute (3.0L)
G00264385Courtesy of MAZDA MOTORS CORP.

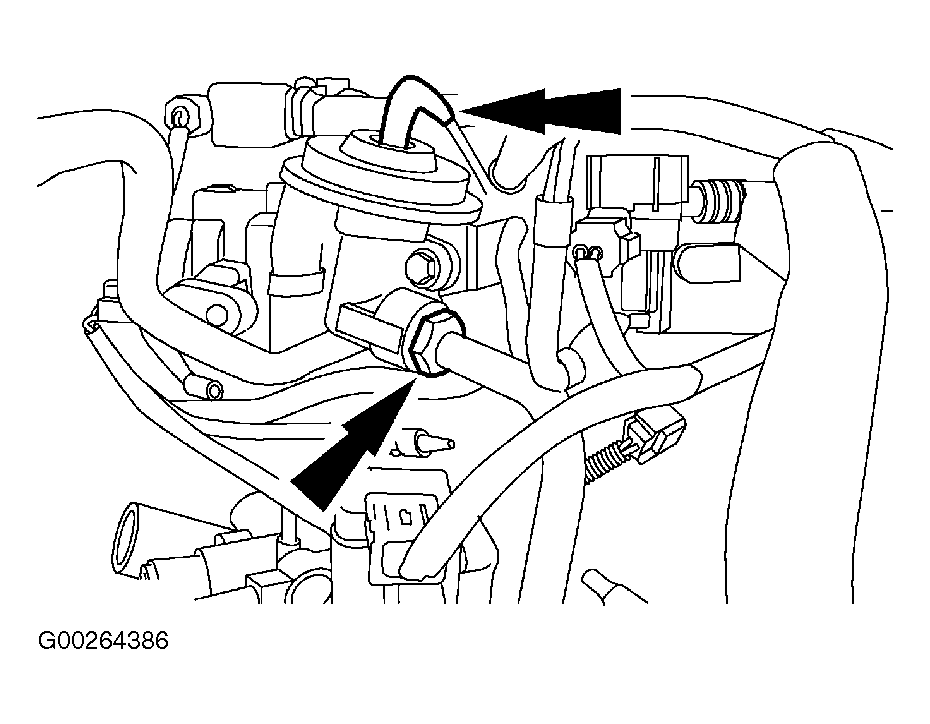

Fig 3: Locating EGR Valve Vacuum Hose & EGR Tube Nut - Tribute (3.0L)
G00264386Courtesy of MAZDA MOTORS CORP.
Fig 4: Locating EGR Vacuum Regulator Valve Harness Connector & Vacuum Hose - Tribute (3.0L)
G00264387Courtesy of MAZDA MOTORS CORP.
Fig 5: Locating Vacuum Hoses - Tribute (3.0L)
G00264388Courtesy of MAZDA MOTORS CORP.

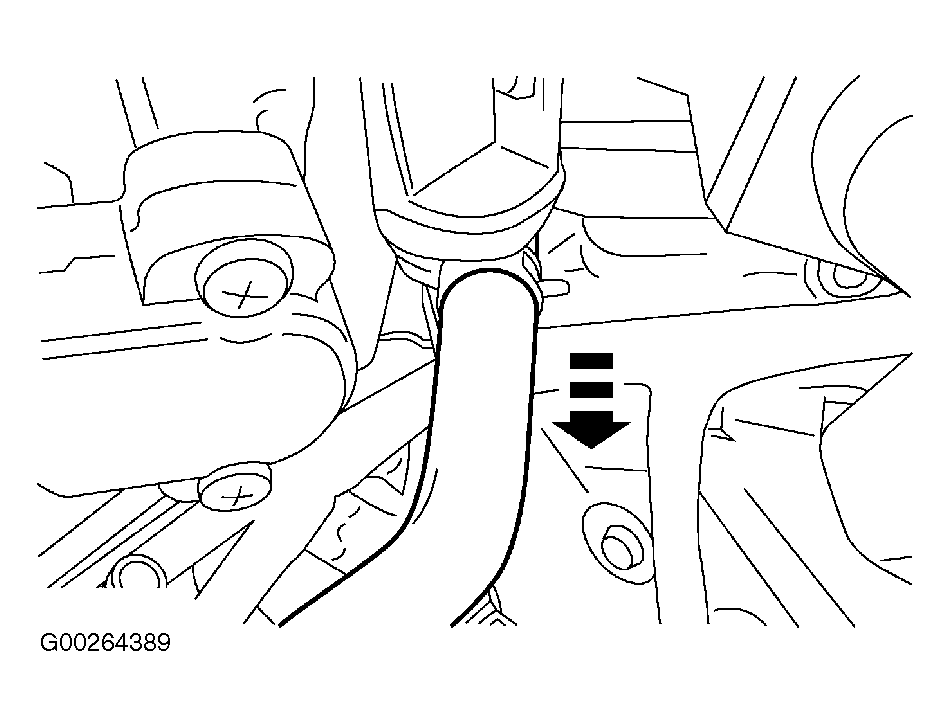

Fig 6: Locating VMV Vacuum Hose - Tribute (3.0L)
G00264389Courtesy of MAZDA MOTORS CORP.
Fig 7: Locating Harness Connectors - Tribute (3.0L)
G00264390Courtesy of MAZDA MOTORS CORP.
Fig 8: Locating PSP Sensor Harness Connector - Tribute (3.0L)
G00264391Courtesy of MAZDA MOTORS CORP.
Fig 9: Locating Wiring Harness Nut - Tribute (3.0L)
G00264392Courtesy of MAZDA MOTORS CORP.

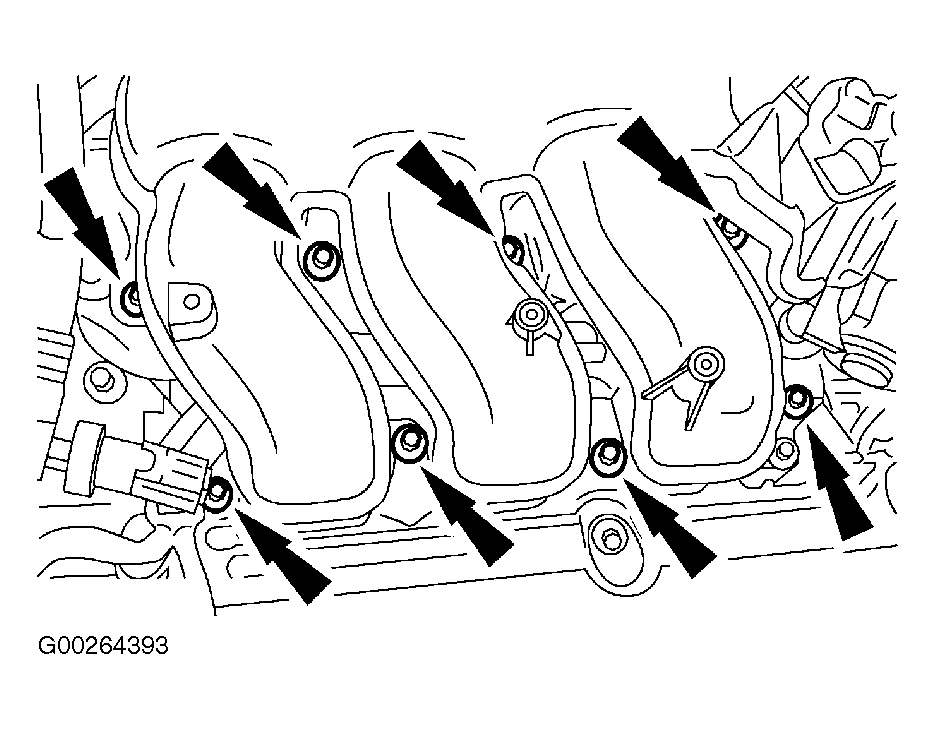

Fig 10: Removing Upper Intake Manifold - Tribute (3.0L)
G00264393Courtesy of MAZDA MOTORS CORP.
