Removal & Installation (B4000)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2003 Mazda Tribute, 2003 Mazda Protege5, 2003 Mazda Protege, 2003 Mazda MX-5 Miata, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: DO NOT smoke or carry an open flame of any type when working on or near any fuel-related components. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in personal injury.

CAUTION: Throttle body bore and plate area have a special coating and must not be cleaned, or possible damage to the throttle body may occur.

Remove the air cleaner outlet tube. See AIR CLEANER OUTLET PIPE .
Disconnect the Throttle Position (TP) sensor harness connector. See Fig 1.
Disconnect the accelerator cable and the cruise control cable (if equipped). See Fig 2.
Remove the throttle body. See Fig 3.
NOTE: Discard the gasket.
To install, reverse removal procedure. See TORQUE SPECIFICATIONS .

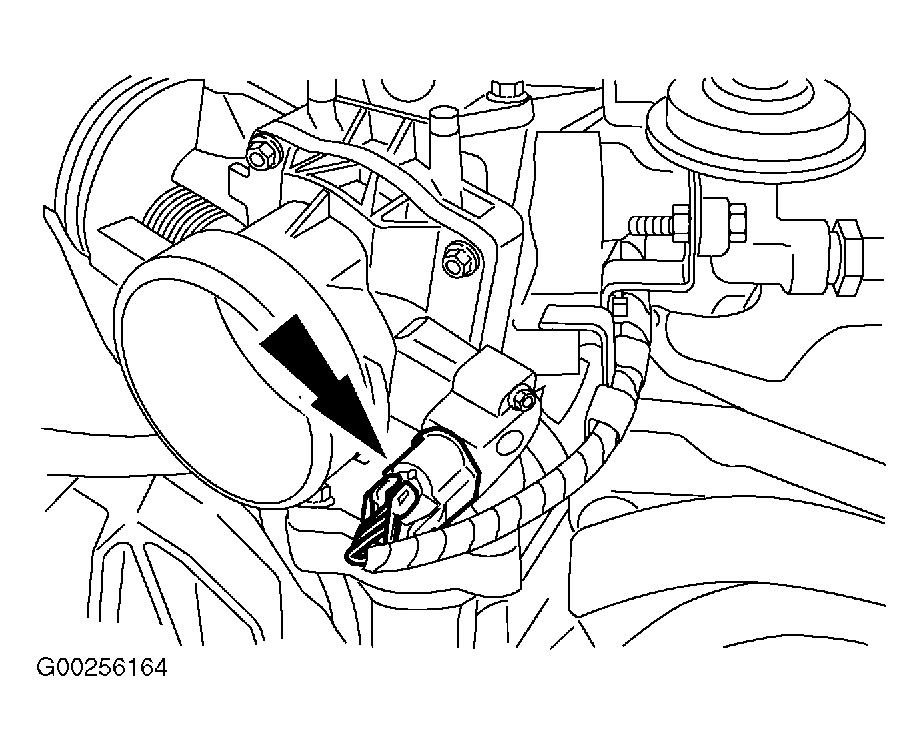

Fig 1: Locating TP Sensor Harness Connector - B4000

Courtesy of MAZDA MOTORS CORP.

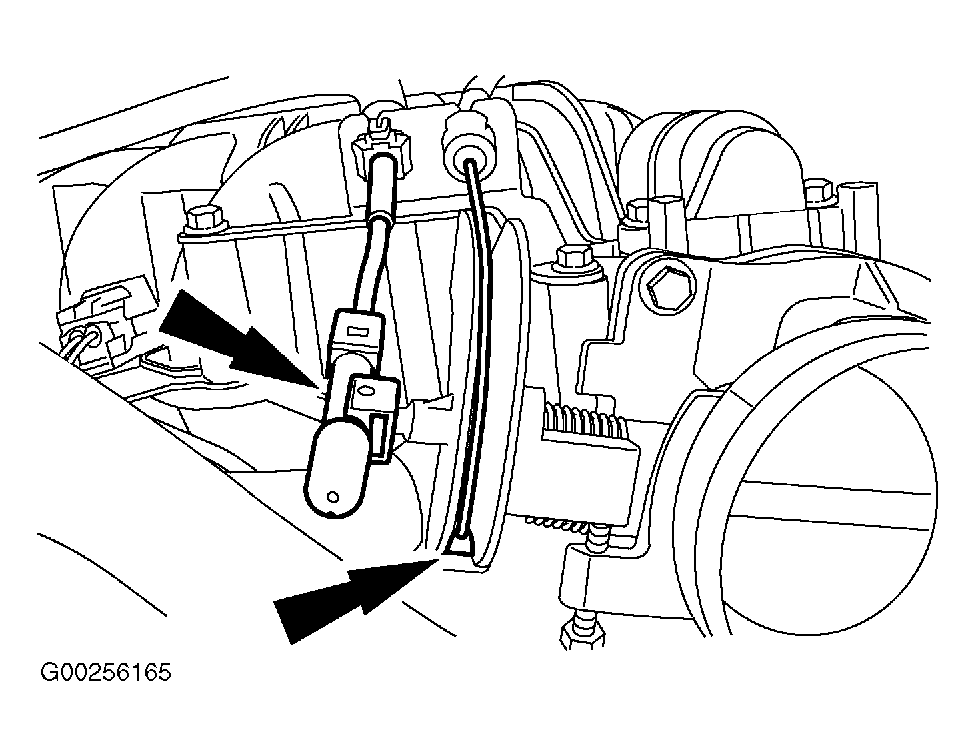

Fig 2: Locating Accelerator Cable & Cruise Control Cable - B4000

Courtesy of MAZDA MOTORS CORP.

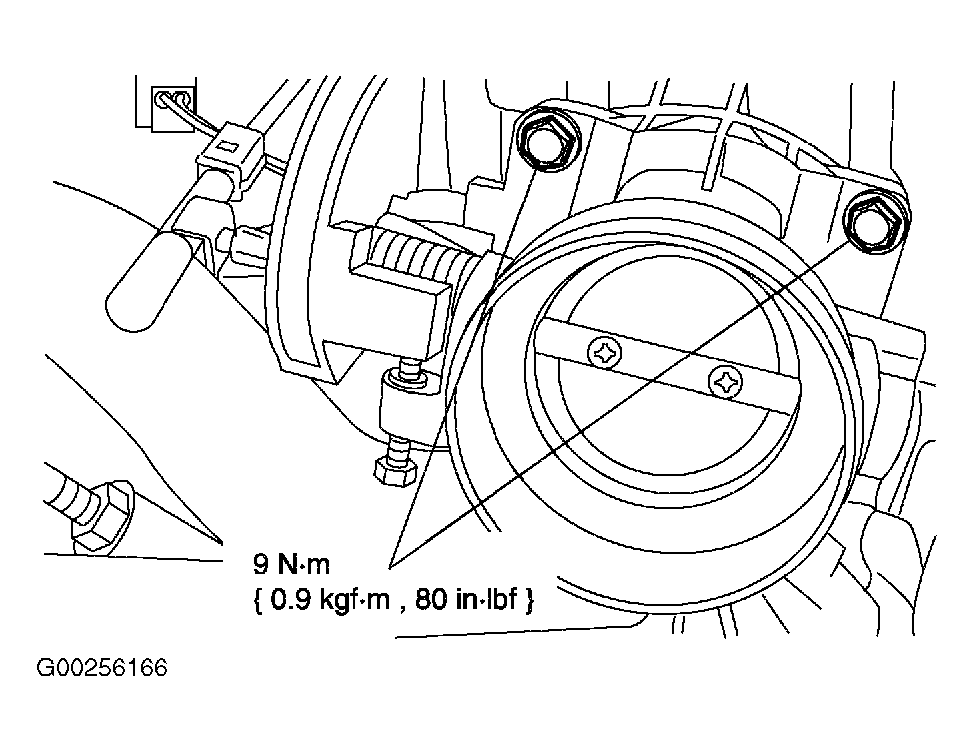

Fig 3: Removing & Installing Throttle Body - B4000

Courtesy of MAZDA MOTORS CORP.
