Removal & Installation (B2300)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2003 Mazda Tribute, 2003 Mazda Protege5, 2003 Mazda Protege, 2003 Mazda MX-5 Miata, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

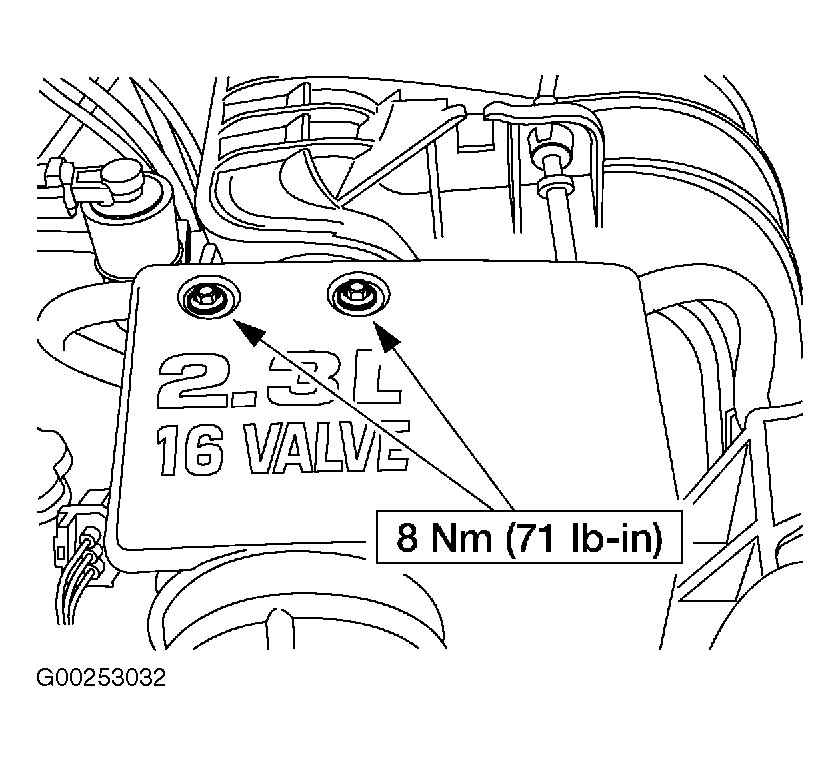

  1. Remove the accelerator control splash shield. See Figure.
  2. Disconnect the wiring harness and engine vent tube from the air cleaner outlet tube. See Fig 1.
  3. Loosen the clamps, the bolt and remove the engine air cleaner intake tube and duct. See Fig 2.
  4. Remove the accelerator cable and the cruise control cable (if equipped). See Fig 3.
  5. Disconnect the Throttle Position (TP) sensor harness connector. See Fig 4.
  6. Remove the bolts and the throttle body. See Fig 5.
  7. To install, reverse removal procedure. Tighten the throttle body bolts in the sequence shown. See Fig 6. See TORQUE SPECIFICATIONS .

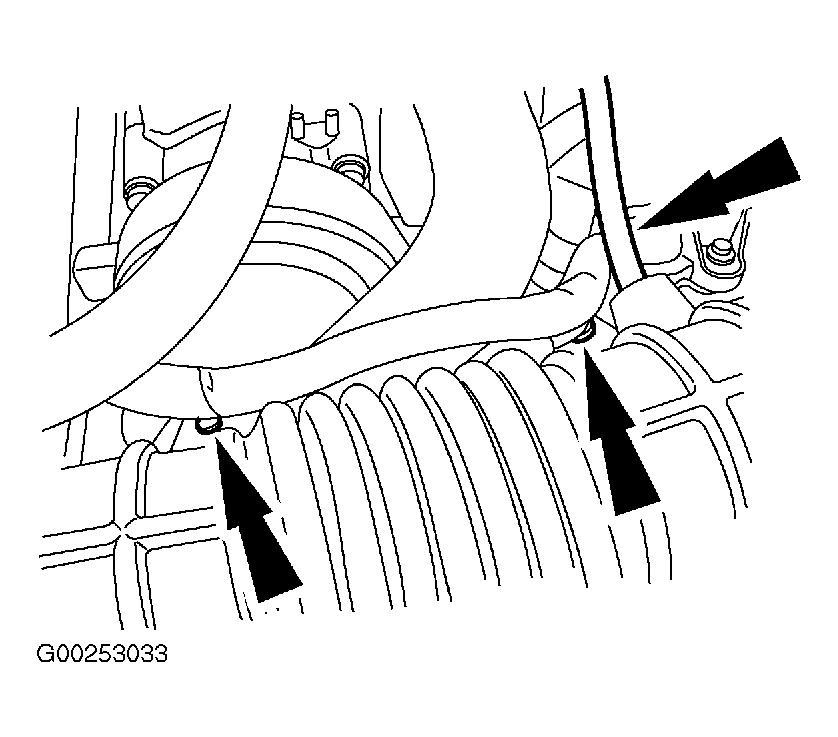

Fig 1: Locating Wiring Harness & Vent Tube - B2300
G00253033Courtesy of MAZDA MOTORS CORP.

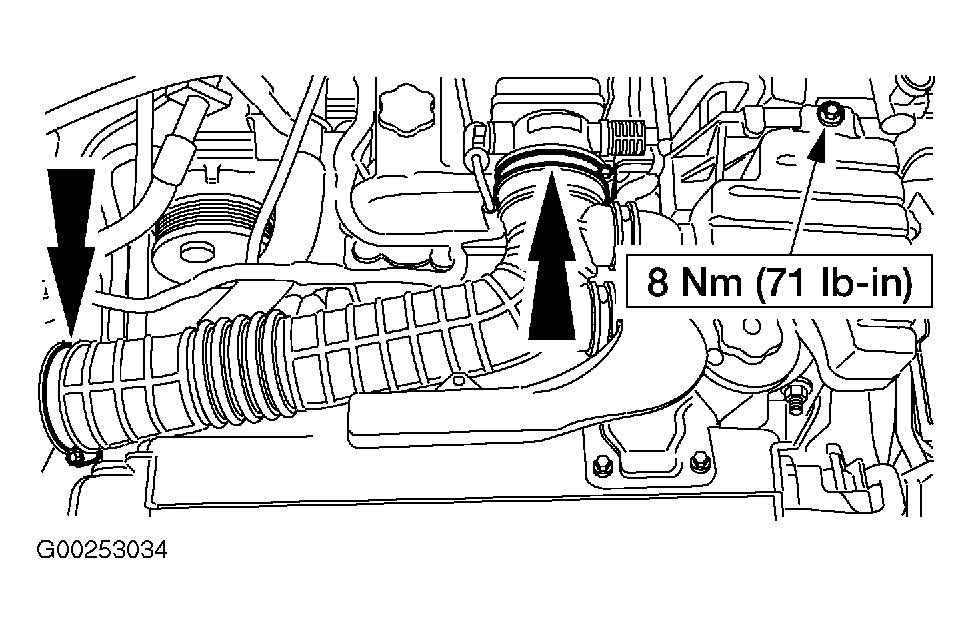

Fig 2: Removing & Installing Engine Air Cleaner Intake Tube & Duct - B2300
G00253034Courtesy of MAZDA MOTORS CORP.

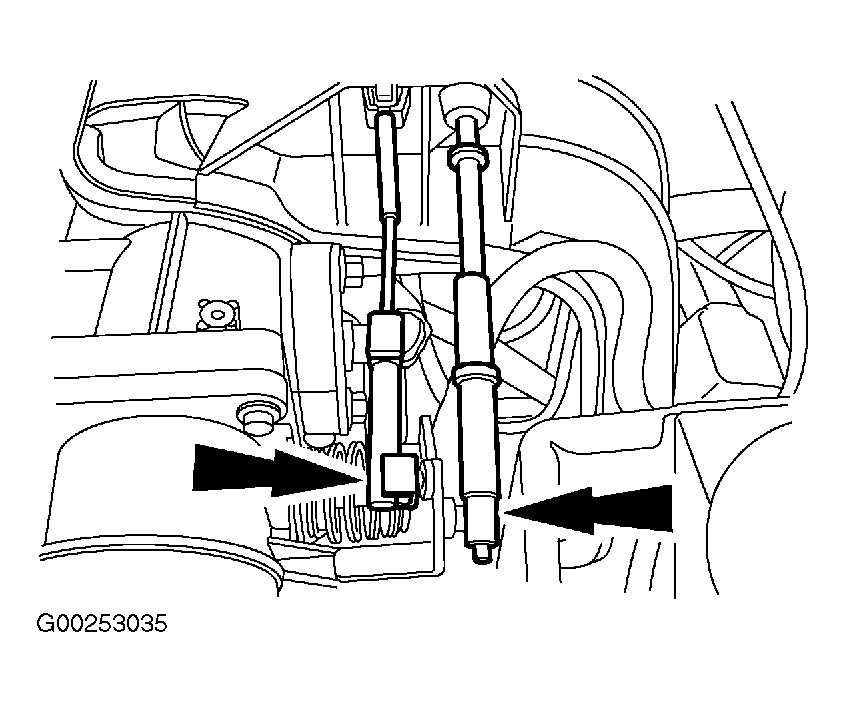

Fig 3: Removing & Installing Accelerator Cable & Cruise Control Cable
G00253035Courtesy of MAZDA MOTORS CORP.
Fig 4: Locating TP Sensor Harness Connector - B2300
G00253036Courtesy of MAZDA MOTORS CORP.

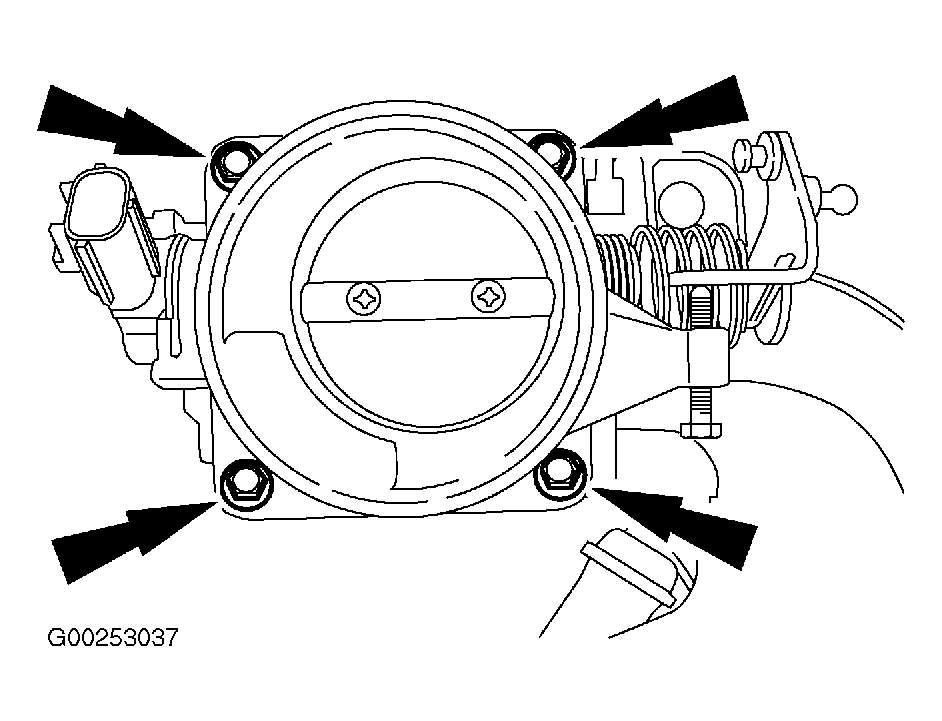

Fig 5: Removing Throttle Body - B2300
G00253037Courtesy of MAZDA MOTORS CORP.

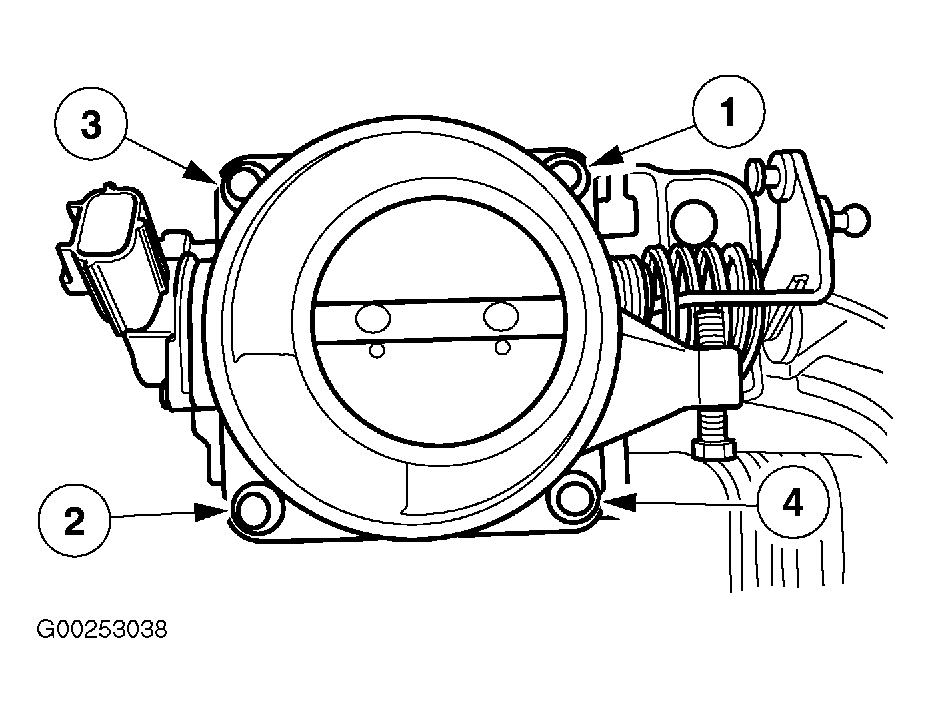

Fig 6: Throttle Body Bolt Tightening Sequence - B2300
G00253038Courtesy of MAZDA MOTORS CORP.
