Removal (Tribute 2.0L)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2003 Mazda Tribute, 2003 Mazda Protege5, 2003 Mazda Protege, 2003 Mazda MX-5 Miata, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Fuel supply lines will remain pressurized for long periods of time after engine shut down. This pressure must be relieved before disconnecting any fuel lines or fuel system components to prevent possible injury. See FUEL SYSTEM PRESSURE RELEASE  under FUEL SYSTEM. Failure to follow these instructions may result in personal injury.
  1. Remove fuel rail and Injectors. See FUEL RAILS & INJECTORS  under FUEL SYSTEM.
  2. Disconnect the Throttle Position (TP) sensor harness connector. See Fig 1.
  3. Disconnect the Idle Air Control (IAC) harness connector and unclip the harness from the bracket. See Fig 2.
  4. Disconnect the main engine control sensor wiring. See Fig 3. Remove the connector from the mounting bracket.
  5. Disconnect the Powertrain Control Module (PCM) wire harness from the bracket. See Fig 4.
  6. Disconnect the Heated Oxygen Sensor (HO2S) wiring harness from the bracket. See Fig 5.
  7. Remove the HO2S wiring harness retainer. See Fig 6.
  8. Disconnect the Cylinder Head Temperature (CHT) sensor harness connector. See Fig 7.
  9. Detach the CHT sensor wiring harness from the clip, and remove the clip. See Fig 8.
  10. Disconnect the brake booster vacuum supply hose. See Fig 9.
  11. Disconnect the 4 vacuum hoses. See Fig 10.
  12. Disconnect the Positive Crankcase Ventilation (PCV) vacuum hose. See Fig 11.
  13. Remove the alternator. See ALTERNATOR in appropriate CHARGING SYSTEM article in ELECTRICAL.
  14. Remove the Exhaust Gas Recirculation (EGR) valve bolts. See Fig 12.
    15. NOTE: Illustration shown with throttle body removed for clarity.
  15. Remove the intake manifold. Remove the 2 nuts and 5 bolts in the sequence shown in the illustration. See Fig 13.
Fig 1: Locating TP Sensor Harness Connector - Tribute (2.0L)
G00256293Courtesy of MAZDA MOTORS CORP.
Fig 2: Locating IAC Harness Connector - Tribute (2.0L)
G00256294Courtesy of MAZDA MOTORS CORP.
Fig 3: Locating Main Engine Control Sensor Harness Connector - Tribute (2.0L)
G00256295Courtesy of MAZDA MOTORS CORP.
Fig 4: Locating PCM Wiring Harness Bracket - Tribute (2.0L)
G00256296Courtesy of MAZDA MOTORS CORP.
Fig 5: Locating H2OS Wiring Harness Bracket - Tribute (2.0L)
G00256297Courtesy of MAZDA MOTORS CORP.
Fig 6: Locating HO2S Wiring Harness Retainer - Tribute (2.0L)
G00256298Courtesy of MAZDA MOTORS CORP.
Fig 7: Locating CHT Sensor Harness Connector - Tribute (2.0L)
G00264330Courtesy of MAZDA MOTORS CORP.
Fig 8: Locating CHT Sensor Wiring Harness Bracket - Tribute (2.0L)
G00264331Courtesy of MAZDA MOTORS CORP.
Fig 9: Locating Brake Booster Vacuum Hoses - Tribute (2.0L)
G00264332Courtesy of MAZDA MOTORS CORP.
Fig 10: Locating Vacuum Hoses - Tribute (2.0L)
G00264333Courtesy of MAZDA MOTORS CORP.
Fig 11: Locating PCV Vacuum Hoses - Tribute (2.0L)
G00264334Courtesy of MAZDA MOTORS CORP.

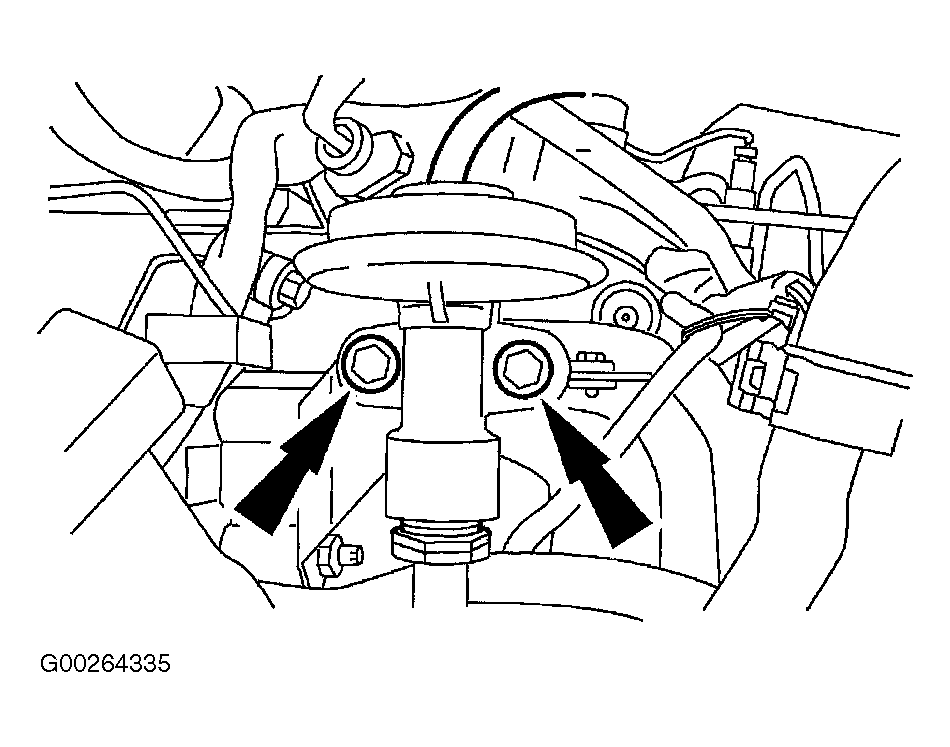

Fig 12: Locating EGR Valve Bolts - Tribute (2.0L)
G00264335Courtesy of MAZDA MOTORS CORP.

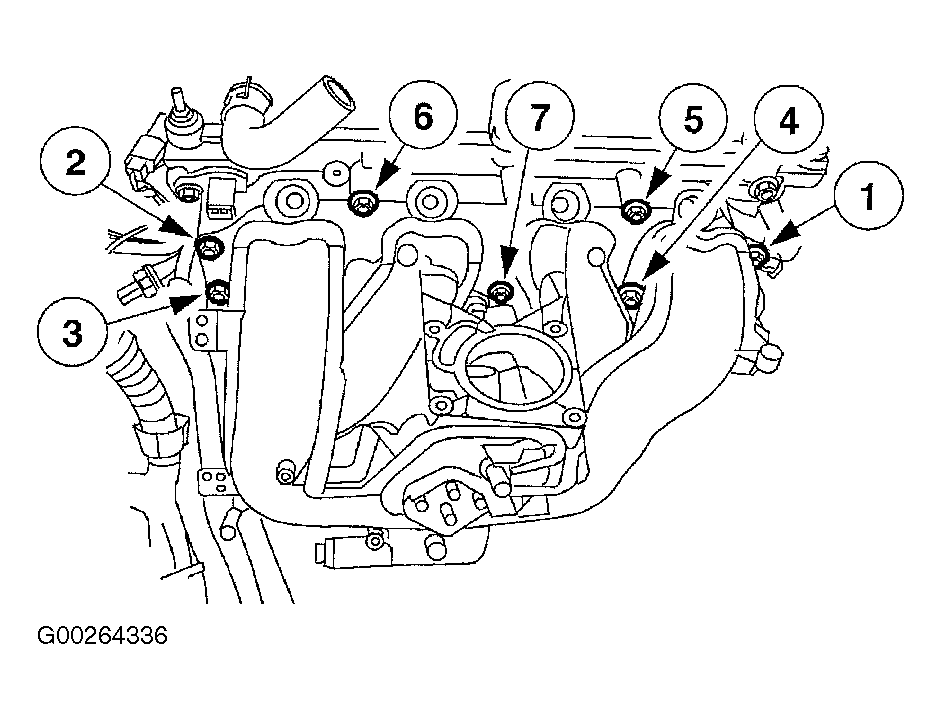

Fig 13: Intake Manifold Bolt Loosening Sequence - Tribute (2.0L)
G00264336Courtesy of MAZDA MOTORS CORP.
