Removal & Installation (Miata)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2003 Mazda Tribute, 2003 Mazda Protege5, 2003 Mazda Protege, 2003 Mazda MX-5 Miata, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Hot engines and intake-air system can cause severe burns. Turn off the engine and wait until it and the intake air system are cool before removing the intake air system.

Disconnect the negative battery cable.
Drain the engine coolant from radiator. See appropriate COOLING SYSTEM - MECHANICAL article in ENGINES.
Remove in the order indicated in the illustration. See Fig 1.
To install, reverse removal procedure. See TORQUE SPECIFICATIONS . Install the intake manifold gasket with convex side of the gasket facing the intake manifold side. See Fig 2. Install the dynamic chamber gasket with the convex side of the gasket facing the intake manifold side. See Fig 3. Tighten the dynamic chamber bracket bolts firmly, then tighten the dynamic chamber side bolt before tightening the fuel distributor side bolt.

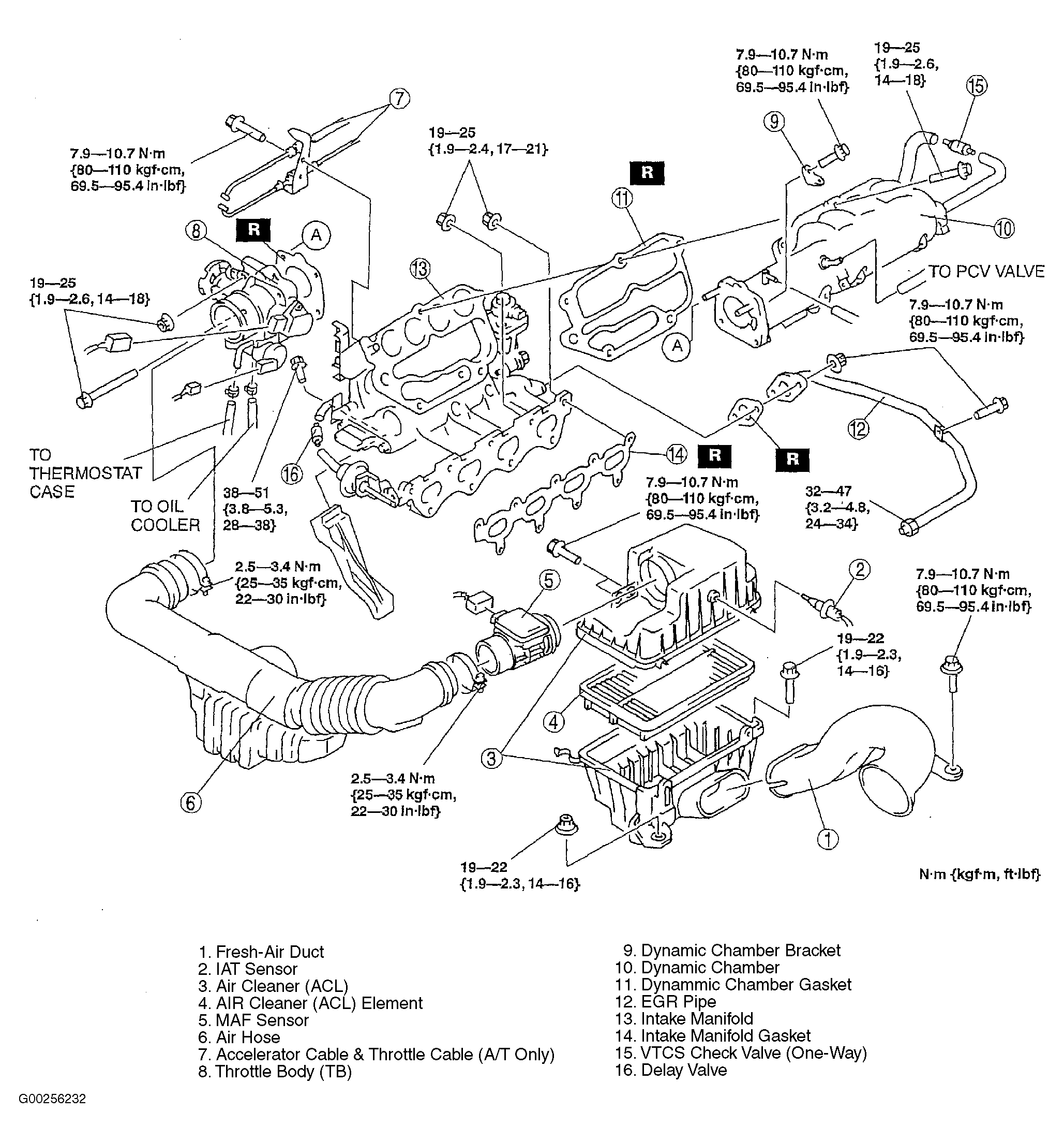

Fig 1: Removing & Installing Intake Air System - Miata

Courtesy of MAZDA MOTORS CORP.

Fig 2: Installing Intake Manifold Gasket - Miata

Courtesy of MAZDA MOTORS CORP.

Fig 3: Installing Dynamic Chamber Gasket - Miata

Courtesy of MAZDA MOTORS CORP.
