Removal & Installation (B3000)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2003 Mazda Tribute, 2003 Mazda Protege5, 2003 Mazda Protege, 2003 Mazda MX-5 Miata, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Remove the crankcase ventilation tube. See Fig 1.
Loosen the clamps and remove the air cleaner outlet tube. See Fig 2.

NOTE: Visually check the air cleaner intake tube and duct for any foreign objects or restrictions before installation.

To install, reverse removal procedure.

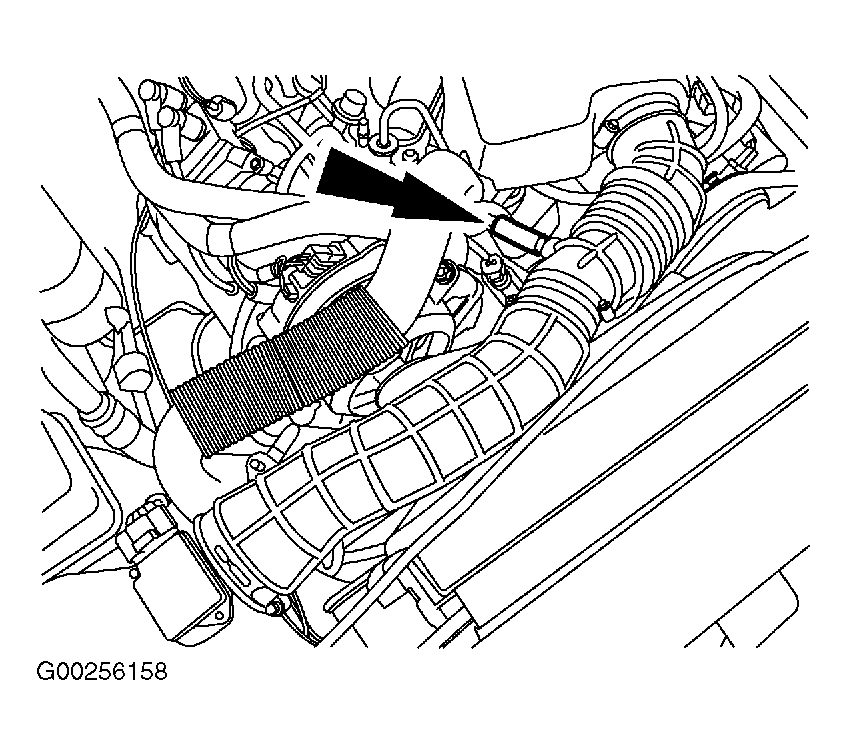

Fig 1: Removing & Installing Crankcase Ventilation Tube - B3000

Courtesy of MAZDA MOTORS CORP.

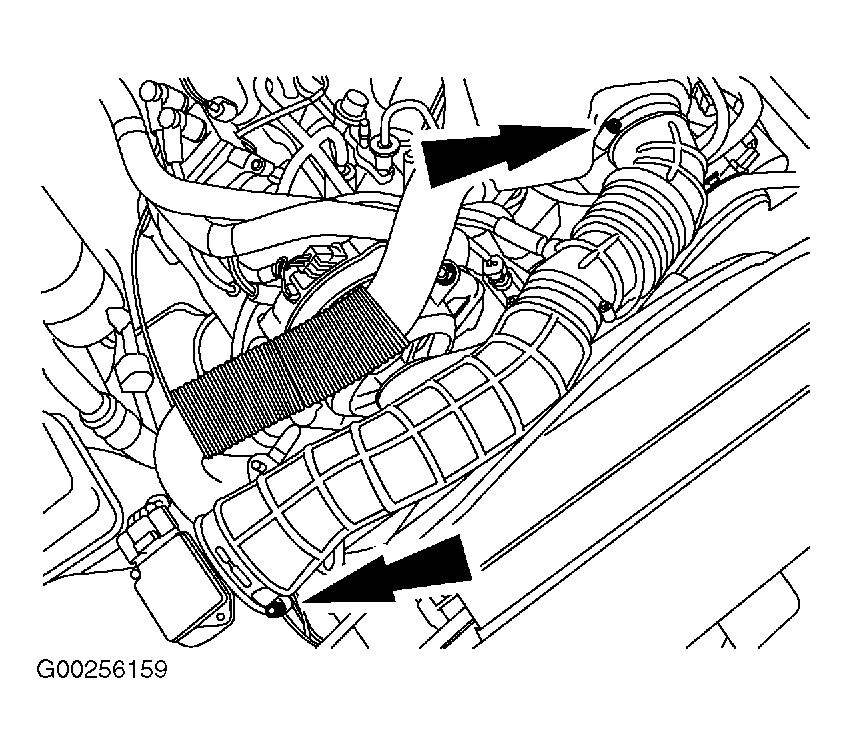

Fig 2: Removing & Installing Air Cleaner Outlet Tube - B3000

Courtesy of MAZDA MOTORS CORP.
