Variable Air Duct (VAD) Shutter Valve Inspection - Mazda6
WARNING: This page is about a different car, the 2003 Mazda Protege5, 2003 Mazda Protege, 2003 Mazda MX-5 Miata, 2003 Mazda MPV, and 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

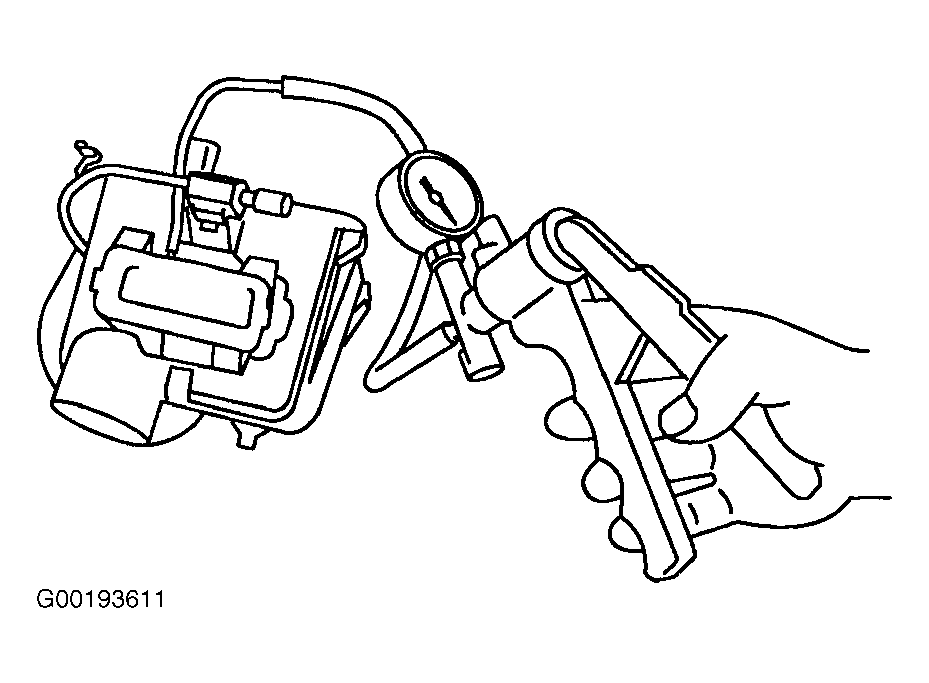

Remove air cleaner case. Disconnect vacuum hose from VAD shutter valve actuator. Connect vacuum pump to VAD shutter valve actuator. See Fig 1. Apply vacuum and verify rod moves. See VAD SHUTTER VALVE ACTUATOR SPECIFICATIONS table. If rod does not move as specified, replace air cleaner. See Fig 2.
VAD SHUTTER VALVE ACTUATOR SPECIFICATIONS
| Vacuum (in. Hg) | Rod Movement |
|---|---|
| Less Than -3.0 | Starts To Move |
| More Than -10.4 | Fully Pulled |
