Instrument Cluster

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Access and monitor "PCM_MSG", "TCM_MSG" and "ABS_MSG" of PID using the SST (WDS or equivalent).
  2. Referring to PID/DATA MONITOR, confirm display status of PID. See Figure.
  3. Referring to Instrument Cluster Malfunction Locator table, determine malfunctioning part of CAN system. See Figure and Fig 1 .

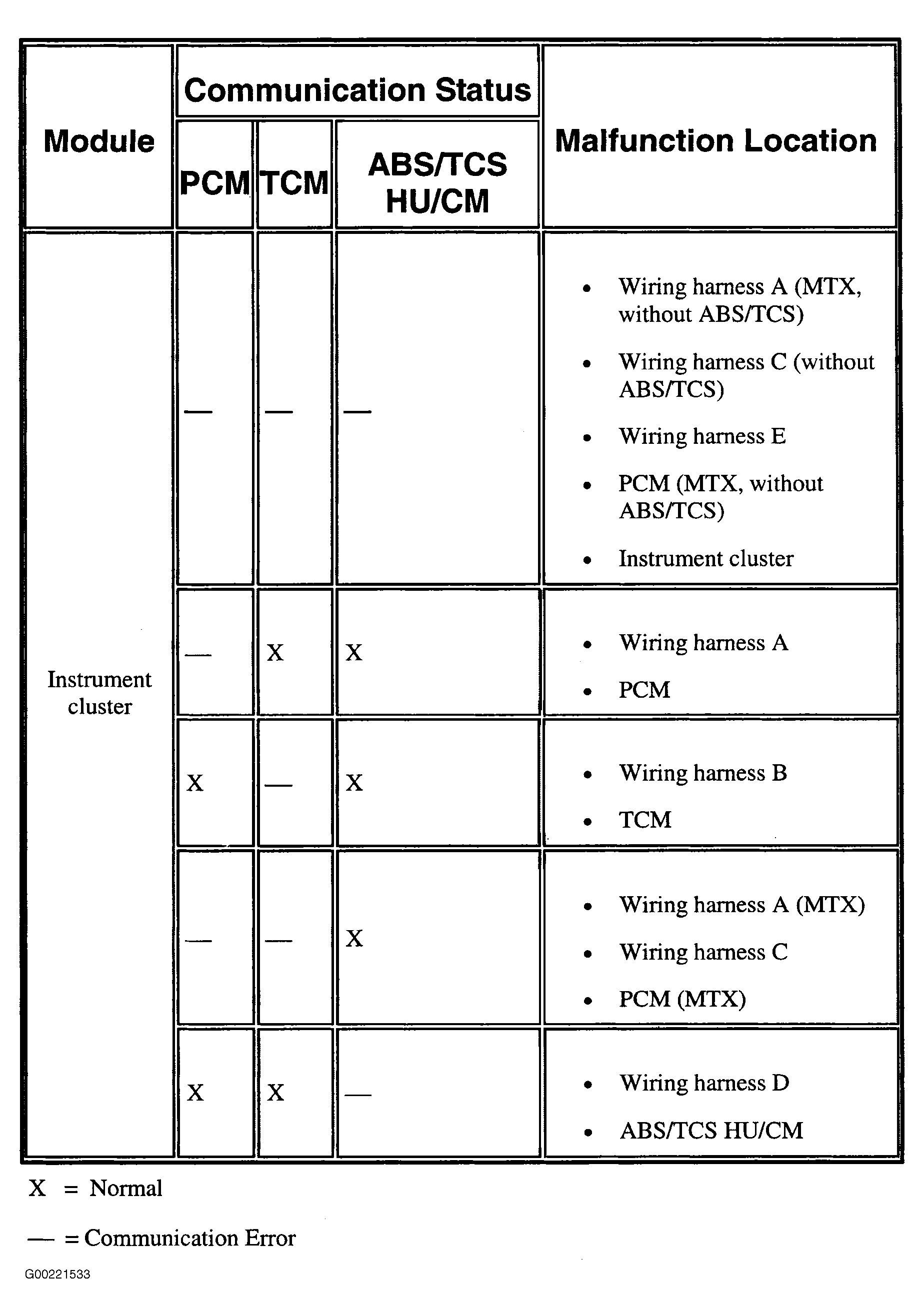

Fig 1: Instrument Cluster Malfunction Locator Table
G00221533Courtesy of MAZDA MOTORS CORP.
