Diagnostic Procedure

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. If FREEZE FRAME DATA has been recorded, go to next step. If FREEZE FRAME DATA has not been recorded, record FREEZE FRAME DATA. Go to next step.
  2. Verify Related Repair Information Availability -  Check for related Service Bulletins and/or on-line repair information availability. If any related repair information is available, perform repair or diagnosis according to available repair information. If vehicle is not repaired, go to next step. If related repair information is not available, go to next step.
  3. Verify Related Pending Code Or Stored DTCs -  Turn ignition off, then on (engine off). Verify related PENDING CODE or stored DTCs. If no other DTCs are present, go to next step. If DTC P2406 is present, go to DTC P2406: EVAPORATIVE EMISSION SYSTEM LEAK DETECTION PUMP SENSE CIRCUIT - HIGH INPUT .

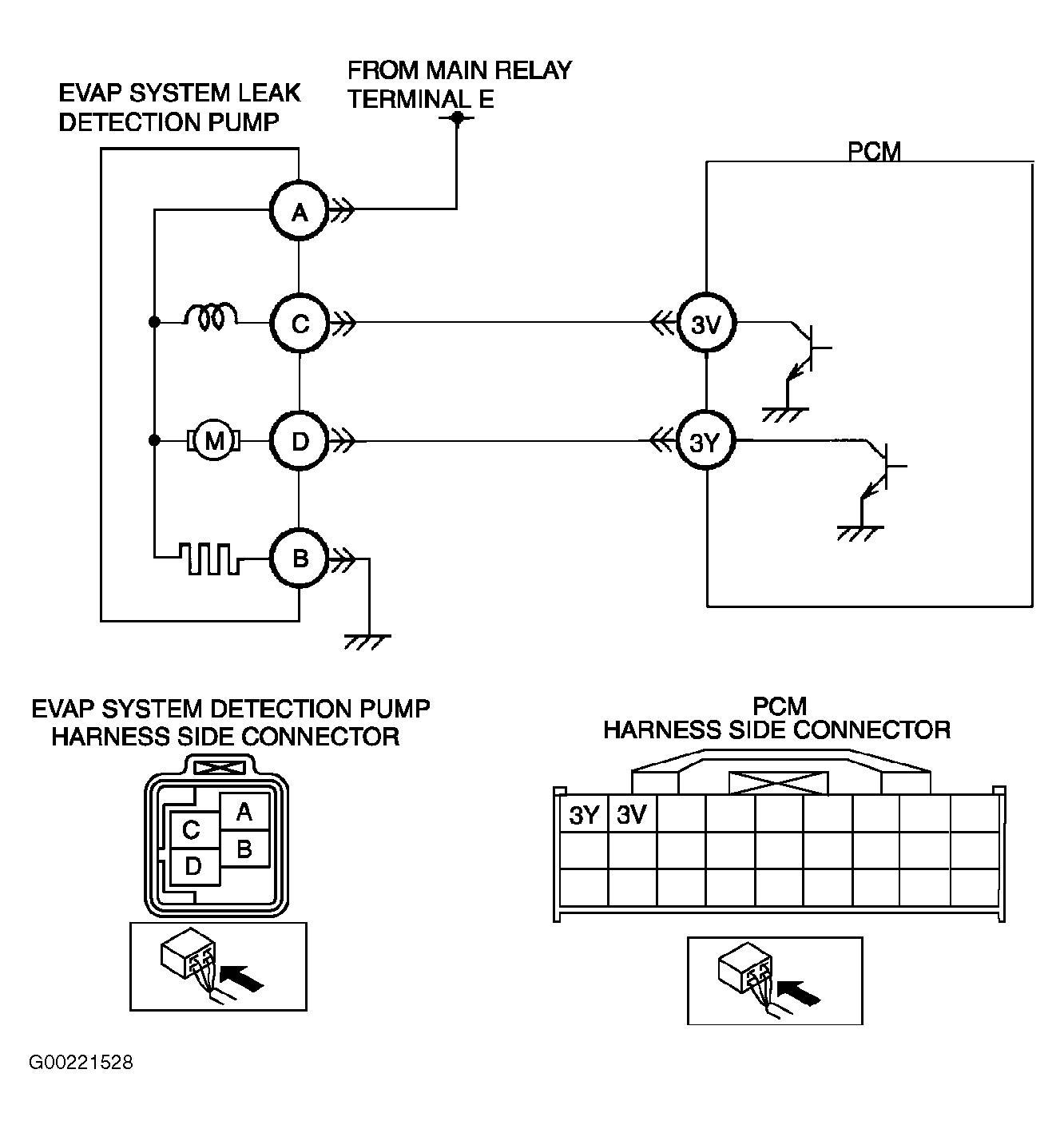

  4. Check EVAP System Leak Detection Pump Circuit For Short To Power -  Turn ignition on. Disconnect EVAP system leak detection pump connector. Measure voltage between EVAP system leak detection pump 4-pin harness connector terminal "D" and body ground. See Figure. If battery voltage is not present, go to next step. If battery voltage is present, repair short circuit to power in Pink wire between EVAP system leak detection pump 4-pin harness connector terminal "D" and PCM 27-pin harness connector terminal "3Y" or replace wiring harness. See ENGINE PERFORMANCE in SYSTEM WIRING DIAGRAMS article in ELECTRICAL. After repair, go to next step.
  5. Verify Trouble Shooting Of DTC P2402 Is Completed -  Make sure to reconnect all disconnected connectors. Clear DTC from PCM memory using WDS or equivalent. Turn ignition off. Start engine and perform MODE 4 - EVAP SYSTEM REPAIR VERIFICATION DRIVE MODE  under DRIVE CYCLES. If PENDING CODE of same DTC is not present, go to next step. If PENDING CODE of same DTC is present, replace PCM. For PCM removal and installation, see POWERTRAIN CONTROL MODULE under COMPUTERIZED ENGINE CONTROLS in REMOVAL & INSTALLATION article. After repair, go to next step.
  6. Verify After Repair Procedure -  Using scan tool, perform After Repair Procedure. See AFTER REPAIR PROCEDURE . If any DTCs are present, go to appropriate DTC inspection. Refer to DIAGNOSTIC TROUBLE CODE DEFINITIONS . If no DTCs are present, trouble shooting is complete.
