Diagnostic Procedure

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. If FREEZE FRAME DATA has been recorded, go to next step. If FREEZE FRAME DATA has not been recorded, record FREEZE FRAME DATA. Go to next step.
  2. Verify Related Repair Information Availability -  Check for related Service Bulletins and/or on-line repair information availability. If any related repair information is available, perform repair or diagnosis according to available repair information. If vehicle is not repaired, go to next step. If related repair information is not available, go to next step.
  3. Classify APP Sensor Or Harness Malfunction -  Connect WDS or equivalent. Access APP1 PID. Disconnect throttle body 6-pin harness connector. Connect fused jumper wire between APP sensor 6-pin harness connector terminals "D" (Gray wire) and "F" (White wire). See Fig 1. If APP1 PID reading is about 100 percent, go to next step. If APP1 PID reading is not about 100 percent, go to step  5.

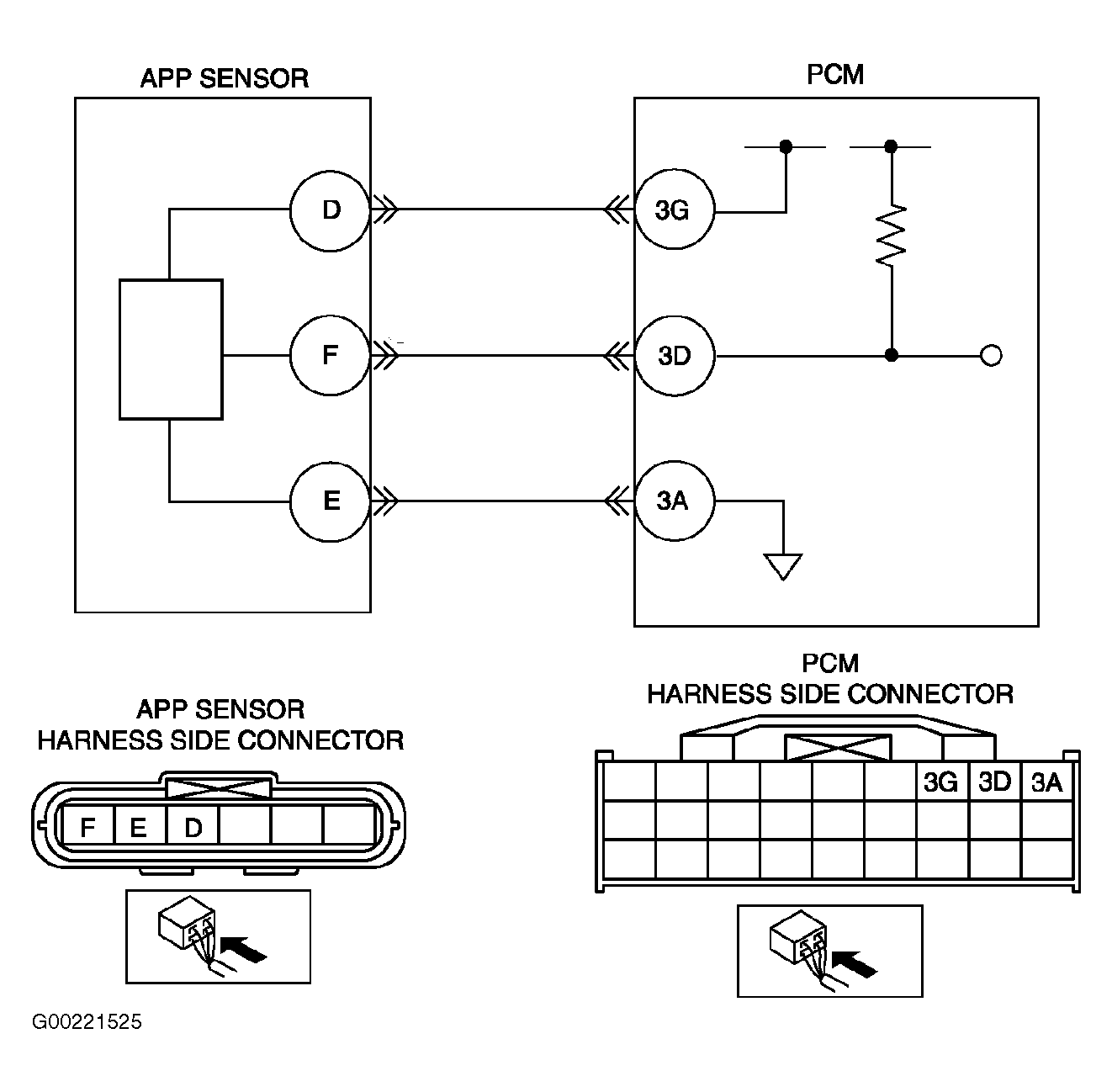

    Fig 1: Identifying Accelerator Pedal Position Sensor Circuits & Harness Connector Terminals
    G00221525Courtesy of MAZDA MOTORS CORP.
  4. Inspect APP Sensor -  Perform APP sensor inspection. Refer to ACCELERATOR PEDAL POSITION SENSOR under ENGINE SENSORS & SWITCHES in SYSTEM & COMPONENT TESTING - MAZDA6, MIATA, MPV, PROTEGE & PROTEGE5 article. If APP sensor is okay, inspect for poor APP sensor 6-pin connector terminal "D" connection. Repair or replace as necessary. After repair, go to step  8. If APP sensor is faulty, replace APP sensor. After repair, go to step  8.
  5. Inspect Power Supply Circuit Voltage At APP Sensor Connector -  Turn ignition on, engine off. Measure voltage at APP sensor 6-pin harness connector terminal "D" (Gray wire). If voltage reading is 4.5-5.5 volts, go to next step. If voltage reading is not 4.5-5.5 volts, repair open circuit in Gray wire between APP sensor 6-pin harness connector terminal "D" and PCM 27-pin harness connector terminal "3G" or replace wire harness. See ENGINE PERFORMANCE in SYSTEM WIRING DIAGRAMS article in ELECTRICAL. After repair, go to step  8.
  6. Verify APP1 Signal Circuit For Open Circuit -  Turn ignition off. Check for continuity in White wire between APP sensor 6-pin harness connector terminal "F" and PCM 27-pin harness connector terminal "3D". If continuity is present, go to next step. If continuity is not present, repair open circuit in White wire between APP sensor 6-pin harness connector terminal "F" and PCM 27-pin harness connector terminal "3D" or replace wire harness. After repair, go to step  8.
  7. Verify APP1 Signal Circuit For Short To Ground -  Check for continuity between APP sensor 6-pin harness connector terminal "F" and body ground. Is continuity is not present, go to next step. If continuity is present, repair short circuit to ground in White wire between APP sensor 6-pin harness connector terminal "F" and PCM 27-pin harness connector terminal "3D" or replace wire harness. After repair, go to next step.
  8. Verify Trouble Shooting Of DTC P2122 Is Completed -  Make sure to reconnect all disconnected connectors. Clear DTC from PCM memory using WDS or equivalent. Turn ignition off. Start engine and warm up completely. If PENDING CODE of same DTC is not present, go to next step. If PENDING CODE of same DTC is present, replace PCM. For PCM removal and installation, see POWERTRAIN CONTROL MODULE under COMPUTERIZED ENGINE CONTROLS in REMOVAL & INSTALLATION article. After repair, go to next step.
  9. Verify After Repair Procedure -  Using scan tool, perform After Repair Procedure. See AFTER REPAIR PROCEDURE . If any DTCs are present, go to appropriate DTC inspection. Refer to DIAGNOSTIC TROUBLE CODE DEFINITIONS . If no DTCs are present, trouble shooting is complete.
