Variable Valve Timing (MAZDA6 & MIATA)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2003 Mazda Tribute, 2003 Mazda Protege5, 2003 Mazda Protege, 2003 Mazda MX-5 Miata, and 2003 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

The Variable Valve Timing (VVT) system continuously varies the open/close timing of the intake valves under all driving conditions, city or highway, low or high speed. System consists of a VVT actuator and an Oil Control Valve (OCV). See Fig 1-Fig 3 . The OCV operates in conjunction with the PCM that monitors engine RPM, Mass Airflow (MAF) and Engine Coolant Temperature (ECT) sensors.

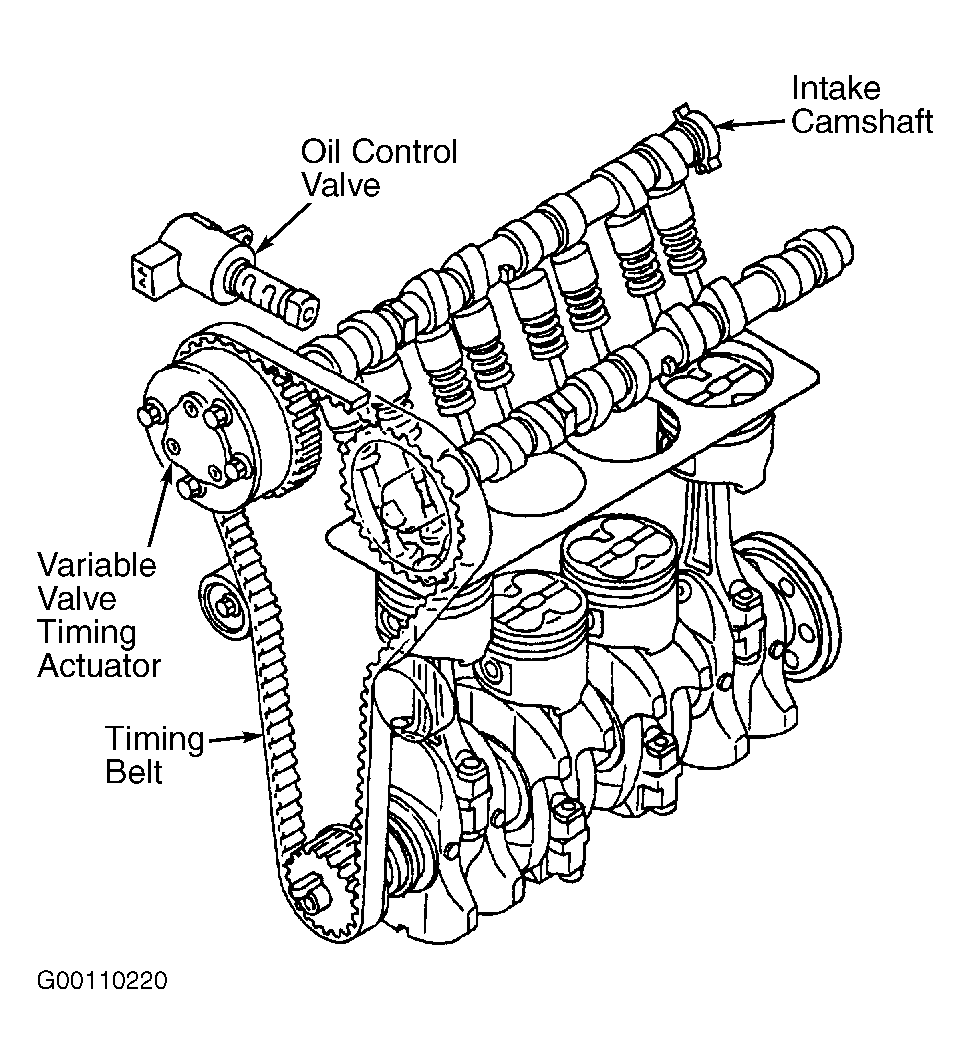

Fig 1: Identifying Variable Valve Timing (VVT) Components (Mazda6 - 2.3L)

Courtesy of MAZDA MOTORS CORP.

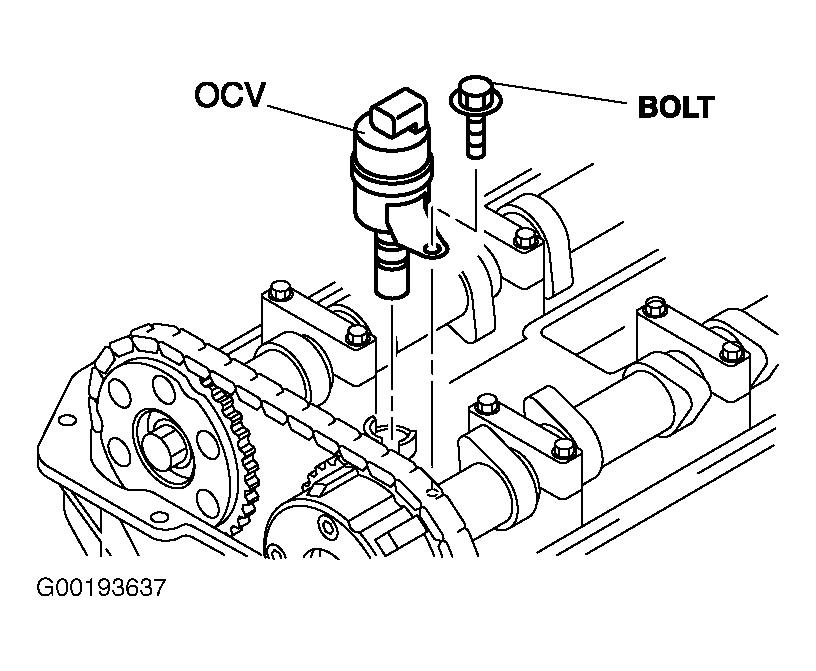

Fig 2: Identifying Variable Valve Timing (VVT) Components (Mazda6 - 3.0L)

Courtesy of MAZDA MOTORS CORP.

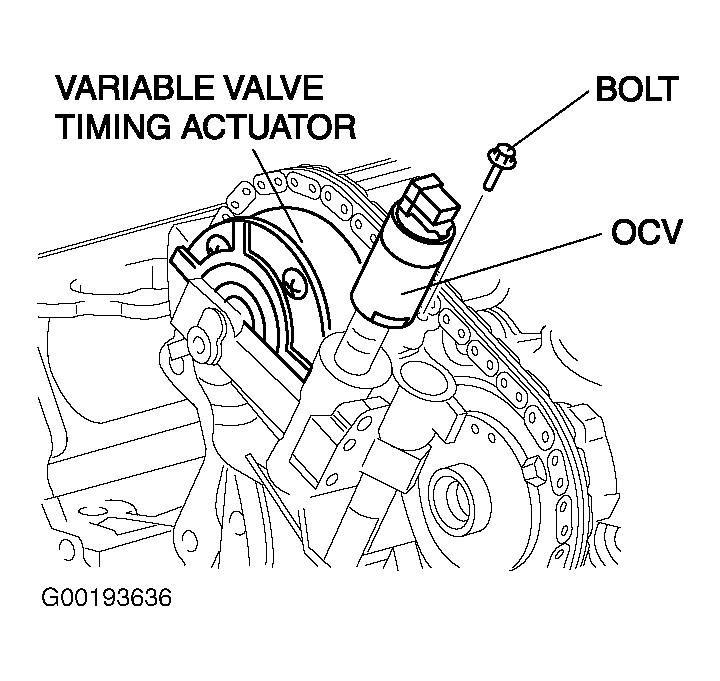

Fig 3: Identifying Variable Valve Timing (VVT) Components (Miata)

Courtesy of MAZDA MOTORS CORP.
