Oil Pump Construction/Operation: Construction

WARNING: This page is about a different car, the 2008 Mazda RX-8, 2007 Mazda RX-8, 2006 Mazda RX-8, 2005 Mazda RX-8, and 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

The oil pump, mounted behind the torque converter, is driven directly by the torque converter.
Inner and outer rotors are built into the pump housing in the oil pump.
The inner rotor is driven by the torque converter in the same rotational direction as the engine.

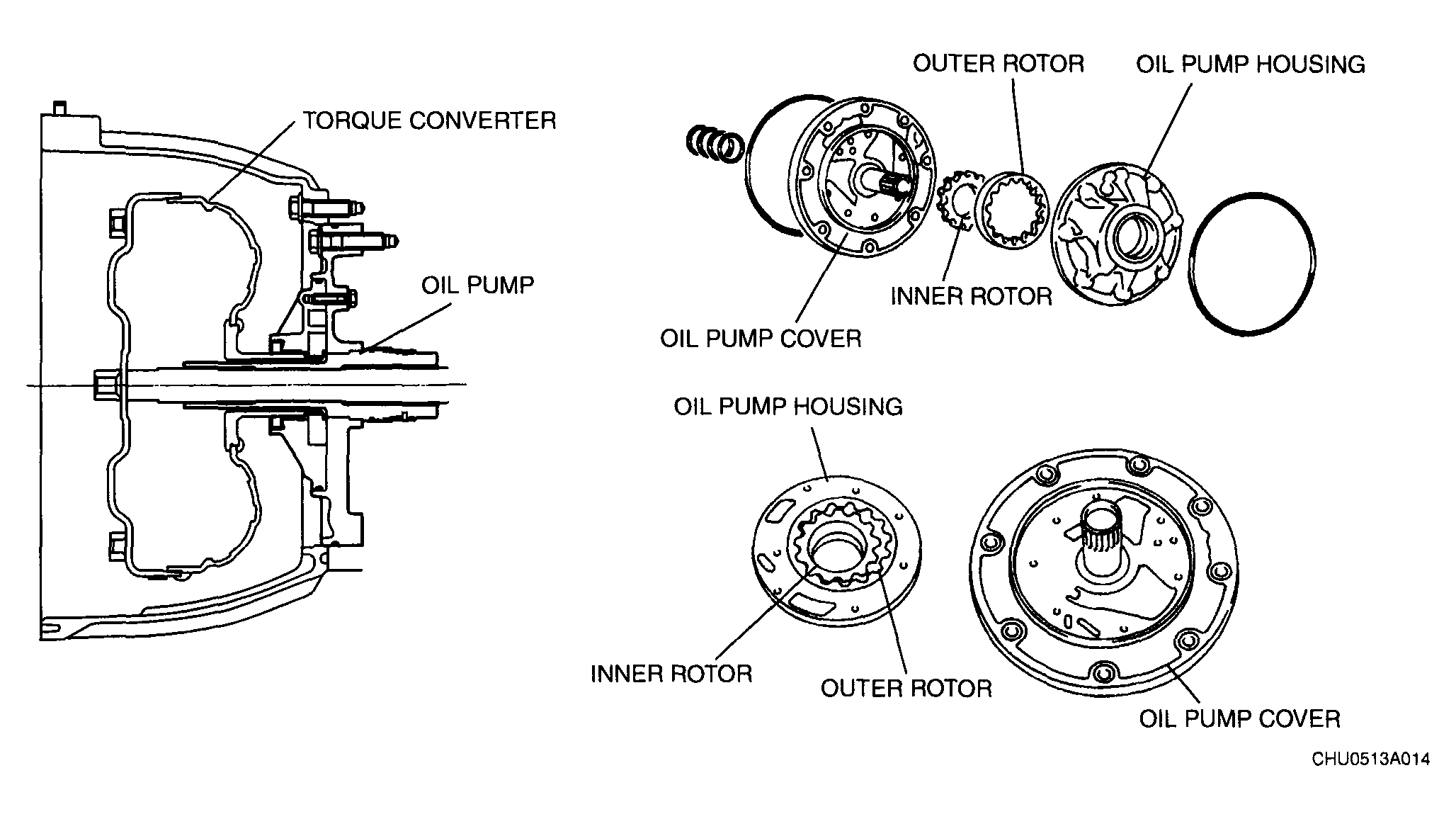

Fig 1: Identifying Oil Pump Construction

Courtesy of MAZDA MOTORS CORP.
