When The Clutch Pressure Applied
WARNING: This page is about a different car, the 2008 Mazda RX-8, 2007 Mazda RX-8, 2006 Mazda RX-8, 2005 Mazda RX-8, and 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

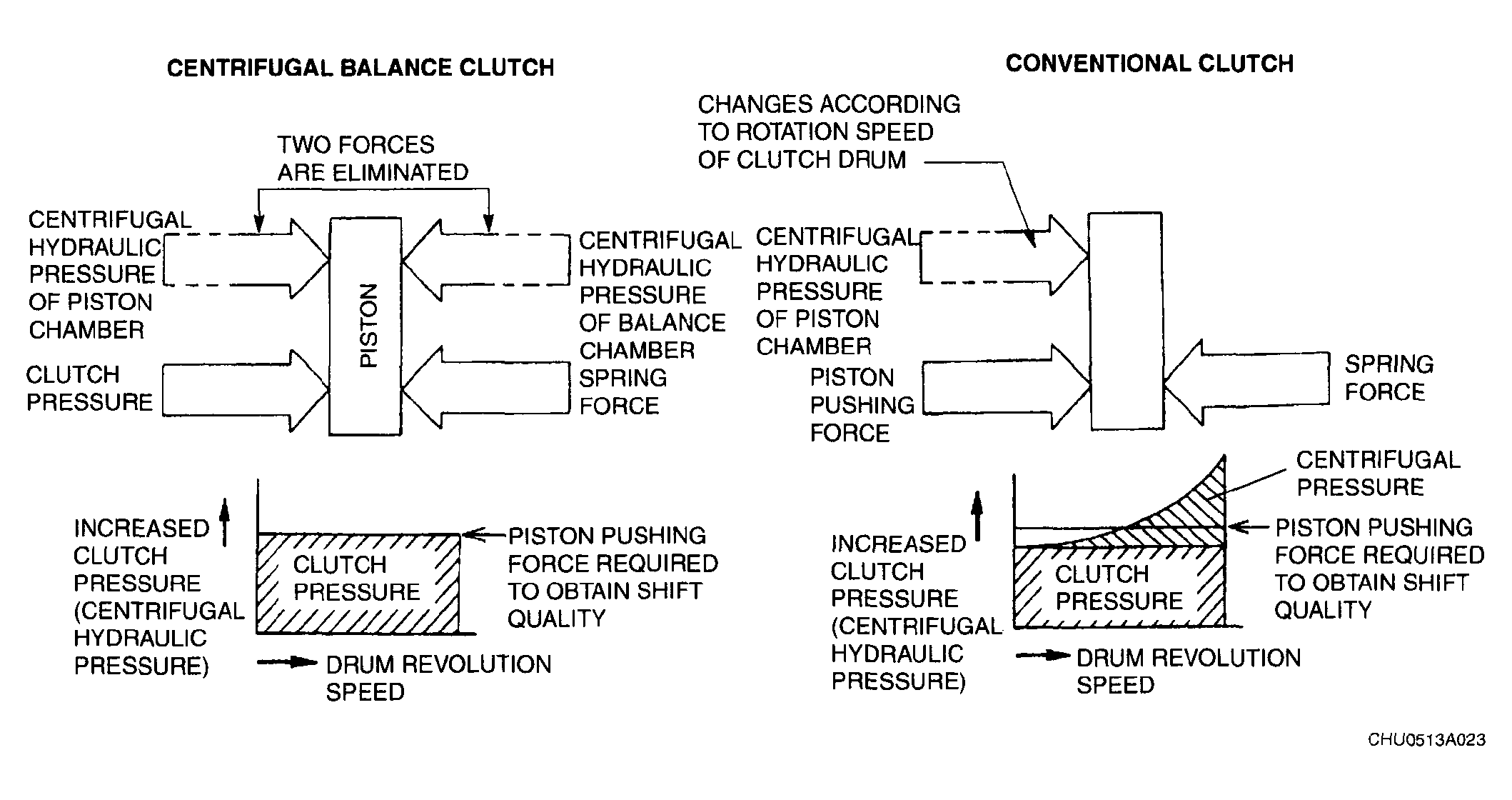

- When clutch pressure is applied to the clutch chamber, the clutch pressure overcomes the oil pressure and the spring force in the opposite centrifugal balance clutch chamber, and pushes the piston to engage the clutches. Because the centrifugal force acting on the clutch pressure in the clutch chamber is canceled by another centrifugal force acting on the ATF filled in the centrifugal balance clutch chamber, the influence of the centrifugal force created by the clutch drum revolution speed is eliminated. As a result, stable piston pushing force is obtained in all rotation ranges, and smoother shifts can be made.
