N position
WARNING: This page is about a different car, the 2008 Mazda RX-8, 2007 Mazda RX-8, 2006 Mazda RX-8, 2005 Mazda RX-8, and 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

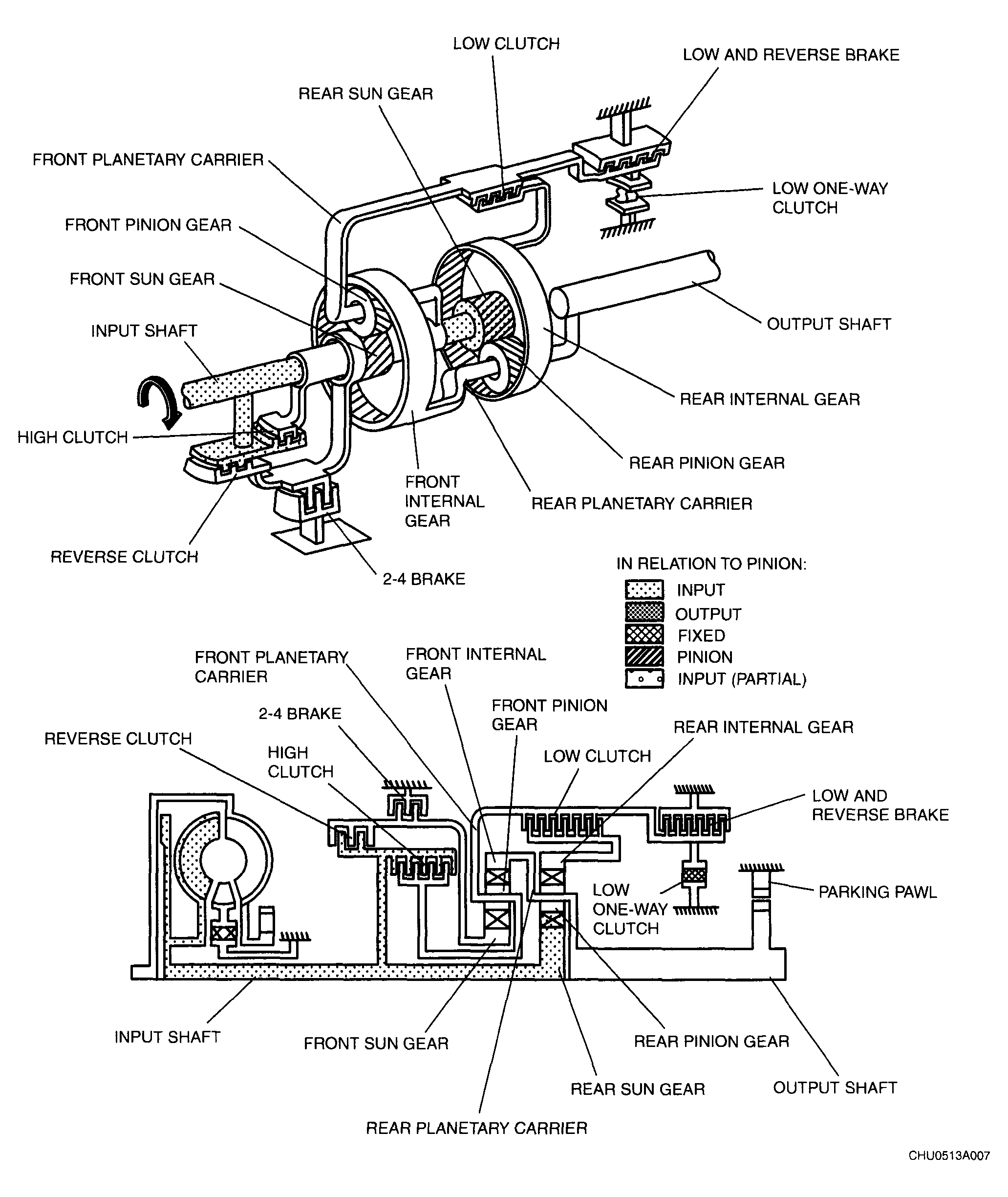

- Driving force from the input shaft is transmitted to the rear sun gear and the reverse and high clutch drum. However, since none of the clutches are operating, the driving force is not transmitted to the output shaft. Accordingly, the vehicle is the vehicle is able to roll.
