Electronic control system

WARNING: This page is about a different car, the 2008 Mazda RX-8, 2007 Mazda RX-8, 2006 Mazda RX-8, 2005 Mazda RX-8, and 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

The TCM sends signals that suit current driving conditions to the solenoids of the hydraulic control system, according to input signals from sensors and switches, and shifts gears.

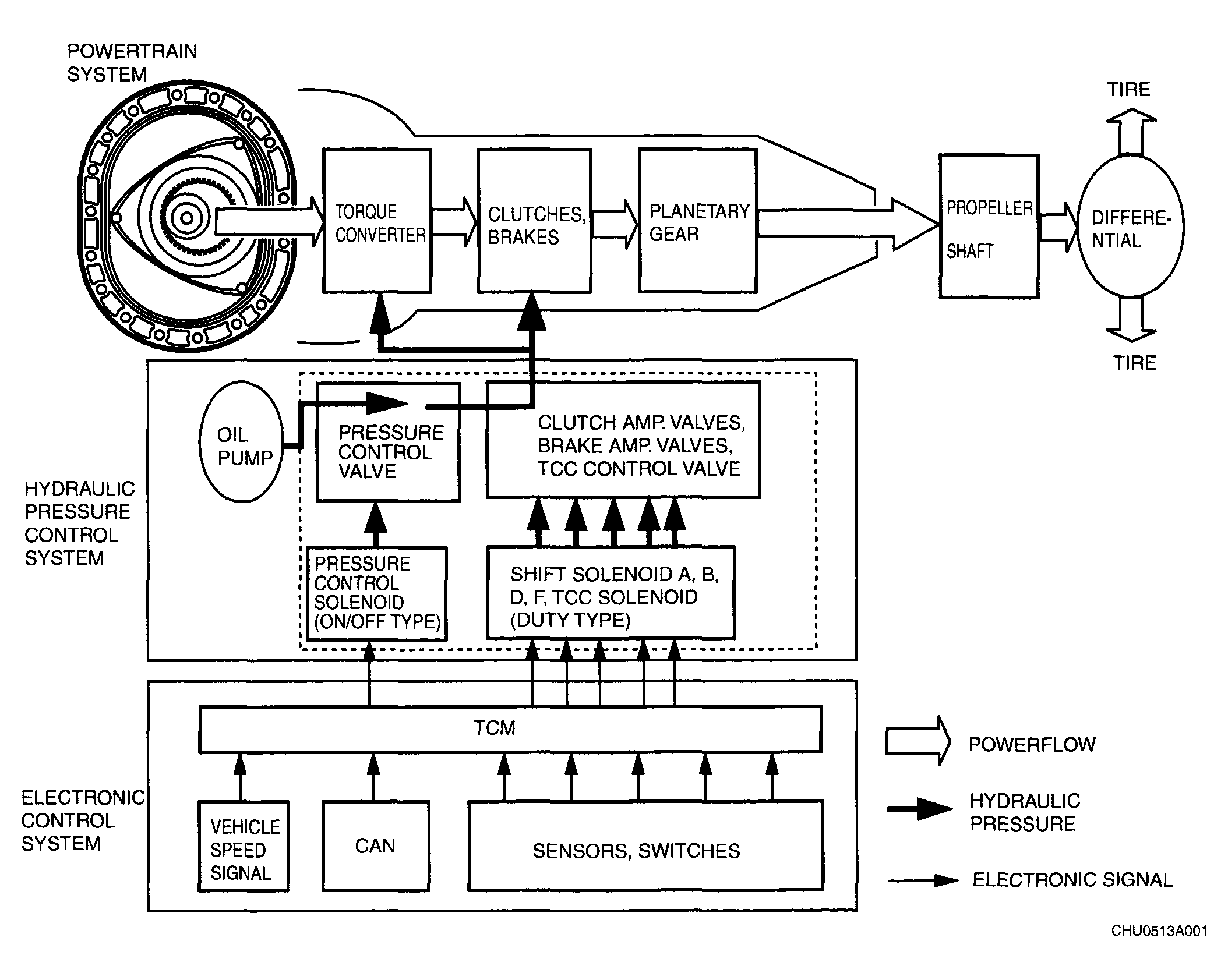

Fig 1: Electronic Control System (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

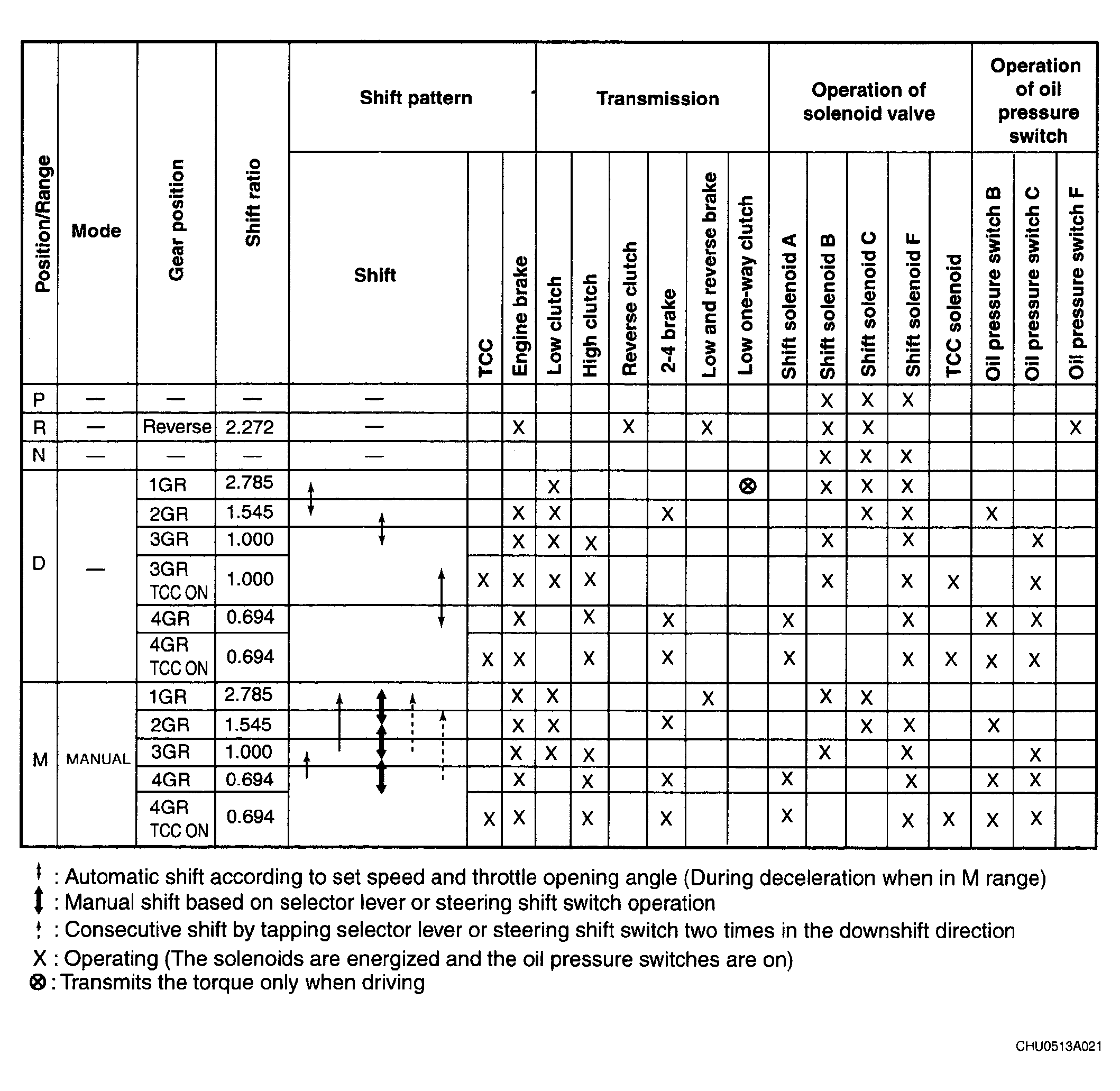

Fig 2: Electronic Control System (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
